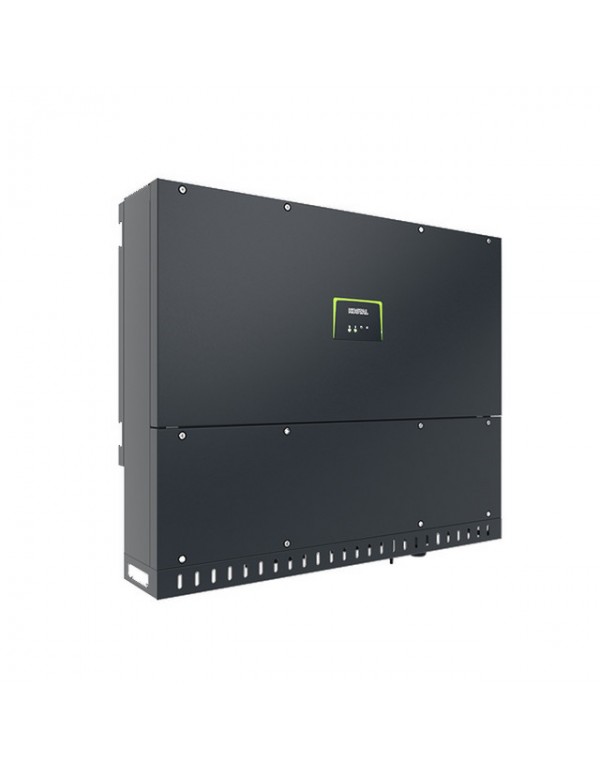

Inverter Solar Kostal Piko Ci 50
32-017951
€3,914.88
Tax included
Inverter Three-phase solar network connection of 50000 W AC with 4 MPPT, an efficiency of 98.1% and a maximum input current of 39 a per input with refrigeration with regulated fan. The inverters Kostal Piko CL stand out for its design, performance, connectivity and easy installation.
The Kostal Peak line includes an integrated communications kit, by which monitoring can be performed through the platform Kostal Solar Portal. It also works with different monitoring systems. Thanks to the kit, the external coupling switches are no longer necessary, which allows the savings of additional costs.
Product guarantee of 5 years.
The inverters family solar Kostal piko cl They stand out for the following characteristics:
- - Maximum energy production thanks to the high certified performance coefficient
- - Reliable use through integrated and certified network services functions
- - Optimized for network sale thanks to the integrated energy management interface
- - Simple and economical CC installation without strings concentration boxes
- - Optimal protection against dust and water for use under extreme outdoor conditions (IP protection type 65)
- - 4-conductor AC connection with cost optimization, the neutral driver is deleted
|
Model |
Piko Cl 50 |
|
Entrance (CC)
|
|
|
Max photovoltaic power (cos φ = 1)
|
75000 W
|
|
Power cc nomina
|
50000 W
|
|
Nominal input voltage |
230 V / 400 V |
|
Max input current (ICCMÁX) by MPPT (A)
|
CC 1-3: 33 CC 4-6: 33 CC 7-8: 22 CC 9-10: 22
|
|
Short circuit current max. (Isc_pv)
|
150 (45/45/30/30) A
|
|
CC current max. by cc connector
|
14 a
|
|
Number of CC Tickets
|
10
|
|
Number of followers PMP UPP. |
4
Departure (AC)
Nominal power, cos φ = 1
50000 W
Apparent power output max., Cos φ
55000 VA
Min / max output voltage
277/520 V
Nominal output current
83 a
Network connection
3N ~, 400V, 50/60 Hz
Network frequency (FME / FMAx)
47.5 / 52 Hz
Power factor adjustment margin
0,8 ... 1 ... 0,8
Power factor with nominal power
1
Wait (consumption during the night)
Efficiency
Max Performance coefficient / european
98.3 / 98.1%
System data
Topology: No Galvanic isolation - No Transformer
Yes
Type of protection according to EN 60529
IP 65
Protection class as of 62109-1
I
Overvoltage protection CC / CA
Type 2
Pollution
4
UV
Yes
Height / width / depth
710/855/285 mm
Weight
75
Principle of refrigeration
Regulated fan
Typical noise level
Room temperature
-25 ... 60 ° C
Mount height max. above sea level
4000 m
Interfaces
Ethernet LAN TCP / IP (RJ45)
2
WLAN for configuration
Yes
WLAN
Optional
Rs485
1
GPRS
Optional
Digital entries
4
Kostal Smart Warranty / Guarantee
5 years
Policies / certification
EN62109-1, EN62109-2, VDE-AR-N 4105: 2018, PO12.2, RD 244: 2019, UNE 217001, EN 50549-1 -2, CEI0-16 2019, CEI0-21 2019> 11,08KW, UK G99 / 1-4 LV, IRR-DC MV 2015, IEC61727 / 62116
- Power (kW)
- + 30
- Phase Type
- Three-phase
- Max Current Input (A)
- 20+
