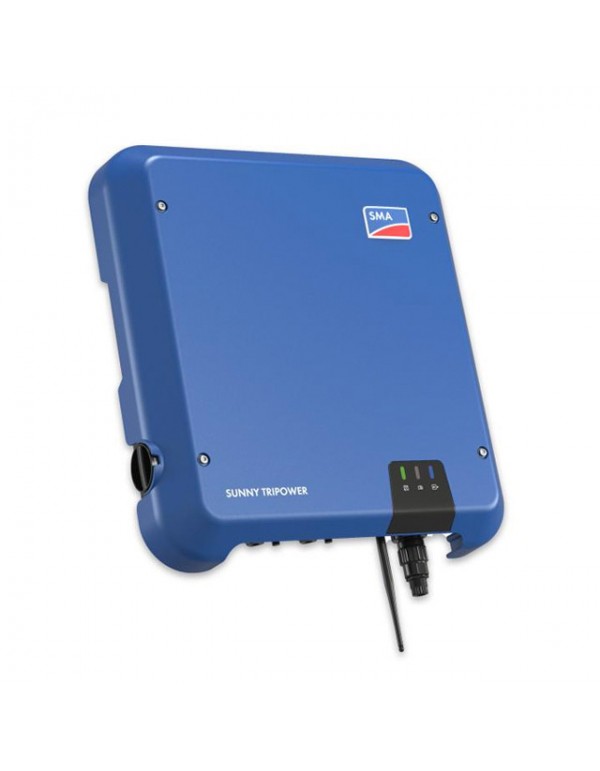

Solar inverter SMA Sunny Tripower STP3.0-3AV-40

Inverter solar SMA Sunny Tripower STP3.0-3AV-40

Name: Inverter solar SMA Sunny Tripower STP3.0-3AV-40
Brand: SMA
SKU: SUNNY TRIPOWER 3.0
Price: 1477.41 EUR
Availability: PreOrder

Reference SUNNY TRIPOWER 3.0

€1,477.41

Tax included

Inverter Three-phase solar for self-consumption or network connection SMA of 3000W AC with 2 MPPT with 96.5% efficiency and maximum 12A input current per inlet with convection cooling. The Sunny Tripower line stands out for its variety of configurations, wide MPPT voltage range and its lightweight and compact structure.

With protection against short circuits, overloads and high temperatures, they will provide a problem-free operation in its three-phase solar installation for many years. Inverter Solar for solar installations with excellent price and quality ratio. The Sunny Tripower does not include transformer, in addition to offering a degree of protection.

Warranty of 5 years of product.

The inverters Sunny Sunny Tripower Solar stand out for the following characteristics:

- Inverter Solar lightweight (17kg) which allows you to manage by one person
- Compact design inverter to occupy less space
- Easy installation with the Plug & Play system
- Intelligent management and energy storage solutions can be added at any time
- It can be combined with the TS4-R components to optimize the module
- Use of excess energy by dynamic limitation of active power
- Shadow Management with Optitra Global Peak or Integrated TS4-R

Curva de eficiencia

Model	Sunny Tripower 3.0
Max power. Ad	6000 W
Voltage Max. Entrance	850 V
Range Voltage MPP	140 V TO 800 V
Voltage Nominal Entrance	580 V
Min. Voltage Entrance / Voltage Initial Entrance	125 V / 150 V
Max current. Entry: Entrance to / input B	12 a / 12 a

Max. Current Entry by String: Input A / Input B

18 a / 18 a

Number of independent entries MPP Input / Strings by entry MPP

2 / A: 1; B: 1

OUTPUT (AC)

Potencai (at 230 V, 50Hz)

3000 W

Max. Apparent power AC

3000 VA

Voltajenominal AC / RANGO

3 / no / PE; 220 V / 380 V

3 / no / PE; 230 V / 400 V

3 / no / PE; 240 V / 415 V

AC Frequency / Range

50 Hz, 60 Hz / -5 Hz to +5 Hz

Nominal frequency / nominal voltage

50 Hz / 45 Hz to 55 Hz

60 Hz / 55 Hz to 65 Hz

Max current. Exit

3 x 4.5

Power factor at nominal power

1 / 0.8 overexcited to 0.8 underexcited

Power factor setting

+/- 0.8

FASHINGSCARING / FASESCONNECTION

3/3

Eficienciamax. Efficiency

98.2% / 96.5%

Protection elements

Internal disconnection point

●

Earthing monitoring / Network monitoring

● / ●

Reverse polarization protection in DC / Short circuit capacity AC / Galvanic isolation

● / ● / -

Residual-polle-sensitive monitoring unit

●

Protection Type (IEC 62103) / SOVERVALEE CATEGORY (based on IEC 60664-1)

I / III

Datosgenerales

Dimensions (width / high / long)

435 mm / 470 mm / 176 mm (17.1 inches / 18.5 inches / 6.9 inches)

Weight

17 kg (37.4 lbs)

Operating temperature range

-25 ° C to + 60 ° C (-13 ° F to + 140 ° F)

Emission, typically

30 dB (a)

Self-consumption (night)

5.0 W

Topology

Transformer

Type of cooling

Convection

Degree of protection (based on IEC 60529)

Ip65

Climate category (based on IEC 60721-3-4)

4k4h

Max value. allowed for relative humidity (without condensing)

100%

Teams

Connection / Connection

Sunclix / AC connector

View on Smartphone, Tablet, Laptop

●

Interface: WLAN, Ethernet / RS485

● / ● / ●

Warranty: 5/10 / 15 years

● / ○ / ○

Certificates and approvals (more available upon request)

AS 4777, C10 / 11, CE, CEI 0-21, DIN EN 62109-1 / IEC 62109-1, DIN EN 62109-2 / IEC 62109-2, EN 50438, G59 / 3, G83 / 2, NEN-EN 50438, ÖVE / ÖNORM E 8001-4-712, PPDS, PPC, RD 1699, SI 4777, TR 3.2.1, UTE C15-712, VDe-AR-N 4105, VDE-0126-1-1, VFR 2014

Certificates and Approvals

DEWA 2016, EN 62116, IEC 61727, IE-EN 50438, NBR 16149, NRS 097-2-1

Availability of SMA Smart Connected in countries

Au, at, be, ch de, es, it, lu, nl, uk

Reference Stp3.0-3av-40
