List of products by brand Kostal
Kostal or also called Kostal Electric is a German manufacturer of electrical components mainly for the automotive industry that entered the manufacture of solar inverters in 2006. The Kostal Group is more than 100 years old (founded in 1912) and has a successful track record that also serves as a reference for its solar inverters.
Kostal in Hagen, Freiburg (Germany) is the German headquarters of the parent company (Kostal Industrie Elektrik) which owns Kostal Solar Inverters (Kostal Solar Electric).
The German solar inverter brand Kostal is a benchmark for quality. With many years of experience in the sector, Kostal not only manufactures the products but also provides comprehensive solutions for the design and monitoring of photovoltaic plants in both the residential and commercial sectors.
Kostal Solar focuses on manufacturing inverters for residential and commercial applications with inverters ranging from low 2kW to medium 60kW. Kostal is an expert in the development of what are called string inverters (as opposed to central inverters). Within its line of inverters we find, depending on the nominal power, single-phase or three-phase inverters.
Kostal's main products are distributed in several families which are hybrid inverters, grid-tie inverters, inverter-chargers and monitoring software for small and medium-sized solar plants.
In the grid-tie solar inverter segment, Kostal has two families, Plenticore Plus and PIKO. These two product lines offer many variants and possibilities as explained below.
Piko MP plus is a 2 MPPT single-phase solar inverter up to 5KW rated power. The Piko MP plus is the simplest family but still has a wide operating voltage range as well as a shadow management system. Additionally, the Piko MP plus series can use an MPPT for the use and connection of batteries.
The PIko IQ family is a series of three-phase inverters with nominal power ranging from 3 to 10 kW. This family is suitable for the use of the "Smart Home" monitoring system with open interfaces, has a display for configuration and commissioning as well as the possibility to monitor the inverter 24 hours a day.
The Penticore Plus family is a series of three-phase solar inverters with 3 MPPT's from 3 to 10kW nominal power. Like the PIKO IQ it is a family suitable for Smart Home use and also allows 24-hour monitoring of the electrical installation.
Additionally we find the Plenticore Plus Bi series which allows three-phase inverters to charge and discharge batteries also up to 10kW nominal power and in three-phase networks.
For larger solar installations, especially for the commercial and industrial segment, Kostal offers the Piko 12-20 three-phase lines up to 20kW nominal power with 2 or up to 3 MPPT's.
The higher power inverters offered by Kostal are part of the PIKO CI line, comprising three-phase power ratings from 30 to 60 kW nominal power. These solar inverters can work at a voltage of 1100V string voltage.
The German brand Kostal is a reference in the field of solar installations, especially for residential, commercial and industrial applications. As a standard bearer of quality and technology, Kostal offers a wide range of products that will ensure the good performance of any solar installation.
Solar inverter Kostal PIKO MP plus 5.0-2
5kW Kostal PICO MP-2 plus single-phase solar inverter for grid connection. This inverter has 2 MPPT\'s (Maximum Power Point Tracker) that can be used to connect solar power or optionally for high voltage batteries. This option is available with the use of KOStal Smart Energy Meter.
This solar inverter has a built-in solar power isolator, IP65 protection which allows it to be installed outdoors. It incorporates the Kostal Solar Portal monitoring system, delivers 99.8% efficiency and Kostal provides a 5 year warranty. Its new technology allows the monitoring of the solar installation 24 hours a day

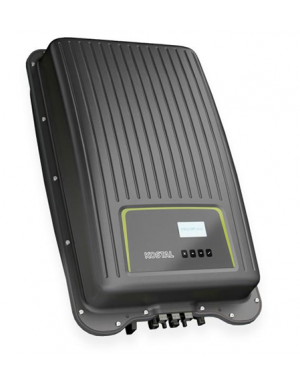

Solar inverter Kostal PIKO MP plus 4.6-2
4.6 kW Kostal PICO MP-2 plus single-phase solar inverter for grid connection. This inverter has 2 MPPT\'s (Maximum Power Point Tracker) that can be used to connect solar power or optionally for high voltage batteries. This option is available with the use of Kostal Smart Energy Meter.
This solar inverter has a built-in solar power isolator, IP65 protection which allows it to be installed outdoors. It incorporates the Kostal Solar Portal monitoring system, delivers 99.8% efficiency and Kostal provides a 5 year warranty. Its new technology allows the monitoring of the solar installation 24 hours a day
Solar inverter Kostal PIKO MP plus 3.6-2
3.6 kW Kostal PICO MP-2 plus single-phase solar inverter for grid connection. This inverter has 2 MPPT\'s (Maximum Power Point Tracker) that can be used to connect solar power or optionally for high voltage batteries. This option is available with the use of KOStal Smart Energy Meter.
This solar inverter has a built-in solar power isolator, IP65 protection which allows it to be installed outdoors. It incorporates the Kostal Solar Portal monitoring system, delivers 99.8% efficiency and Kostal provides a 5 year warranty. Its new technology allows the monitoring of the solar installation 24 hours a day
Solar inverter Kostal PIKO MP plus 3.0-2
3 kW Kostal PICO MP-2 plus single-phase solar inverter for grid connection. This inverter has 2 MPPT\'s (Maximum Power Point Tracker) that can be used to connect solar power or optionally for high voltage batteries. This option is available with the use of KOStal Smart Energy Meter.
This solar inverter has a built-in solar power isolator, IP65 protection which allows it to be installed outdoors. It incorporates the Kostal Solar Portal monitoring system, delivers 99.8% efficiency and Kostal provides a 5 year warranty. Its new technology allows the monitoring of the solar installation 24 hours a day
Solar inverter KOSTAL PIKO CI 60
60000 W AC three-phase solar inverter with 4 MPPT, an efficiency of 98.1% and a maximum input current of 39 A per input with regulated fan cooling. The KOSTAL PIKO CL inverters are distinguished by their design, performance, connectivity and simple installation.
KOSTAL PICO inverters include an integrated communications kit, which enables monitoring via the Kostal Solar Portal platform. It also works with different monitoring systems. Thanks to the kit, external coupling switches are no longer necessary, thus saving additional costs.
5-year warranty.
Solar inverter KOSTAL PIKO CI 50
50000 W AC three-phase solar inverter with 4 MPPT, an efficiency of 98.1% and a maximum input current of 39 A per input with regulated fan cooling. The KOSTAL PIKO CL inverters are distinguished by their design, performance, connectivity and simple installation.
The KOSTAL PICO line includes an integrated communications kit, through which monitoring can be carried out via the Kostal Solar Portal platform. It also works with different monitoring systems. Thanks to the kit, external coupling switches are no longer necessary, thus saving additional costs.
5-year warranty.
Hybrid inverter Kostal Plenticore Plus 8.5
Three-phase hybrid inverter for grid connection of 8500 W AC with 3 MPPT, being able to use one of the inputs for lithium batteries. Efficiency of 96.2% and regulated fan cooling. KOSTAL PIKO CL stands out for its design, performance, connectivity and easy installation.
These inverters are compatible with all types of solar panels. Only high-voltage lithium batteries can be connected. To use a battery as an extra for self-consumption, it is necessary to purchase an activation code separately in order to operate it with this inverter.
Product warranty of 2 years.
Hybrid inverter Kostal Plenticore Plus 7.0
7000 W AC three-phase grid-connected hybrid inverter with 3 MPPT, one of the inputs can be used for lithium batteries. Efficiency of 96.5 % and fan-controlled cooling. The KOSTAL PIKO CL inverters are distinguished by their design, performance, connectivity and simple installation.
The KOSTAL PIKO CL inverters are compatible with all types of solar panels. High-voltage lithium batteries are the only ones that can be connected to the inverter. To use a battery as an extra for self-consumption, an activation code must be purchased separately in order to operate it with this inverter.
Product warranty of 2 years.
Hybrid inverter Kostal Plenticore Plus 5.5
Three-phase hybrid inverter for grid connection of 5500 W AC with 3 MPPT, being able to use one of the inputs for lithium batteries. Efficiency of 96.2% and regulated fan cooling. The KOSTAL PIKO CL stands out for its design, performance, connectivity and easy installation.
Kostal Plenticore inverters are compatible with any type of solar panels. Only high-voltage lithium batteries can be connected. To use a battery as a self-consumption extra, it is necessary to purchase separately an activation code to make it work with this inverter.
Product warranty of 2 years.
Hybrid inverter Kostal Plenticore Plus 4.2
Three-phase hybrid inverter for grid connection of 4200 W AC with 3 MPPT, being able to use one of the inputs for lithium batteries. Efficiency of 96.2% and regulated fan cooling. KOSTAL PIKO CL inverters stand out for their design, performance, connectivity and easy installation.
The Kostal Plenticore inverter line is compatible with any type of solar panels. Only high voltage lithium batteries can be connected. To use a battery as a self-consumption extra, it is necessary to purchase separately an activation code to make it work with this inverter.
2-year product warranty.
Hybrid inverter Kostal Plenticore Plus 10
Three-phase hybrid inverter for grid connection of 10000 W AC with 3 MPPT, being able to use one of the inputs for lithium batteries. With an efficiency of 96.2% and regulated fan cooling. These inverters stand out for their design, performance, connectivity and easy installation.
The KOSTAL Plenticore is compatible with all types of solar panels. Only high-voltage lithium batteries can be connected. To use a battery as an extra for self-consumption, an activation code must be purchased separately in order to operate it with this inverter.
Product warranty of 2 years.
