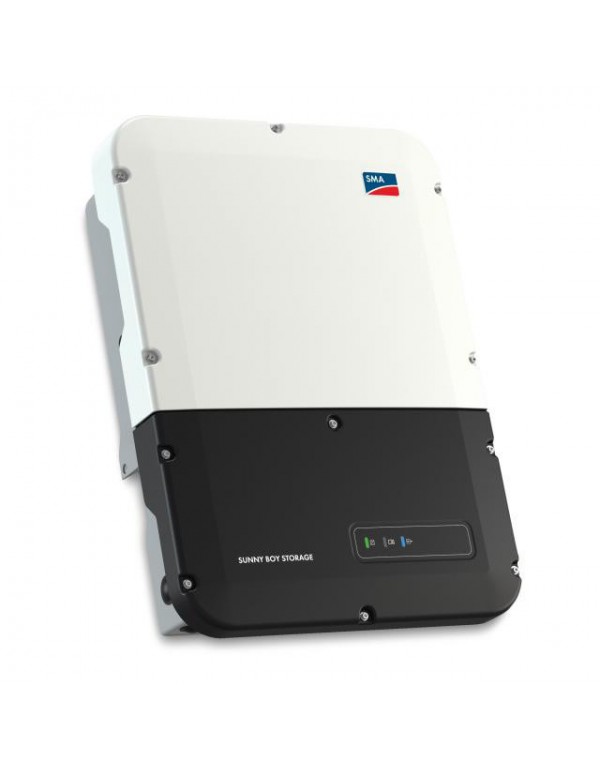

Hybrid Inverter SMA Sunny Boy Storage 3.7

SBS3.7-10
€515.00
Tax included

Inverter Solar three-phase hybrid for network connection SMA of 3680 W AC with 3 MPPT with an efficiency of 97.5% and a maximum input current of 10 A with convection cooling system. This inverter It stands out for its reliable supply, its flexible design and its simple management.

The line of inverters Sunny Boy Storage are protected against short circuits, overloads and high temperatures, will provide trouble-free operation of your three-phase solar installation for many years. Inverter Network connection hybrid for solar installations with excellent value for money. It does not include transformer and offers IP65 protection.

Product guarantee of 5 years.



The line of inverters Sunny Boy Storage is characterized by the following characteristics:

  • - Versatile configuration and scalable photovoltaic design.
  • - Fully automated battery backup function
  • - 10-year warranty
  • - It can be extended at any time by connecting up to three batteries
  • - Various sizes of photovoltaic systems and choice of batteries
  • - Ideal for both readjustment and new facilities
  • - Easy installation
  • - Quick start-up with WebUI via WLAN through a smartphone or a table
  • - Direct integration in Sunny Portal / Sunny Places through the WebConnect function

Model

Sunny Boy Storage 3.7

AC



Nominal power (at 230 V, 50 Hz)

3680 W

Overload capacity (at 25 ° C to max 60 seconds)

4600 W

Nominal AC current output (at 230 V, 50 Hz

16 a

Nominal AC Voltage Range / AC Voltage

230 V / 172.5 V at 264.5 V

Frequency / Range of the AC Network

50 Hz / 45 Hz at 65 Hz

Adjustable displacement power factor

0.8 overexcited 0.8 under-excite

Power phases / connection phases

1/1

Battery DC Entrance



Max voltage cc

500 V

CC voltage range / cc nominal voltage

100 V to 550 V / 360 V

Minimum DC voltage / start cc voltage

100 V / 100 V

CC current max. By entry of cc / number of cc inputs

10 a / 3 x 10 a

Short circuit current max.

At

Battery types

Li-ion

Effectiveness

Max efficiency.

97.5%

Protective devices

CC Reverse Polarity Protection / CA Short Current Capacity

● / ●

Monitoring of ground faults / network monitoring

● / ●

Residual current monitoring unit sensitive to all poles

●

Protection class / overvoltage category

I / fourth

General data

Dimensions (w / h / d)

535 mm / 730 mm / 198 mm (21.1 inches / 28.5 inches / 7.8 inches)

Dimensions incl. Packaging (w / h / d)

600 mm / 800 mm / 300 mm (23.6 inches / 31.5 inches / 11.8 inches

Weight / Weight incl. packaging

26 kg (57 lbs) / 30 kg (66 lbs)

Operating temperature range in battery operation

-25 ° C A + 60 ° C (-13 ° F A + 140 ° F)

Installation height max. over MSL

3000 meters

Emission of noise, typical (1 m away)

39 dB (a)

Self-consumption Standby / self-consumption without load

Topology

Transformer

Cooling method

Convection

Protection against the entrance

Ip65

Climate category

4k4h

Maximum permissible value for relative humidity

100%

Characteristics / function

Emergency supply feature of safe power source emergency

● (max 16 A, manual switch activated)

Interfaces

Ethernet / WLAN / CAN / RS485

Communication / Protocols

Modbus (SMA / SunSpec) / WebConnect / Modbus RTU (RS485)

Communication of the battery

Bus

Screen / Web user interface

Integrated Web Server / Through Smart Phone, Tablet, Laptop

Remote monitoring

Sunny Portal through WebConnect

Warranty

5 years / 10 years with registration in Sunny Portal / Sunny Places

Certificates, Approvals and Declarations of the Manufacturer

www.SMA-Solar.com

Accessories

Automatic transfer switch for battery backup system

Available in external suppliers

Sunny Home Manager / Home Manager 2.0

Compatible

Power meter SMA

Compatible

Designation of type

Sbs3.7-10
Power (kW)
3 - 5.9
Phase Type
Three-phase
Max Current Input (A)
10-10.99
Compatibility list
BYD HVS / HVM
LG RESU
