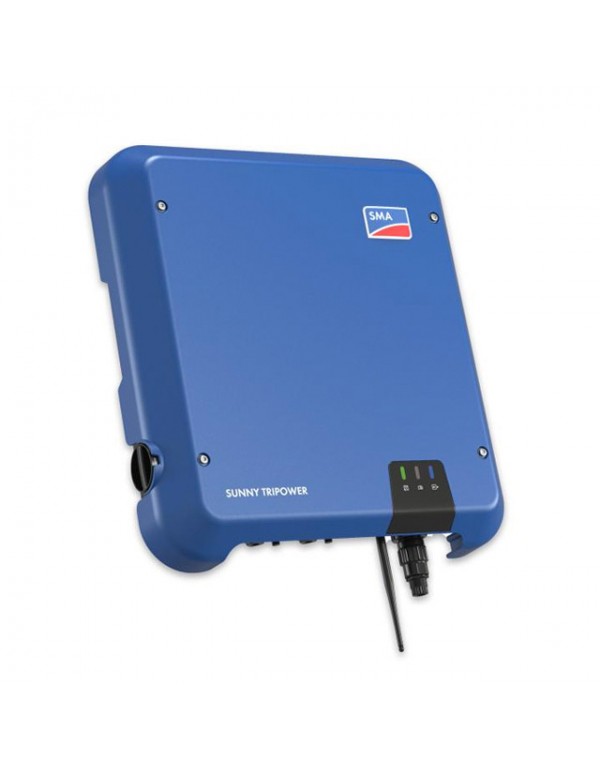

Inverter solar SMA Sunny Tripower Stp4.0-3AV-40
SUNNY TRIPOWER 4.0
€1,541.54
Tax included
Inverter Three-phase solar for self-consumption or network connection SMA From 4000W AC with 2 MPPT with an efficiency of 97.1% and a maximum input current of 12A per inlet with convection cooling. The Sunny Tripower line stands out for its variety of configurations, its wide range of MPPT voltage and its lightweight and compact structure.
This product is resistant to short circuits, overloads and high temperatures, and will provide trouble-free operation of its three-phase solar installation for many years. Inverter Network connection for solar installations with excellent value for money. It does not include transformer and offers IP65 protection.
Product guarantee of 5 years.
The inverters Sunny Sunny Tripower Solar stand out for the following characteristics:
- - Inverter Solar lightweight (17kg) which allows you to manage by one person
- - Compact design inverter to occupy less space
- - Easy installation with the Plug & Play system
- - Intelligent management and energy storage solutions can be added at any time
- - It can be combined with the TS4-R components to optimize the module
- - Use of excess energy by dynamic limitation of active power
- - Shadow Management with Optitra Global Peak or Integrated TS4-R
|
Model |
Sunny Tripower 4.0 |
|
Max power. Ad |
8000 W |
|
Voltage Max. Entrance |
850 V |
|
Range Voltage MPP
|
175V to 800 V
|
|
Voltage Nominal Entrance
|
580 V
|
|
Min. Voltage Entrance / Voltage Initial Entrance
|
125 V / 150 V
|
|
Max current. Entry: Entrance to / input B |
12 a / 12 a |
|
Max. Current Entry by String: Input A / Input B |
18 a / 18 a
Number of independent entries MPP Input / Strings by entry MPP
2 / A: 1; B: 1
OUTPUT (AC)
Power (at 230 V, 50Hz)
4000 W
Max. Apparent power AC
4000 VA
Nominal Voltage AC / Range
3 / no / PE; 220 V / 380 V
3 / no / PE; 230 V / 400 V
3 / no / PE; 240 V / 415 V
AC Frequency / Range
50 Hz, 60 Hz / -5 Hz to +5 Hz
Nominal frequency / nominal voltage
50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Max current. Exit
3 x 5.8 A
Power factor at nominal power
1
Power factor setting
+/- 0.8
FASHINGSCARING / FASESCONNECTION
3/3
Eficienciamax. Efficiency
98.2% / 97.1%
Protection elements
Internal disconnection point
●
Earthing monitoring / Network monitoring
● / ●
Reverse polarization protection in DC / Short circuit capacity AC / Galvanic isolation
● / ● / -
Residual-polle-sensitive monitoring unit
●
Protection Type (IEC 62103) / SOVERVALEE CATEGORY (based on IEC 60664-1)
I / III
Datosgenerales
Dimensions (width / high / long)
435 mm / 470 mm / 176 mm (17.1 inches / 18.5 inches / 6.9 inches)
Weight
17 kg (37.4 lbs)
Operating temperature range
-25 ° C to + 60 ° C (-13 ° F to + 140 ° F)
Emission, typically
30 dB (a)
Self-consumption (night)
5.0 W
Topology
Transformer
Type of cooling
Convection
Degree of protection (based on IEC 60529)
Ip65
Climate category (based on IEC 60721-3-4)
4k4h
Max value. allowed for relative humidity (without condensing)
100%
Teams
Connection / Connection
Sunclix / AC connector
View on Smartphone, Tablet, Laptop
●
Interface: WLAN, Ethernet / RS485
● / ● / ●
Warranty: 5/10 / 15 years
● / ○ / ○
Certificates and approvals (more available upon request)
AS 4777, C10 / 11, CE, CEI 0-21, DIN EN 62109-1 / IEC 62109-1, DIN EN 62109-2 / IEC 62109-2, EN 50438, G59 / 3, G83 / 2, NEN-EN 50438, ÖVE / ÖNORM E 8001-4-712, PPDS, PPC, RD 1699, SI 4777, TR 3.2.1, UTE C15-712, VDe-AR-N 4105, VDE-0126-1-1, VFR 2014
Certificates and Approvals
DEWA 2016, EN 62116, IEC 61727, IE-EN 50438, NBR 16149, NRS 097-2-1
Availability of SMA Smart Connected in countries
Au, at, be, ch de, es, it, lu, nl, uk
Reference Stp4.0-3av-40
- Power (kW)
- 3 - 5.9
- Phase Type
- Three-phase
- Max Current Input (A)
- 12 - 12.99
