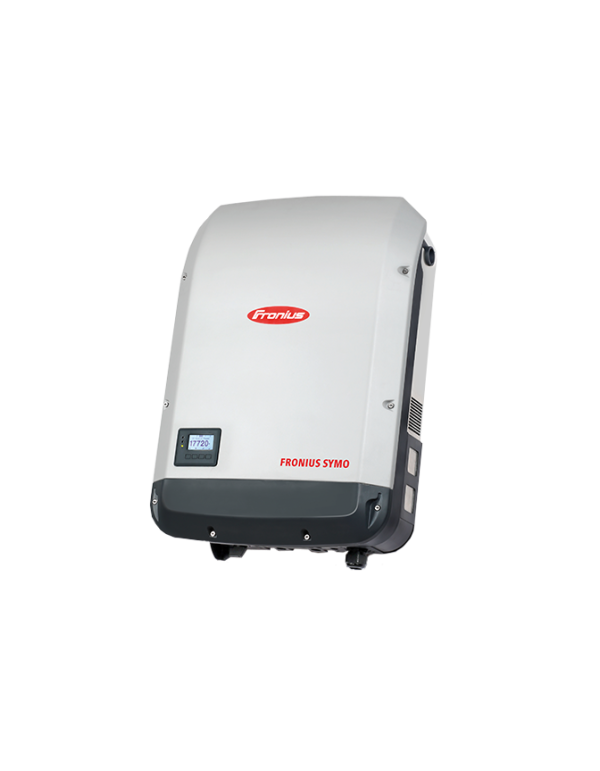

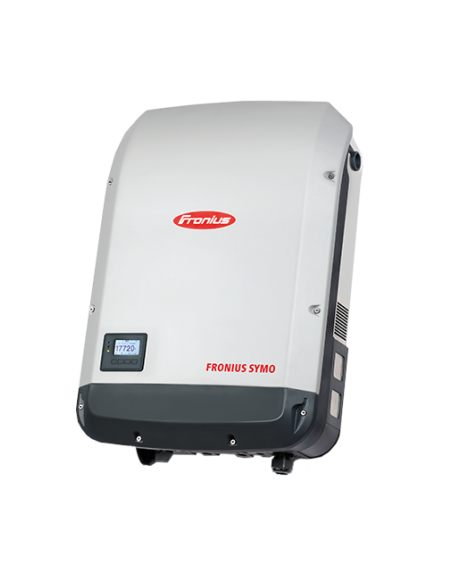

Inverter Solar Fronius Symo 17.5KW -3-M Full | Inverter Three-phase commercial photovoltaic

Fronius Symo 17.5kw Full: Industrial performance and absolute control of your solar generation

Maximize the return on investment in commercial photovoltaic installations of 17,5kw Requires a inverter Intelligent supporting high current intensities and offers high precision data. The inverter network Fronius Symo 17.5-3-M Full It meets outright with this purpose: synchronize with total stability the continuous energy of your solar With the three-phase business network, assimilating demand peaks and immediately reducing the fixed costs of your electricity bill.

Advanced communications and native integration on Solar.Web

The great competitive advantage of the inverters solar range Full of Fronius It is its integral connectivity ready to use. Thanks to the integrated Datamanager card within the chassis, the team exports in real time all energy flows to the portal Fronius Solar.web. This allows you to monitor from the computer or smartphone the live performance of your solar panels, Record historical consumption and configure automatic technical alerts, facilitating the audit of the photovoltaic plant without the need to acquire external communication gateways.

Snapinverter architecture and asymmetric double MPPT

On Tienda Solar We select components that streamline maintenance and assembly work. With modular technology Snapinverter, Electrical wiring and the fixing wall base are permanently installed to the wall independently of the power stage. If any technical assistance is required in the future, the upper power module is extracted with total ease without the need to disconnect the cables from the photovoltaic plates. Additionally, it has 2 Asymmetric MPPT Followers With a high current capacity, ideal for processing strings in industrial covers with different orientations or high-power modules. Before partial shades, your algorithm Dynamic Peak Manager constantly locate the maximum installation efficiency point.

Technical specifications (Symo 17.5-3-M Full model):

• Nominal output power (AC): 17500 W (17.5 kW)

• Maximum input power (DC): 26300 W (Excellent capacity for oversizing solar)

• Number of MPPT followers: 2

• Start voltage (DC): 200 V

• Nominal input voltage (DC): 595 V

• Maximum input voltage (DC): 1000 V (Note: Optimized for industrial strings up to 1000V)

• Maximum input current (MPPT1 / MPPT2): 33.0 A / 27.0 A (designed for high input currents)

• Short circuit current (MPPT1 / MPPT2): 49.5 A / 40.5 A

• Nominal output current (AC): 25.4 to

• Connection to Network: Three-phase (380V / 400V)

• Degree of environmental protection: IP66 / IP65 certification (maximum protection against dust and powerful water jets)

• Serial connectivity: DataManager, WLAN (WiFi), Ethernet, Modbus TCP / RTU and interfaces Fronius Solar API (JSON)

• Thermal management: Intelligent forced ventilation (Active Cooling)

• Net package of the package: 43.4 kg

Frequently Asked Questions (FAQ)

1. What constructive difference does the "Full" range have in front of the "light" in this model of 17.5kw? The power hardware and integrated electrical protections are identical in both versions. The difference is that the model Full It includes the factory DataManager network card to link the Internet equipment via WiFi or Ethernet directly. It does not require additional accessories to monitor the plant and see the performance graphs.
2. Can I connect lithium accumulators to this inverter Fronius Symo Comercial? Not directly. The conventional Symo series belongs to the category of inverters solar of connection to pure network. They do not have a dedicated charge entrance to lithium batteries. If you need a three-phase commercial system with energy storage, contact our technical service Tienda Solar To assess the ideal solution.
3. How does the zero injection system act on this high-power equipment? In case your solar are producing more electricity from which you consume your industry or trade, the inverter instantly reduces its output power in milliseconds. In this way, it is guaranteed that there is no remaining energy to the electrical network (requires the combined installation of a vatimeter Fronius Smart Meter).
4. Why is Active Cooling critical in a inverter Commercial 17500W? By continuously transforming high currents to generate 17.5KW, the electronic components free heat. The system Active Cooling actively extract that temperature by an intelligent forced ventilation circuit, which avoids performance losses by overheating (derating) And lengthen the durability of the whole block inverter.
