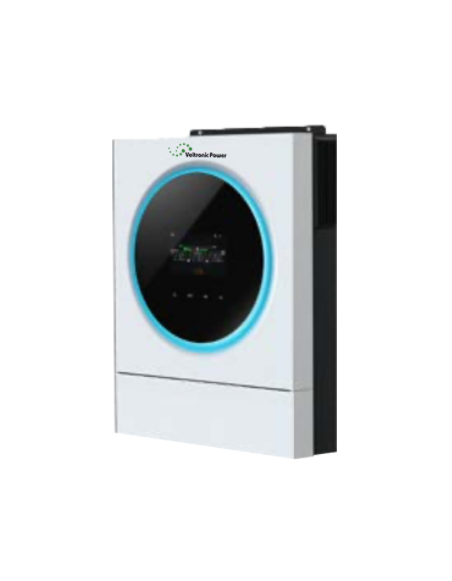

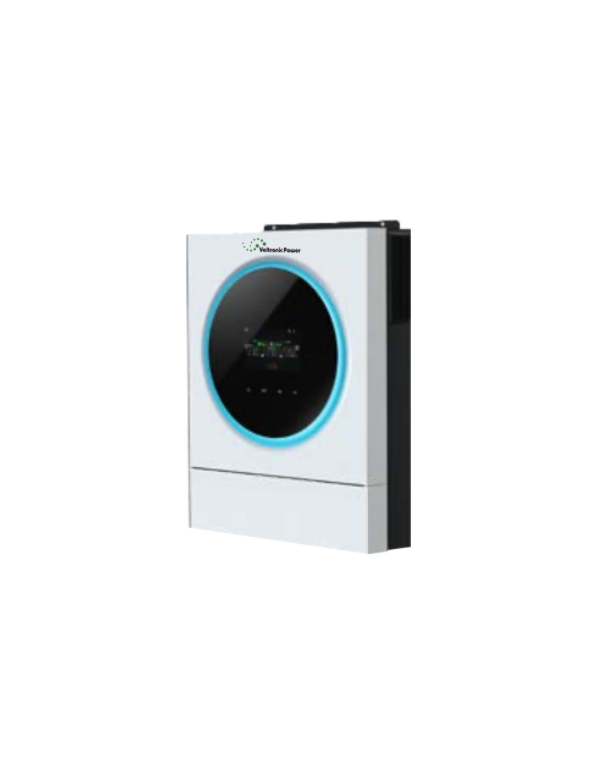

Inverter Solar charger Axpert VM IV 3600-24V
Inverter Solar charger Axpert VM IV 3600-24V

Inverter Solar charger Axpert VM IV 3600-24V

AXVMIV360024
€430.76
Tax included

Inverter Solar charger for 2600W isolated installations at 24V single-phase to be able to connect the corresponding voltage solar battery bench (24V). The AXPERT VM IV 3.6K has a single MPPT (maximum power tracking point) and provides a yield of 93.0%. The maximum solar regulator input current is 120A.

The AXPERT VM IV3600W 24V integrates the MPPT loading controller and can be configured with up to 4,000 WP. This model unlike the Axpert 3K does have the start-up feature of generators for hybrid solar installations.

This inverter 3,6KW Axpert VM IV (KVA) charger offers a guarantee of 2 years of product and CE certificate.



This model incorporates a 4,3 ", WiFi, USB color touch screen, stores the incidents, system to maximize the useful life of batteries and an anti-dust kit.

The inverter solar Axpert VM IV 3600W-24V as the rest of the family stands out in addition to its price for the following characteristics:

  • - Inverter isolated pure sine wave wave of great efficiency
  • - Output power factor of 1 which involve 3.6kw of real power
  • - MPPT loading regulator integrated in the inverter solar
  • - Wide range of input voltage selection of the inverter solar 90-280V)
  • - Wide range of selection of entry current of the inverter solar for battery charge up to 120A
  • - Configurable AC / Solar Entrance through the LCD screen
  • - In this case the AXPERT VM IV 3600-24V has auto-land for diesel generator or hybrid installation
  • - Overvoltage and short circuit protections in the inverter solar
  • - Option for coupling remote control of the inverter charger

The inverter- Axpert VM IV 3600W-24V Farger is a very economical option for demanding clients who want to own a reliable and trouble-free quality product in the operation of its installation.  For any questions, consult with us in [email protected]

Technical characteristics

Model

Axpert VM IV 3600W-24V

Nominal power

3600va / 3600w

Entrance voltage

230vac

Assigned network frequency / frequency range

50hz / 60hz

Output voltage AC

230VAC +/- 5%

Maximum power peak transient

7200va

Efficiency peak

93%

Waveform

Pure sine

Battery tension

24vdc

Load floating tension

27vdc

Overload protection

33vdc

Maximum power Solar PV

4000wp

MPTT range in operating voltage

120VDC - 450VDC

Maximum tension of circuit open by String

500vdc

Maximum solar current

120a

Maximum AC current

100a
Power (kW)
3 - 5.9
Phase Type
Single phase
Max Current Input (A)
18 - 18.99
