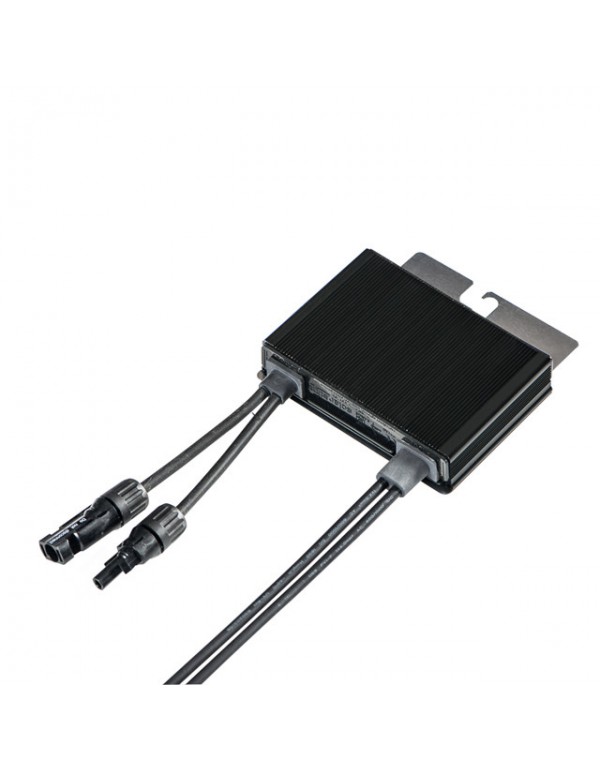

SolarEdge Power Optimizer P601
SolarEdge Power Optimizer P601

Power optimizer SolarEdge P601 600W modules up to 14a

P601-4RM4MBN
€84.70
Tax included

The power optimizer SolarEdge P601 is an advanced CC / DC converter of 600w of nominal entry feed, designed specifically to be integrated into residential facilities with inverters SolarEdge. This device transforms the traditional solar panels In smart modules by individualized monitoring of the maximum power point (MPPT), operating in a range of 12.5-65 VDC and admitting a maximum current of short circuit (ISC) ADC, which guarantees total compatibility with bifacial and high power modules. Thanks to its record efficiency of the 99.5%, the equipment mitigates the losses due to mismatch or partial shades, monitors the performance of each real-time panel to optimize maintenance costs and has the SAFEDC security system for disconnection to 1 VDC In standby, all backed by a factory warranty 25 years.



SolarEdge P601: Intelligent photovoltaic performance and maximum productivity per module

The architecture of traditional systems can see its overall performance penalized due to the "bottleneck" effect, where the module with less production (due to dirt, degradation or shadows) drags the rest of the series. The power optimizer SolarEdge P601 It completely eliminates this limitation. When installed individually in each panel, this CC / DC converter performs a continuous tracking of the MPPT at the module level, ensuring that each element of the solar field always work at its maximum capacity independently. This intelligent management allows to obtain up to a 25% more energy Compared with conventional systems, maximizing the return on the investment of your installation of own consumption.

Mitigation of losses and advanced compatibility with bifacial modules

The P601 model has been designed with state-of-the-art technical specifications that make it suitable for the most demanding photovoltaic modules of the current residential market. With a capacity to manage short circuit currents ADC and an absolute maximum entry voltage 65 VDC, it offers excellent native compatibility with modern bifaciales. When processing energy individually, the optimizer neutralizes the losses associated with manufacturing tolerances, asymmetric aging or partial shading caused by chimneys, trees or clouds, maintaining the weighted efficiency of the system in an extraordinary 98.6%.

Security Avant-garde SAFEDC and advanced monitoring in the cloud

Beyond pure production, the ecosystem SolarEdge It stands out for its active protection protocols. The P601 optimizer incorporates the SAFEDC security function, an automatic mechanism that immediately reduces the output voltage at a secure value of 1 VDC per optimizer as long as the inverter solar It goes off or disconnected from the network. This standard effectively protects installers during assembly and emergency equipment in case of intervention. In addition, each unit constantly transmits production data to the supervision platform of SolarEdge. This allows a continuous remote diagnosis, simplifying technical maintenance tasks without the need to check One by one on the roof.

Featured technical characteristics:

  • Nominal input DC power: 600 W for optimal adaptation to High-power

  • ABSOLUTE MAXT ENTRY VOLTAGE (VOC): Until 65 VDC in open circuit.

  • MPPT operation range: Efficient work spectrum between 12.5 VDC and 65 VDC.

  • Maximum short circuit current (ISC): Admits a limit of ADC of the photovoltaic module.

  • Maximum efficiency of the converter: Maximum performance 99.5% with a weighted efficiency of the 98.6%.

  • Maximum output values in operation: Upstream ADC and maximum tension of 80 VDC.

  • Safety voltage on hold (SAFEDC): Automatic reduction 1 VDC when the inverter It is off.

  • Maximum allowed system tension: Isolation and design prepared for chains up 1000 VDC.

  • Design and physical dimensions: Compact dimensions of 129 x 153 x 52 mm with a weight of 1064 g (Cables included).

  • Connectors and factory wiring: Equipped with standard terminals Mc4 and entry cables 0.16 / 0.52 m.

  • Manufacturer's Guarantee: Extended Premium Coverage 25 years of official guarantee.

Frequently asked questions (FAQ):

1. Can the optimizer be used SolarEdge P601 with any inverter of the market?

No. The optimizers of the P series SolarEdge They are designed and developed exclusively to work in combination with a inverter solar brand SolarEdge. Its communication and voltage control technology requires this native integration to function.

2. What is the security output voltage of 1 VDC and when it is activated?

It is an active safety measure called SAFEDC. When the inverter It is switched off, the general power supply is switched off or interrupted, the optimizer automatically isolates the panel and reduces the output voltage to Solo 1 VDC. This allows a chain of, for example, 10 Lower a secure voltage of 10 VDC in total during maintenance or emergencies.

3. How does this optimizer help if I have shadow problems on my roof?

In a traditional installation, if a shadow affects a plate, the production of the entire row decreases. When installing the P601, each panel works with its own MPPT follower. The shadow will only affect the photovoltaic performance of the covered module, while the rest of the solar panels of the series will continue to yield 100% of its capacity.

4. Is the P601 model compatible with Solars of bifacial type?

Yes, it is completely compatible. Thanks to its ability to manage a maximum short circuit current ADC and tolerate a nominal entry power of 600 W, the P601 absorbs without problems the current increases produced by the rear gain of the modern bifacial modules.

5. How is the optimizer installed on the solar panel structure?

Its physical design is designed to speed up work on deck. It has a quick installation system using a single screw, allowing you to fix it directly to the panel frame or aluminum structure profile before making type connections Mc4.
