Power optimizer SolarEdge P730 | Double converter for commercial projects

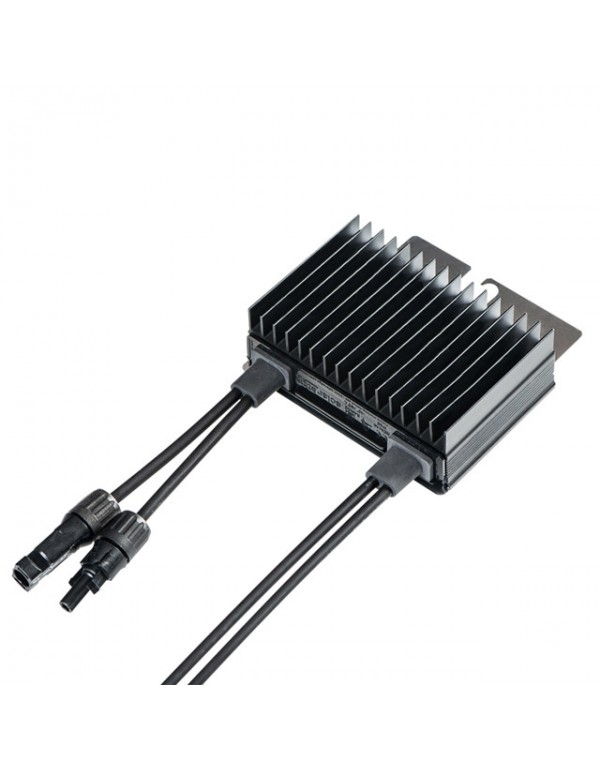

SolarEdge P730: Advanced optimization at the module level to Inverters Tin-phase

The overall yield of a row of Solares Commercial is often limited by the performance of the weakest panel of the circuit. The double optimizer SolarEdge P730 It solves this problem from root, allowing the connection of Up to two photovoltaic modules by optimizer (As long as the sum of your powers and voltages do not exceed the limits of the team). By independence production, this device guarantees that the physical imbalances of the cover or passing clouds do not penalize the energy generation of the solar plant.

Maximum loss mitigation and supervision in the cloud

On Tienda Solar We select technological solutions oriented to the financial performance of your installation. The SolarEdge P730 works with a weighted efficiency of 98.6%, ensuring that almost all the energy captured by the cells reaches the inverter Center. It is fully compatible with a wide variety of panel technologies, including monocrystalline silicon (C-Si), fine layers, high current modules and modern technologies of Bifacial, taking full advantage of the clean energy generated by the soil albedo.

Additionally, each unit acts as an intelligent sensor that supervises in real time the operating parameters of the assigned. These data are automatically transmitted to the cloud monitoring platform of SolarEdge, which simplifies the predictive maintenance tasks and reduces operating costs (OPEX) by allowing you to locate accurate precision failures without the need to review the Panel Panel structure.

Simplified installation and integrated SAFEDC security

The physical design of the P730 optimizer has been designed to reduce labor times on the roof. Its anchoring system with a single screw and optimized cable management facilitate agile assembly on the aluminum profile of the structure.

Active safety is another of the pillars of this model. The equipment has advanced sensors capable of detecting abnormal thermal behaviors in photovoltaic connectors, preventing risks of electric arcs before they become a breakdown. In addition, it has the function Safedc, a mechanism that automatically reduces the output voltage at a secure level of 1 volt per optimizer in case the inverter The main network is turned off or disconnected. This feature shields the safety of the installer staff during assembly and protects emergency equipment in case of incidents.

Technical specifications (P730 model):

Input parameters (DC current):

• Nominal input DC power: 730 W

• Maximum absolute entrance voltage (VOC at minimum temperature): 125 VDC

• Operating range of the MPPT regulator: 8 - 60 VDC

• Maximum short circuit current (ISC) per module Connected: 11 ADC

Output parameters (during operation):

• Maximum output current: ADC

• Maximum output voltage: 80 VDC

Waiting mode (Inverter Off or disconnected):

• Safety output voltage (SAFEDC) per optimizer: 1 VDC (with a tolerance of more or less 0.1 VDC)

Installation and compatibility specifications:

• Inverters SolarEdge Compatible: Three-phase models SE16K onwards (not suitable for inverters Small residential)

• Maximum allowed voltage of the system: 1000 VDC

• Maximum efficiency of the converter: 99,5%

• European weighted efficiency: 98,6%

• Dimensions of the unit: 129 x 153 x 49.5 mm

• Net weight (included cables): 933 grams

• Type of input and output connectors: MC4 Original

• Degree of environmental protection: IP68 hermetic certification and NEMA6P

Frequently Asked Questions (FAQ)

1. What does it mean that the SolarEdge P730 is a double optimizer? It means that a single device has the necessary connections to manage and optimize the production of two Solar simultaneously. This reduces the number of optimizers needed in large covers, drastically complaining the total cost of components and accelerating installation times.

2. Can I use this optimizer with a inverter Singaphase residential? No. For its design parameters and output voltages, the P730 model is developed exclusively to run coupled to the inverters Trade three-phase SolarEdge Of great power, specifically from the SE16K model onwards. To inverters Domestic or single-phase, the optimizers of the corresponding residential series should be used.

3. How does the SAFEDC function protect the technicians working on the cover? In a conventional photovoltaic installation, although the inverter be turned off, Solares continue to generate dangerous tensions in continuous current if there is sun. With SAFEDC, at the time the alternating current is cut or the inverter, Each optimizer reduces its output to only 1V. In this way, a string of 20 It will happen to have dangerous voltages of 800V to a fully secure 20V voltage.

4. What maintenance do these equipment be installed under the panel require? The optimizers SolarEdge P730 does not require direct mechanical maintenance, since its envelope is completely sealed with IP68 protection against rain, dust and moisture. The follow-up of its status is done remotely through the web portal. If a device suffered an anomaly, the system will emit an automatic alert indicating the affected module for replacement under the terms of your 25-year warranty.
