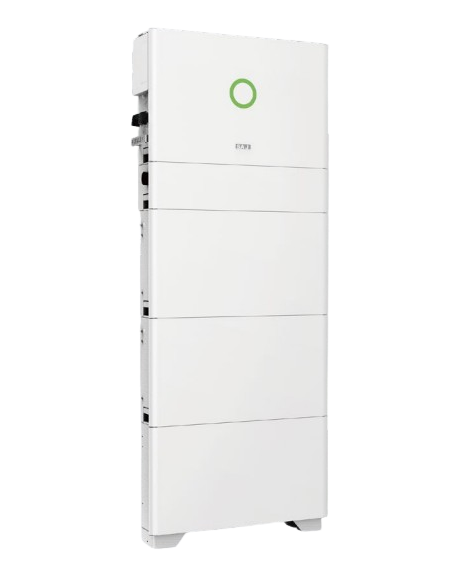

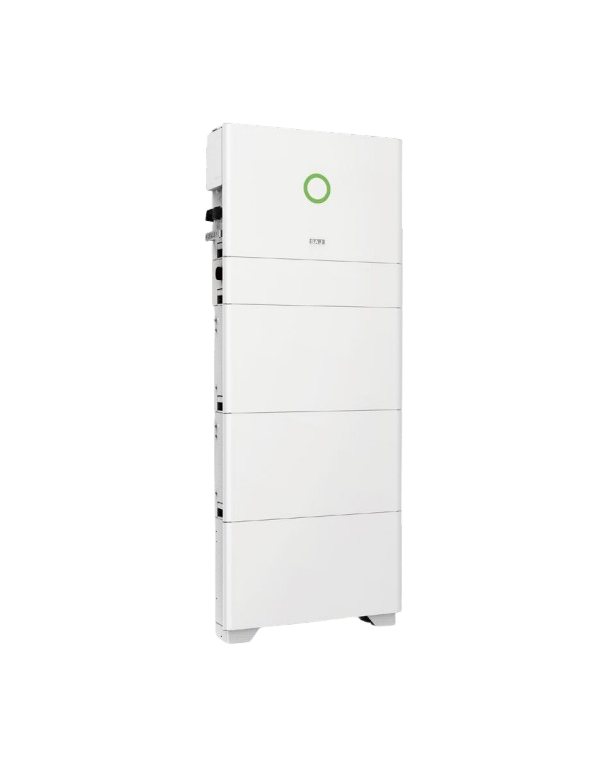

Hybrid Inverter Three-phase SAJ 12kw HS3-12K-T2 | Pack AIO3 + Meter + CT

SAJ HS3-12K-T2 AIO3: Supreme Power of 12KW, Instant Backup UPS

Provide large residences with high levels of consumption or small businesses equipped with three-phase networks requires a robust, agile management center and with capacity to neutralize consumption differences between lines. The hybrid Inverter networking SAJ 12KW Three-phase HS3-12K-T2 it is consolidated as the flagship of the HS3 series, revolutionizing the market thanks to a clean architecture that completely eliminates the disorder of cables on the wall and increases the reliability of storage.

Double MPPT 16A, Asymmetric Rolling and Expandable Modular Storage

The direct current configuration of this inverter has 2 independent MPPT followers. This engineering is suitable for designing solar plaques strings distributed in covers with two orientations (as east and west slopes) or prone to partial shades throughout the day, ensuring that a channel maintains its maximum performance without see yourself penalized by the other. When tolerate a maximum entrance current of 16A per chain, it is optimally coupled to photovoltaic of last generation. Being a team from our premium range of inverters hybrid, The user has an optimized advanced bidirectional control electronics to interact effectively with high voltage accumulators.

The pack incorporates the ecosystem from the factory AIO3 along with its meter (vatimeter) and three-phase current transformers (CT). These components monitor energy flows in real time with the public network, allowing to activate effective zero injection strategies or surplus control. Also, it protrudes for its ability to support a three-phase load imbalance of 100%, which allows you to inject energy asymmetrically only in the phase that registers the greatest instantaneous demand of the property. Your stackable modular design allows you to attach the storage blocks directly below inverter no visible external interconnection cables; You can configure the ability of your system by acquiring compatible modules in our section of lithium batteriesHigh voltage.

Energy continuity UPS ante other blackouts and silent heat dissipation

The safety of the power supply is fully armored with the SAJ Hs3-12k-t2. Before an unforeseen cutting of the external distributor network, the immediately active equipment backUp with function SAI/UPS automatic switching less than 10 milliseconds. In this way, the three-phase and single-phase critical charges continue to operate with total normality using the combined energy of the modular plates and batteries. Physically, its elegant chassis has degree of protection IP65 and employs an advanced system of natural Convection Refrigeration. When you completely dispense with mechanical fans, it offers a functioning fully silent free motor noise. To guarantee an indeformable anchor against the wind of your modules in industrial or residential covers, we suggest you use our structures for of reinforced structural aluminum.

Technical specifications (model SAJ HS3-12K-T2 three-phase):

Continuous current input parameters (DC - photovoltaic):

• Maximum recommended photovoltaic power: 18,000 WP (150% CC oversizing)

• Maximum System Tension DC: 1,000 V

• Voltage range of the MPPT: 180 V - 850 V

• Nominal input voltage CC: 600 V

• Investment boot voltage: 180 V

• Maximum cc input current: 16 a / 16 (For each MPPT follower)

• Number of independent MPPT followers: 2

Parameters of the battery (modular accumulation port):

• Type of compatible battery: Lithium modules SAJ high voltage (stackable design)

• Battery voltage range: 180 V - 550 V

• Maximum loading / unloading current: 30 a / 30 a

Alternating current output parameters (CA - Network Connection):

• Nominal output power to the network: 12,000 W

• Maximum apparent power of output: 13,200 VA

• Maximum output current CA: 20

• Nominal Network Supply Supported: 3L + N + PE, 220 / 380V, 230 / 400V, 240 / 415V

• Maximum efficiency Inverter: 98,0%

Emergency output parameters (CA - Function UPS Back-up):

• Nominal backup power: 12,000 W

• Maximum peak apparent power: 15,000 VA (60 seconds)

• Automatic switching time:

Frequently Asked Questions (FAQ)

1. What advantages does the stackable All-In-One design provide SAJ Hs3-12k-t2? Unlike traditional hybrid facilities that require fixing the inverter and the batteries separately on the wall, the HS3 series offers a vertical integrated solution. The inverter 12KW is located up and the compatible battery blocks are stacked just below, fitting their connectors internally. This eliminates external DC cables to the view, saves space and provides a clean and premium residential aesthetic.
2. What are the entire three-phase current and current transformers (ct)? They are the devices responsible for measuring the meaning and the magnitude of the current in the three phases of the general rush point. Thanks to this instant information, the inverter SAJ HS3 knows with total precision how much photovoltaic energy to allocate instantaneous consumption, however derive to modular batteries, or how to run a strict zero injection to not pour anything to the external network.
3. What benefit does it provide that this inverter support a phase imbalance of 100%? In the vast majority of three-phase facilities, loads are not distributed equitably between the lines. When supporting a 100% imbalance, the inverter SAJ HS3 can inject energy asymmetrically (for example, by sending the bulk of its production to phase L1 because there is a heavy equipment or pump on, while keeping minimum in L2 and L3), maximizing real photovoltaic use.
4. How does the inverter if there is a power supply cut in my area? The team automatically switches to its backup output in a time less than 10 milliseconds thanks to its function UPS. In this way, the inverter continue uninterruptedly feeding the critical lines of the property combining the energy of your solar with the stored in your modular batteries.
