Hybrid Inverter Single-phase SAJ 5KW HS2-5K-S2

SAJ 5KW HS2-5K-S2: Solvewater Solution, Backup UPS Ultra fast and Chint DDSU66 measurement kit for intelligent control

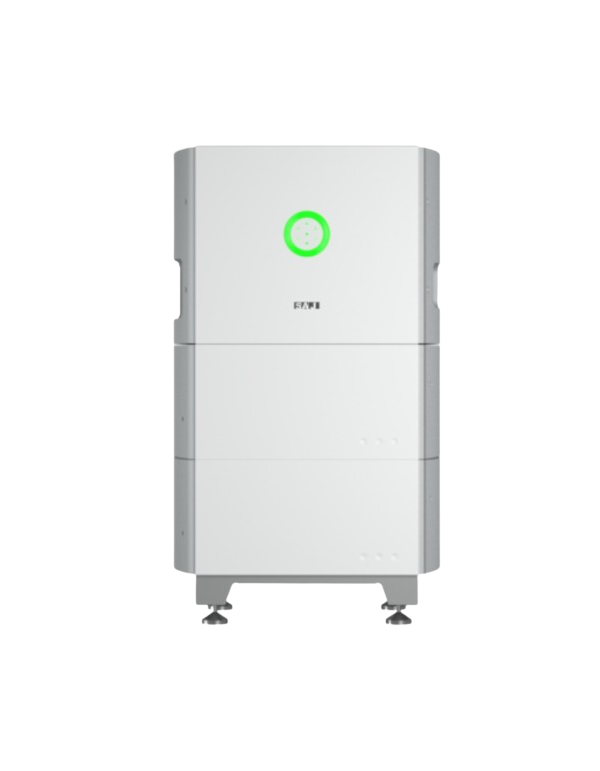

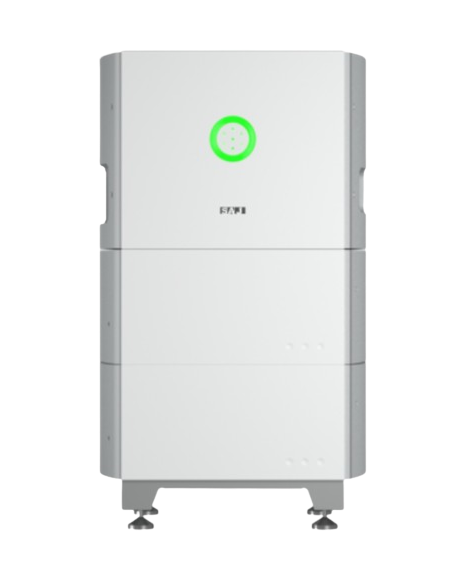

The transition towards energy independence in the residential area requires compact, aesthetic and technologically advanced systems that simplify the assembly tasks in the house. The single-phase system SAJ HS2 - 5K - S2 represents the evolution of industrial design in the photovoltaic sector, unifying in a single tower structure a powerful hybrid Inverter with the intelligence intelligence necessary to optimize the daytime and night consumption of the domestic network.

Double follower MPPT 16A, Dynamic surplus management and lithium scalability

Equipped with two followers of maximum independent power, this equipment supports a maximum photovoltaic field power of 7500 WP. . Your entry channels tolerate a maximum CC current from 16 A per MPPT , a key factor that allows you to pair with total solvency with modern solar solar cell modules and high power of the current market. The true intelligent management core of this commercial package contributes it to chint DDSU666 100A meter integrated together with your amperimeter clamp (CT * 1). This network analyzer instantly registers the electricity flows that come into and leave the property, communicating the inverter if you should derive solar production to the home, inject it to the network or allocate it to the storage bank. If your self-consumption project requires having maximum physical protection against winds or snow for plates that feed this inverter, we suggest you review our catalog structures for of anodized aluminum.

In the storage section, the device natively manages chemical blocks of ferrophosphate lithium batteries (LifePO4). . Its pre-wiring design completely removes the exposed cables between modules, allowing a modular scalability up to 20.0 kWh through BU2-5.0-HV1 / 5 modules to adapt to the consumer needs present or future of the family. All the continuous current optimized in these stages is protected in the options available in our specialized section of batteries high voltage.

Critical backup UPS 10 ms, natural convection chassis IP65 and digital interface

The security of the power supply is absolute in the SAJ Hs2-5k-s2. Before sudden falls of the commercial network, its function of emergency output (back-up) Activates a switch UPS in a period of less than or equal to 10 ms, achieving that sensitive devices such as computers or air conditioning systems continue to operate without uncomfortable reboots. . With a weight of 25 kg in your module inverter and compact dimensions of 354 x 626 x 365 mm, dispenses from noisy mechanical fans betting on a clean cooling by natural convection, keeping acoustic emissions below the Dba. . It has a watertight certification Ip65 certified for its installation both indoors and facades exposed to the weather. If you need to balance the load or you are evaluating commercial configurations of superior range for your home network, you can check our offer of inverters hybrid of leading brands.

Technical specifications (model SAJ Hs2-5k-s2):

Fotovoltaic DC Contact Input (DC INPUT):

• Maximum power of the supported FV field: 7,500 WP a STC conditions.

• Maximum voltage in CC: 550 V.

• MPPT operating voltage interval: 90 V at 500 V.

• System start voltage: 100 V.

• Max Entry CC: 16 a / 16 (Double independent follower).

• Maximum short circuit current: 19.2 A / 19.2 A.

• Number of integrated MPPT channels: 2.

Parameters of output and network connection (AC ON-GRID):

• Nominal power output: 5,000 W.

• Maximum apparent output power: 5,000 VA.

• Sustained starting nominal current: 21.7 a operating at 230 VAC.

• Maximum output current CA: 22.7 a.

• Electrical configuration of supported network: Single-phaseL + N + PE).

• Nominal voltage of operation CA: 220 V, 230 V, 240 V (Dynamic range of 180V to 280V).

• Total Harmonic Distortion (THDI): less than 3%.

Parameters of the backup output (AC Back-up / UPS):

• Maximum power of continuous output in emergency: 5,000 VA.
• Maximum output current in emergency: 20.9.
• Apparent power peak supported: 4,800 VA or 6,000 VA according to factory settings for a maximum of 60 seconds.
• Automatic switching time (UPS Switch Time): less than or equal to 10 ms.

Battery and general operation parameters:

• Compatible chemical technology: Lithium Ferrophosphate (Lifepo4).
• Range of battery bank voltage: 85 V at 450 V.
• Maximum loading / supported discharge current: 30 a / 30 a.
• Modular scalability limit: Up to 4 coupled modules (20.0 kWh of maximum capacity).
• Degree of external isolation: Sealing certification Ip65.
• Physical dimensions of the module Inverter: 354 x 626 x 365 mm.
• Net weight of the module Inverter: 25 kg.

Frequently Asked Questions (FAQ)

1. What is the 04A chint DDSU666 meter and the CT * 1 clamp included in this kit? The smart meter Chint ddsu666 he is in charge of monitoring bidirectional electricity consumption of your home in real time. Together with the current transformer (Ct * 1), It measures exactly how much energy you are demanding and how much produce your plates. This allows the inverter SAJ HS2 regulate its power to cover domestic consumption, store the surplus energy in the batteries or execute the function of zero injection if you do not want to pour surpluses to the commercial network.
2. What houses of the house can continue to run during a light cut with function UPS? Thanks to the inverter it has a transfer time less or equal to 10 milliseconds (10 ms), switching is imperceptible for the vast majority of electronic equipment. . You can connect to the backup output Essential critical charges of your home as the lighting system, refrigerators, Internet routers, computers or residential water pumps, which will continue to operate uninterrupted using the energy of the or of the batteries.
3. How does the concept of modular design and battery expansion work in this model of SAJ? The HS2 single-phase ecosystem is structured by a stackable all-in-one design. . The module inverter it is situated in the upper section and Lithium Lithium Battery blocks of 5 kWh are stacked directly below it. . Thanks to this system pre-wiring, no hoses of rough cables on the wall ; The modules are interconnected internally by quick connectors integrated in the chassis, allowing expand your storage capacity clean up to 20 kWh according to your needs.
4. Does inverter SAJ of 5KW is noisy if it is installed near the rooms or rest areas? No, it's a highly silent team. When using an advanced system of natural Convection Refrigeration, dissipate the surplus heat through its rear aluminum liability radiator without requiring internal mechanical fans in motion. . This reduces the level of operational noise by under 35 dBA, a sound level equivalent to the murmur of a library, allowing to place it in corridors, garages or inhabited residential areas without generating sound discomfort.
