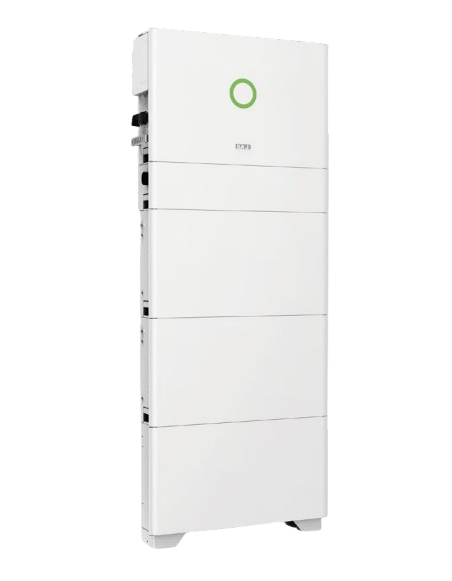

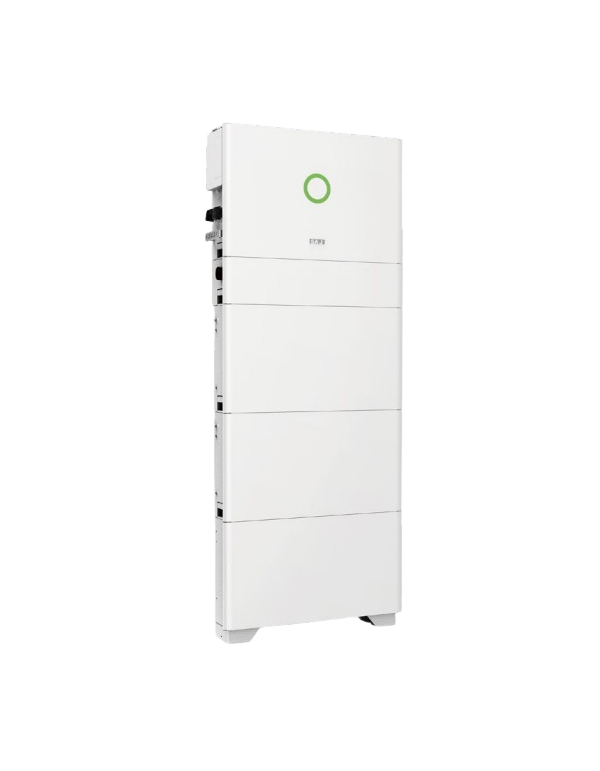

Hybrid Inverter Three-phase SAJ 10kw HS3-10K-T2 | Pack AIO3 + Meter + CT

SAJ HS3-10K-T2 AIO3: 10KW three-phase intelligence, backup UPS high-speed

Equipping large residential properties or three-phase commercial premises requires an agile, aesthetic energy control center and with capacity to manage asymmetric consumption. The hybrid Inverter networking SAJ HS3-10K-T2 three-phase 10KW redefine the photovoltaic market by suppressing traditional wired chaotics and introducing a vertically integrated storage platform that optimizes space and overall efficiency.

16A double MPPT, phase rolling and high voltage stacking modular concept

The continuous current management of this inverter it is supported by 2 independent MPPT followers. This configuration is suitable when designing the roofs on decks with different inclinations or orientations (such as two-waters west-waters), achieving that localized shading do not measure the overall performance of the solar plant. When tolerate a maximum current by 16a chain, the latest generation photovoltaic modules are coupled natively. This model belongs to our specialized section of inverters hybrid, which translates into an advanced bidirectional electronics conceived to interact effectively with lithium accumulators.

The pack incorporates the ecosystem from the factory AIO3 Accompanied by your meter (vatimeter) and three-phase current transformers (CT). These sensors monitor the electric flows between the public network and the property, allowing activating effective zero injection strategies or surplus control. In addition, the HS3 series stands out for its ability to support a three-phase load imbalance of 100%, injecting energy asymmetrically only on the line that suffers the greatest instant demand. Your stackable modular design allows you to attach the storage blocks directly below inverter no visible external interconnection cables; You can configure the ability of your system by acquiring compatible modules in our section of batteries high voltage.

Support UPS Continuous for emergencies and IP65 chassis without fans

The safety of the power supply is fully armored with the SAJ Hs3-10k-t2. It has an outlet of backUp dedicated with function SAI/UPS automatic switching less than 10 milliseconds. In the face of an unexpected external distribution network, the equipment reacts instantaneously by maintaining assets your three-phase critical consumption without perceptible cuts or restarts in your appliances. At the construction level, its elegant chassis has degree of protection IP65 and employs an advanced system of natural Convection Refrigeration. When you completely dispense with mechanical fans, it offers a functioning fully silent free motor noise. To perform the firm and safe fixing of your in any type of cover, we advise you the use of our structures for of high strength structural aluminum.

Technical specifications (model SAJ HS3-10K-T2 three-phase):

Continuous current input parameters (DC - photovoltaic):

• Maximum recommended photovoltaic power: 15,000 WP (150% CC oversizing)

• Maximum System Tension DC: 1,000 V

• Voltage range of the MPPT: 180 V - 850 V

• Nominal input voltage CC: 600 V

• Investment boot voltage: 180 V

• Maximum cc input current: 16 a / 16 (For each MPPT follower)

• Number of independent MPPT followers: 2

Parameters of the battery (modular accumulation port):

• Type of compatible battery: Lithium modules SAJ high voltage (stackable design)

• Battery voltage range: 180 V - 550 V

• Maximum loading / unloading current: 30 a / 30 a

Alternating current output parameters (CA - Network Connection):

• Nominal output power to the network: 10,000 W

• Maximum apparent power of output: 11,000 VA

• Maximum output current CA: 16.7 a

• Nominal Network Supply Supported: 3L + N + PE, 220 / 380V, 230 / 400V, 240 / 415V

• Maximum efficiency Inverter: 98,0%

Emergency output parameters (CA - Function UPS Back-up):

• Nominal backup power: 10,000 W

• Maximum peak apparent power: 15,000 VA (60 seconds)

• Automatic switching time:

Frequently Asked Questions (FAQ)

1. What advantages does the stackable All-In-One design provide SAJ Hs3-10k-t2? Unlike traditional hybrid facilities that require fixing the inverter and the batteries separately by the wall, the HS3 series offers a vertical integrated solution. The inverter 10KW is situated up and the compatible battery blocks are stacked just below, fitting their connectors internally. This eliminates external DC cables to the view, saves space and optimizes the aesthetics of the house.
2. What are the entire three-phase current and current transformers (ct)? They are the devices responsible for constantly measuring the meaning and the magnitude of the current in the three phases at the general rush point. This information in real time allows you to inverter decide instantly if it allocates solar energy to cover consumption, if you derive surpluses to modular batteries, or if you run a strict zero injection so as not to pour anything to the outside network.
3. What benefit does it provide that this inverter support a phase imbalance of 100%? In the vast majority of three-phase installations, consumptions are not equitably distributed between the lines. When supporting a 100% imbalance, the inverter SAJ HS3 can inject energy asymmetrically (for example, by sending the bulk of its production to phase L1 because there is a pump or machinery on, while maintaining minimum at L2 and L3), maximizing real photovoltaic use.
4. How does the inverter if there is a power supply cut in my area? The team automatically switches to its backup output in a time less than 10 milliseconds thanks to its function UPS. In this way, the inverter continue uninterruptedly feeding the critical lines of the property combining the energy of your solar with the stored in your modular batteries.
