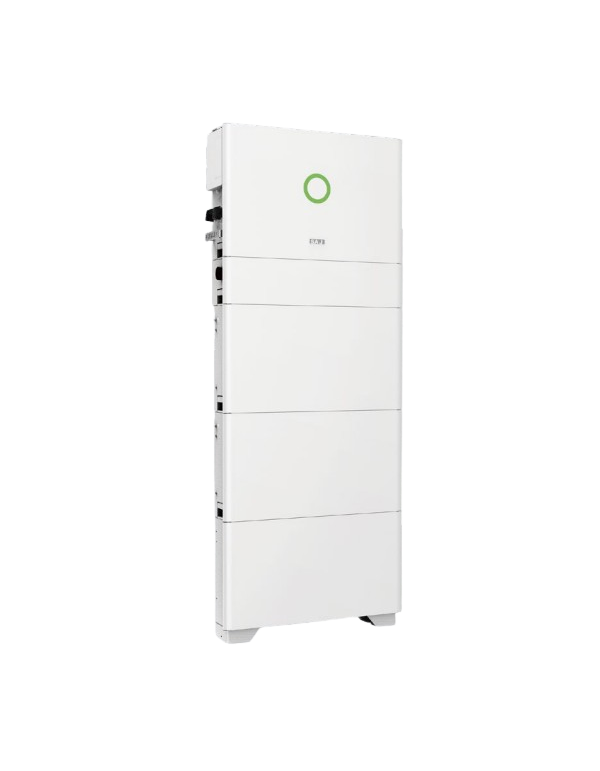

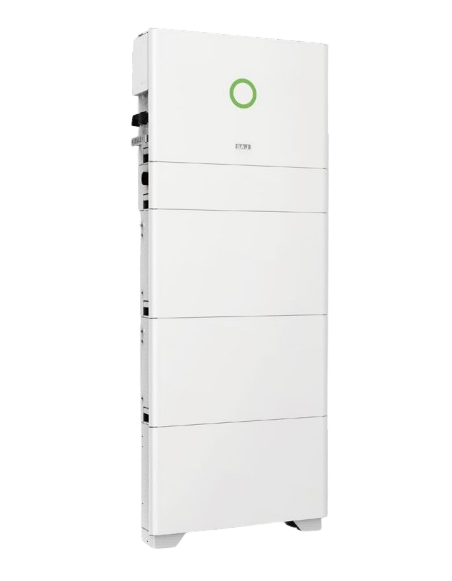

Hybrid Inverter Three-phase SAJ 8kw HS3-8K-T2 | Pack AIO3 + Meter + CT

SAJ HS3-8K-T2 AIO3: 8KW three-phase modular integration, backup switching

Managing a three-phase electrical network intelligently requires a high-tech equipment capable of balancing photovoltaic production, domestic demand and energy storage autonomously. The hybrid Inverter networking SAJ 8kw three3-8k-t2 it introduces a revolutionary concept in the residential and commercial sector, unifying an impeccable aesthetic free of cables with industrial grade benefits.

16A Double MPPT, Asymmetric Injection and High Voltage Modular Storage

The continuous current management of this inverter it is supported by 2 independent MPPT followers. This greatly flexibly flexible the design of chains of solar on covers with two different orientations (such as east-west roofs) or prone to partial shadows, avoiding widespread drops in performance. By admitting a maximum current by 16a chain, adapts natively to modern high power. This model is part of our premium catalog of inverters hybrid, which guarantees a last generation bidirectional control electronics conceived to interact effectively with lithium accumulators.

The pack includes the ecosystem AIO3 accompanied by the meter (vatimeter) and three-phase current transformers (CT). Thanks to this combination, the team reads the immovable consumption to millisecond and executes advanced zero injection strategies or surplus control. In addition, the HS3 series stands out for its ability to support a three-phase load imbalance of 100%, injecting energy asymmetrically only in the phase that needs it most. Your stackable modular design allows you to attach the storage blocks directly below inverter without visible external cables; You can configure the ability of your system by acquiring compatible modules in our section of batteries high voltage.

Function SAI Three-phase high speed and silent dissipation IP65

The continuity of the power supply is fully assured with the SAJ Hs3-8k-t2. Has a function SAI/UPS automatic switching less than 10 milliseconds. In the face of an unexpected blackout or fall of the external distribution network, the equipment reacts instantaneously by maintaining assets your three-phase or single-phase critical consumption without perceptible cuts. At the construction level, its chassis has degree of protection IP65 and employs a system of natural Convection Refrigeration. Losing from mechanical fans, it offers a functioning fully silent and free of annoying noises. To perform the firm and safe fixing of your in any type of cover, we advise you the use of our structures for of high strength structural aluminum.

Technical specifications (model SAJ HS3-8K-T2 three-phase):

Continuous current input parameters (DC - photovoltaic):

• Maximum recommended photovoltaic power: 12,000 WP (150% CC oversizing)

• Maximum System Tension DC: 1,000 V

• Voltage range of the MPPT: 180 V - 850 V

• Nominal input voltage CC: 600 V

• Investment boot voltage: 180 V

• Maximum cc input current: 16 a / 16 (For each MPPT follower)

• Number of independent MPPT followers: 2

Parameters of the battery (modular accumulation port):

• Type of compatible battery: Lithium modules SAJ high voltage (stackable design)

• Battery voltage range: 180 V - 550 V

• Maximum loading / unloading current: 30 a / 30 a

Alternating current output parameters (CA - Network Connection):

• Nominal output power to the network: 8,000 W

• Maximum apparent power of output: 8,800 VA

• Maximum output current CA: 13.3 a

• Nominal Network Supply Supported: 3L + N + PE, 220 / 380V, 230 / 400V, 240 / 415V

• Maximum efficiency Inverter: 98,0%

Emergency output parameters (CA - Function UPS Back-up):

• Nominal backup power: 8,000 W

• Maximum peak apparent power: 12,000 VA (60 seconds)

• Automatic switching time:

Frequently Asked Questions (FAQ)

1. What advantages does the stackable All-In-One design provide SAJ Hs3-8k-t2? Unlike traditional hybrid facilities that require wiring and fixing the inverter and the batteries separately, the HS3 series offers a vertical integrated solution. The inverter it is located above and the compatible battery blocks are stacked just below, fitting the terminals internally. This eliminates visible external DC cables, saves space and optimizes the aesthetics of the house.
2. What are the entire three-phase current and current transformers (ct)? They are the sensors responsible for constantly reading the meaning and magnitude of the current in the three phases of the property. This information allows the inverter know exactly how much photovoltaic energy to allocate instantaneous consumption, how much derive the batteries, or how to run a strict zero injection if the user decides not to pour surpluses to the external network.
3. What benefit does it provide that this inverter support a phase imbalance of 100%? In most three-phase residential or commercial properties, loads do not consume the same on each line. When supporting a 100% imbalance, the inverter SAJ HS3 can inject asymmetrically (for example, by sending a lot of energy to the L1 phase because there is a heavy equipment on, while maintaining minimum at L2 and L3), maximizing real solar use.
4. How does the inverter if there is a general power supply cut? The team automatically switches to your backup output in a time less than 10 milliseconds thanks to its function UPS. In this way, the inverter continues to feed in an interrupted way the critical load lines of the property with the combined energy of the solar and modular batteries.
