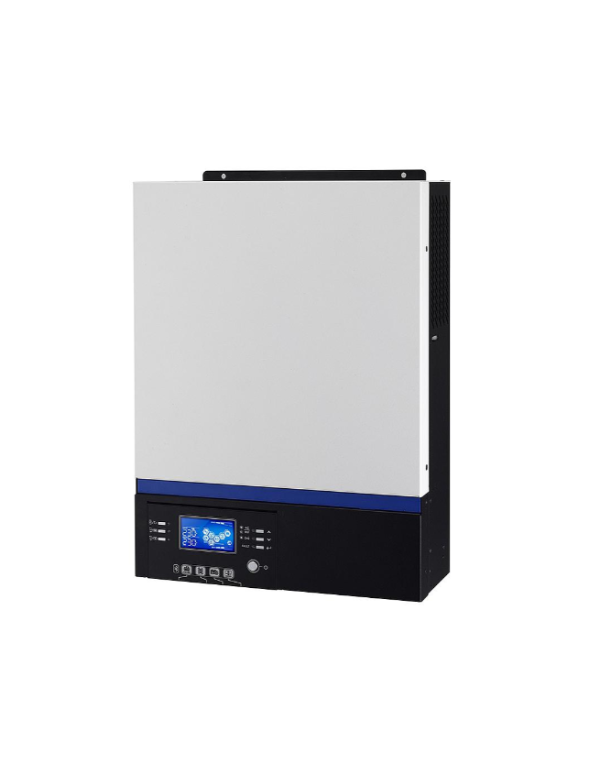

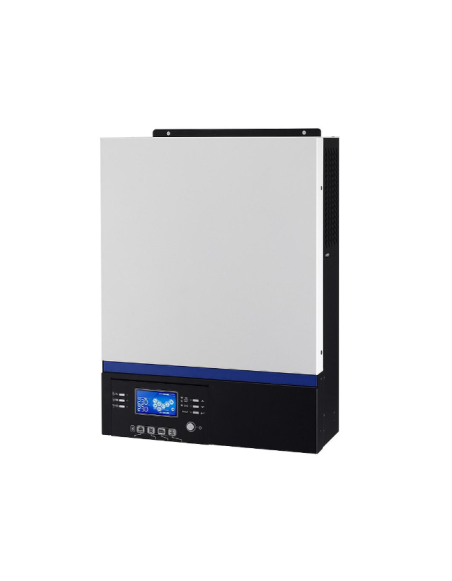

Inverter Axpert VM III 6000-48V

Inverter Axpert VM III 6000-48V

Inverter Solar charger Axpert VM III 6000-48V

Reference AXVMIII6K48

€592.90

Tax included

Inverter Solar charger for 6000W isolated facilities at 48V single-phase with Wi-Fi connection to be able to connect sunscreen bench (any technology) from the corresponding voltage (48V). The Axpert VM III 6K has a single MPPT (maximum power tracking point) and provides a yield of 93.0%. The maximum solar regulator input current is 120A, minimum start voltage of the inverter Solar is 120VDC and maximum power of Solar is 6000W.

This inverter 6KW Axpert VM III Solar Charger (KVA) offers a guarantee of 2 years of Product and CE certificate.

The inverter solar Axpert VM III 6000W-48V as the rest of the family stands out in addition to its price for the following characteristics:

- Inverter isolated pure sine wave wave of great efficiency
- Output power factor of 1 which involve 6KW of real power
- MPPT loading regulator integrated in the inverter solar
- Wide range of input voltage selection of the inverter solar (120-450V)
- Wide range of selection of entry current of the inverter solar for battery charge up to 120A
- Configurable AC / Solar Entrance through the LCD screen
- In this case the AXPERT VM 6000-48V does not have a self-maintenance for diesel generator or hybrid installation
- Overvoltage and short circuit protections in the inverter solar
- Option for coupling remote control of the inverter charger
- WiFi integrated with interface by mobile application available for Android or iOS

The inverter- Axpert Farger VM III 6000W-48V is a very economical option for demanding clients who want to own a reliable and without problems of quality in the operation of its installation. For any questions, consult with us in [email protected]

Technical characteristics

Model	Axpert VM III 6000W-48V
Nominal power	6000va / 6000w
Entrance voltage	230vac
Assigned network frequency / frequency range	50hz / 60hz
Output voltage AC	230VAC +/- 5%
Maximum power peak transient	10000va
Efficiency peak	93%
Waveform	Pure sine
Battery tension	48vdc
Load floating tension	54vdc
Overload protection	63vdc
Maximum power Solar PV	6000wp
MPTT range in operating voltage	120VDC - 450VDC
Maximum tension of circuit open by String	500vdc
Maximum solar current	120a
Maximum AC current	100a

Power (kW): 3 - 5.9
Phase Type: Single phase
Max Current Input (A): 10-
Compatibility list: Dyness BX51100
Dyness Power Box
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
Turbo Energy (Slim)

Ficha Tecnica VM III 6kW

Datasheet VM III 6kW

Download (3.75MB)
