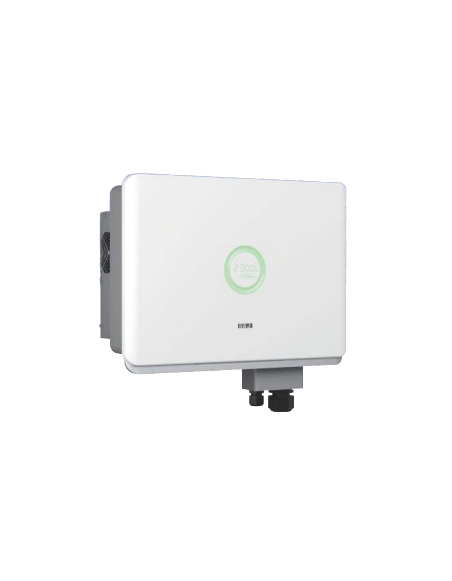

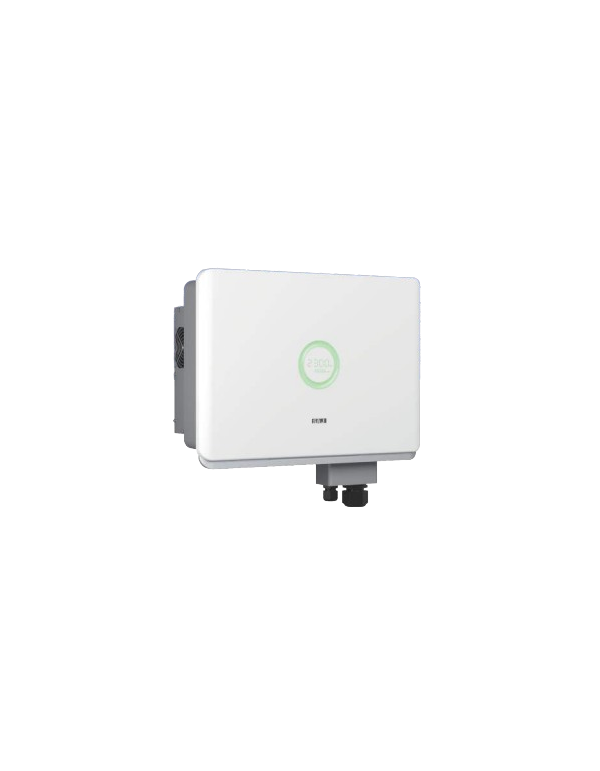

Inverter Three-phase network connection SAJ 15kw R6-15K-T2-32 | High efficiency

SAJ R6-15K-T2-32: Premium performance of 98.8%, double MPPT of 16A and asynchronous direct injection management

Optimizing large residential covers or small shops with three-phase networks requires a team inverter able to transform massive currents with minimal losses. The inverter networking SAJ R6-15K-T2-32 Three-phase 15kw it has been consolidated in the sector thanks to its balance between power, advanced protection and compatibility with latest generation photovoltaic module technologies.

16A double MPPT for large format modules

The flexibility of photovoltaic design in continuous current is guaranteed by incorporation of 2 independent MPPT followers. This configuration is essential when setting solar plates on roofs with different orientations (such as East-West inclinations) or prone to partial shading, avoiding the affected STRING from reducing the overall production of the system. When tolerate a maximum entrance current of 16A per chain, this inverter it is perfectly coupled to modern large cells without suffering crop losses (clipping). It should be remembered that this model is designed for instantaneous direct injection to the network; If your project requires obligatorily store surpluses, we advise you to visit our dedicated section of inverters hybrid.

At the level of efficiency, the R6 series offers leading figures in the market, achieving a maximum efficiency of 98.8%, which drastically reduces thermal waste. Also has the advantage of supporting a 110% alternating current outflow on an alternate current, reaching a work peak of 16.500VA to absorb heavy demands on property lines. If in the future you decide to transform your plant into a system with nocturnal accumulation, you can inject energy through a parallel network in CA acquiring the storage blocks in our general catalog of lithium batteries.

Electrical Safety SPD and Intelligent Cooling

The long-term reliability of the electronic components is held under a chassis with an ip65 industrial protection degree. To optimally dispel the heat generated by its power 15kW, it employs a system of intelligent fan cooling that varies its speed dynamically according to the temperature of internal electronics, minimizing wear. In the active security section, the equipment is equipped with the factory with sPD SPD protection devices of type III both on the CC side and AC. If you are going to set a lot of about Industrial District or Residential Roofs, we suggest you guarantee an indeform anchor against the wind using our structures for of extruded aluminum.

Technical specifications (model SAJ R6-15K-T2-32 three-phase):

Continuous current input parameters (DC - photovoltaic):

• Maximum recommended photovoltaic power: 22,500 WP (Supports 150% CC oversioning)

• Maximum input voltage CC: 1,100 V

• Voltage range of the MPPT: 180 V - 1,000 V

• Nominal input voltage CC: 600 V

• Starting voltage Inverter: 180 V

• Maximum cc input current: 16 a / 16 (For each MPPT follower)

• Number of independent MPPT: 2

Alternating current output parameters (CA - Network Connection):

• Nominal power output: 15,000 W

• Maximum apparent power CA: 16,500 VA (Overload capacity of 110%)

• Maximum output current CA: 23.9

• Nominal Network Supply Supported: 3x220V / 380V, 3x230V / 400V (three-phase system)

• Maximum conversion efficiency: 98,8%

Safety and protection systems:

• Surge protection: Integrated (SPD Type III in DC and Type III in CA)

• Protection against short circuits in AC / Network monitoring: Integrated

• CC insulation resistance detection: Integrated

• Anti-Isla Protection: Afd integrated

• Protection against arc failures (AFCI): Optional upon request

Frequently Asked Questions (FAQ)

1. The model SAJ R6-15K-T2-32 allows the installation of lithium batteries? No, this team belongs to the R6 series of inverters of Pure Red Connection, which means that it instantly injects all the electricity produced by the plates to the consumption of the three-phase installation. It does not have storage terminals; If you need batteries, you must look for a hybrid Inverter.
2. What real benefit provides its high efficiency rate of 98.8%? A efficiency of 98.8% it represents one of the highest standards in three-phase technology. It guarantees that practically 100% of the energy captured in continuous current by your modules is transformed into useful alternating electricity, minimizing equipment heating and accelerating the amortization of the installation.
3. Can I place solar in rooftops oriented to different points? Yes, it is completely viable thanks to which it includes 2 independent MPPT followers. You can connect a string east oriented in an MPPT and another String west in the second MPPT, achieving that both optimize production in an isolated manner without affecting each other.
4. What kind of maintenance does your intelligent fan ventilation require? The inverter manage a system of intelligent fan cooling that regulates the revolutions automatically according to the internal temperature of the electronics. It only requires periodic visual inspections in its outer grids to verify that they are free of extreme accumulations of powder or leaves, ensuring an optimum air flow.
