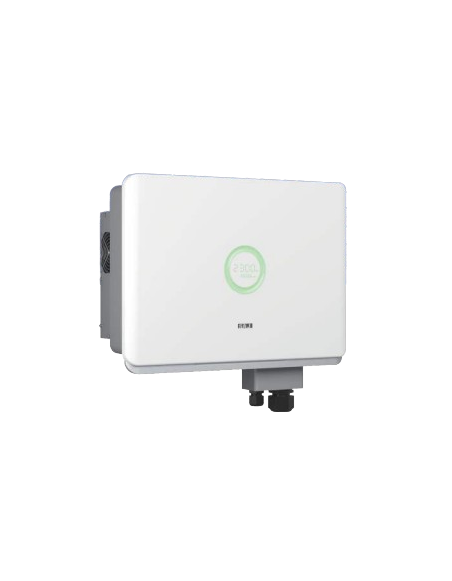

Inverter Three-phase network connection SAJ 10kw R6-10K-T2-32 | High efficiency

SAJ R6-10K-T2-32: Three-phase yield of 98.8%, double MPPT of 16A and advanced photovoltaic management

Carry out the energy transition in properties with three-phase supplies requires a inverter of network that combines reliability, high speed of processing and compatibility with current module technologies. The inverter networking SAJ R6-10K-T2-32 Three-phase 10KW has been developed to function as the heart of photovoltaic plants of direct self-consumption, turning the continuous current of the alterna ready to consume in real time.

16A high current inputs and double follower MPPT

The continuous current entry architecture of this equipment stands out for incorporating 2 independent MPPT followers. Thanks to this configuration, installation engineering can design stings on ceilings with two different orientations or inclinations (for example, east-west roofs) preventing localized shades by measuring general production. When tolerate a maximum current by 16a chain, the device is coupled natively with the modern solar of large cells. It should be noted that this model is a inverter of direct network injection; If your project requires obligatorily store the day surpluses in accumulators, we advise you to consult our specialized section of inverters hybrid compatible with storage systems.

The R6 series stands out for its premium performance, achieving a maximum conversion efficiency of 98.8%, which reduces the thermal losses to the minimum during the investment process. The team also has a remarkable continuous overload capacity in alternating current of 110%, responding in a loosely before incidental peaks of energy demand in the house or local. Although this model delivers all its energy to instantaneous consumption, if in the future you want to redesign your installation to accumulate energy, you can explore our general catalog of lithium batteriesFor parallel systems of ca.

Advanced Safety SPD and Intelligent Dissipation by fan

The integrity of the system and the durability of the mechanical components are preserved by a robust chassis with degree of industrial protection IP65. Unlike low powers, the SAJ R6 employs a system of intelligent fan cooling, which regulates the internal air flow actively depending on the workload and the ambient temperature, protecting the power electronics. In the Security section, the equipment stands out for incorporating as standard sPD SPD SPD Protections of Type III Both on the CC side and AC. To ensure that your photovoltaic modules remain firm before severe wind or snow weather conditions, it is essential to perform anchor through ours structures for of reinforced structural aluminum.

Technical specifications (range SAJ R6 three-phase):

Continuous current input parameters (DC - photovoltaic):

• Maximum recommended photovoltaic power: 15,000 WP (Supports up to 150% CC oversizing)

• Maximum input voltage CC: 1,100 V

• Voltage range of the MPPT: 180 V - 1,000 V

• Nominal input voltage CC: 600 V

• Starting voltage Inverter: 180 V

• Maximum cc input current: 16 a / 16 (For each MPPT follower)

• Number of independent MPPT followers: 2

Alternating current output parameters (CA - Injection to network):

• Nominal power output: 10,000 W

• Maximum apparent power CA: 11,000 VA (Overload capacity of 110%)

• Nominal Network Supply Supported: 3x220V / 380V, 3x230V / 400V (three-phase system)

• Maximum conversion efficiency: 98,8%

• European performance (Euro efficiency): 98,3%

Integrated Safety and Protection Systems:

• Surge protection: Built-in (SPD Type III in DC and Type III in CA)

• Protection against short circuits in CA: Integrated

• CC insulation resistance detection: Integrated

• Network monitoring and anti-island (AFD): Integrated

• Protection against arc failures (AFCI): Optional upon request

Frequently Asked Questions (FAQ)

1. What kind of inverter is the SAJ R6-10K-T2-32 and supports battery connection? This model is a inverter connecting to pure network, designed to transform the energy of the solar and inject directly to instantaneous consumption of your three-phase network. It does not have a direct connection port for batteries; If you are looking for a solution that manages lithium storage, you must opt for a hybrid Inverter.
2. What benefit does it provide that its maximum efficiency reach 98.8%? An efficiency of the 98,8% it places the R6 series at the forefront of the photovoltaic market. It means that almost all of the clean energy collected in continuous current by your plates is effectively transformed into high-quality electricity, minimizing residual heat and optimizing the economic amortization of your photovoltaic plant.
3. How does this tolerate this inverter the installation of with different orientations? The team integrates 2 fully independent MPPT followers. Thanks to this, you can distribute your modules in two areas of your cover with different guidance (as east and west). Each follower will analyze the isolated, ensuring that the performance of a string does not decrease by the behavior of the other.
4. What kind of protections does this include inverter network for lightning falls or tension peaks? It comes equipped by factory with an active active security package that includes overvoltage protection devices (SPD) type III both in the lines of current current and in the alternating current, isolating and protecting the internal circuits of inverter faced with induced atmospheric discharges.
