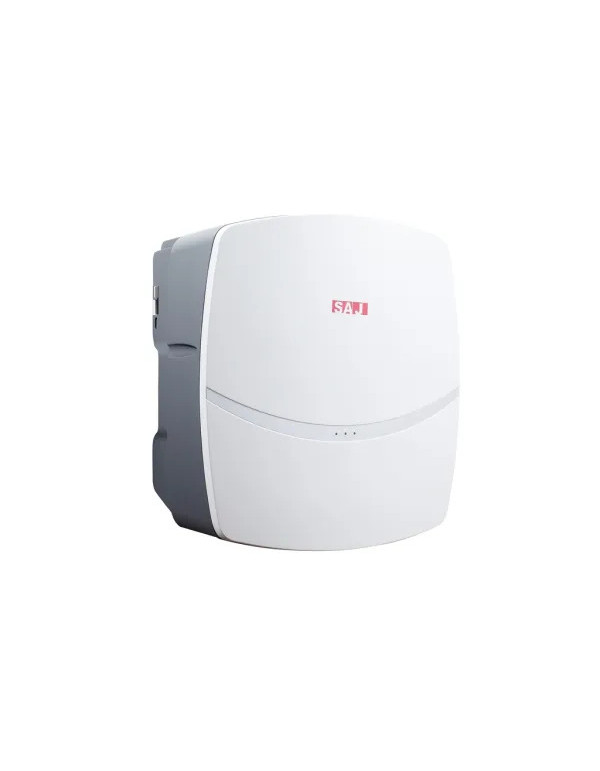

Inverter Three-phase network SAJ R5-10K-T2 | Inverter Residential and Commercial Solar of 10KW with 2 MPPT

SAJ R5-10K-T2: Three-phase 10KW performance, double MPPT and silent hermetic chassis natural convection

Guaranteeing the stability of the three phases in a residential or commercial network with high consumption requires a centralized high-level technological equipment. The inverter networking SAJ R5-10K-T2 three-phase 10KW it has been developed specifically to distribute and efficiently distributed the energy captured on the roof, achieving an optimal self-consumption and immediately reducing the energy term of your light invoice.

Double follower architecture MPPT and high oversizing tolerance

The differential advantage of the R5-10K-T2 model lies in the presence of 2 independent MPPT followers. Thanks to this multi-follower configuration, it is possible to sectorate the solar field into two different orientations (for example, two-watershed watershed or punctual radiation or shading differences negatively affect the joint performance of the system. Each of the followers admits a maximum input current of 12.5A. It is important to emphasize that this model acts by injecting current directly to the loads of the property; If your short or long-term goal includes storing energy for the night, you must opt for specific teams within our inverters hybrid with integrated accumulation ports.

In addition, the inverter admits a maximum recommended photovoltaic power in solar up to 15,000wp, which facilitates an intelligent oversion of the plaque field. This ensures that, in winter days or severe cloudiness, the inverter continue operating close to your nominal power. If you want to evaluate options to complement the installation in the future or store surpluses, have a wide variety in our general category batteries of last generation lithium.

Integrated SPD Safety Shield and Rack Chassis No Mechanical Noise

Mechanical durability is one of the pillars of the R5 series of SAJ. The inverter it has a pressure melted housing chassis with degree of industrially, suitable ranching, for both interior and weather facilities. To protect the installation against anomalies on the network, it includes at the factory overvoltage protection devices (SPD) both on the DCTO Side and in the alternating current, accompanied by high precision leakage monitoring. Its thermal dissipation operates by natural Convection No Fans, reducing the noise level to less than Dba and avoiding failures from mechanical wear. If you are going to set your plates on tile, sheet or flat floor, we suggest you ensure the anchor of your modules using our structures for of high strength structural aluminum.

Technical specifications (model SAJ R5-10k-t2):

Continuous current (CC) parameters:

• Maximum recommended photovoltaic power: 15,000 WP

• ADmitted maximum CC voltage: 1,100 V

• Voltage range of the MPPT: 160 V - 950 V

• Nominal input voltage CC: 600 V

• Investment boot voltage: 180 V

• Minimum operating DC voltage: 150 V

• Maximum cc input current: 12.5 A / 12.5 A (For each MPPT follower)

• Number of independent MPPT followers: 2

• Number of Strings for each MPPT: 1

Alternating current output parameters (CA - Three-phase):

• Nominal power output: 10,000 W

• Maximum apparent output power: 10,000 VA

• Maximum output current CA: 15.2 a

• Nominal Network Supply Supported: 3x220V / 380V, 3x230V / 400V (three-phase system)

• Operational network frequency: 50 Hz / 60 Hz

• Maximum efficiency Inverter: 98,6%

• Weighted European efficiency: 98,1%

Frequently Asked Questions (FAQ)

1. What advantages does it provide to have 2 independent MPPT in a three-phase network? Dispose of 2 independent MPPT it gives you the versatility of being able to configure Strings of solar in two different sections of the cover. If a part of the it suffers from partial shadows by chimneys or trees, or if they are oriented to different aspects, the other MPPT follower's circuit will continue to yield 100% without global voltage falls.
2. Is it possible to connect lithium batteries to accumulate energy in the series SAJ R5-10k-t2? No, the models of the range SAJ R5 Series are inverters of pure network connection without direct hybrid support. Its task is based exclusively on converting the cc energy of the in AC to consume in real time. To store energy in batteries, it is necessary to change the system architecture towards a hybrid Inverter three-phase.
3. What noise level does the equipment emit and can be put into pass areas? The inverter it is extraordinarily silent, emitting a noise level below Dba. Lacking annoying mechanical fans and refrigerated by natural convection, it does not generate acoustic contamination. Thanks to its IP65 industrial protection, it tolerates the weathering so it can be set perfectly on the exterior of facades.
4. What safety protections does the 10kw R5 model bring as standard? The team offers a standard of integral industrial safety. Has overvoltage protection devices (SPD) in continuous current and factory integrated alternating current, Thermal protection, integrated anti-island monitoring and an intelligent high precision current leakage system, safeguarding the integrity of the housing or business electricity network.
