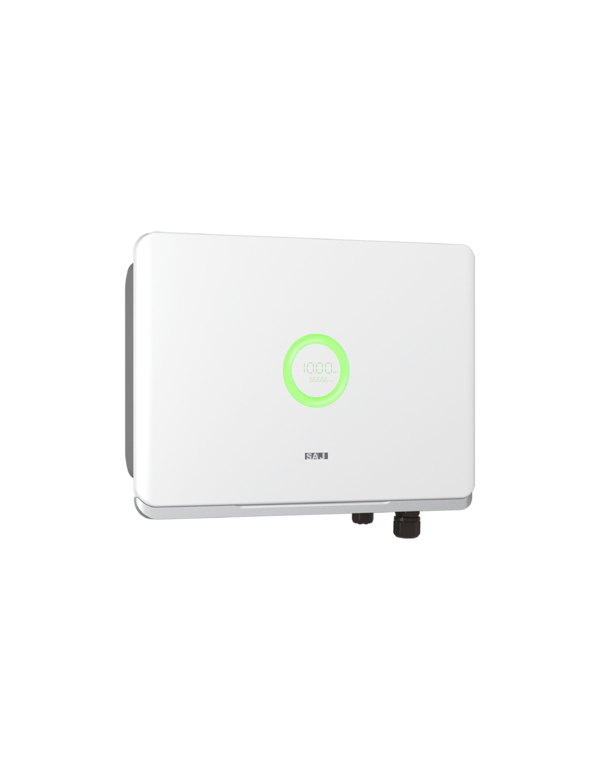

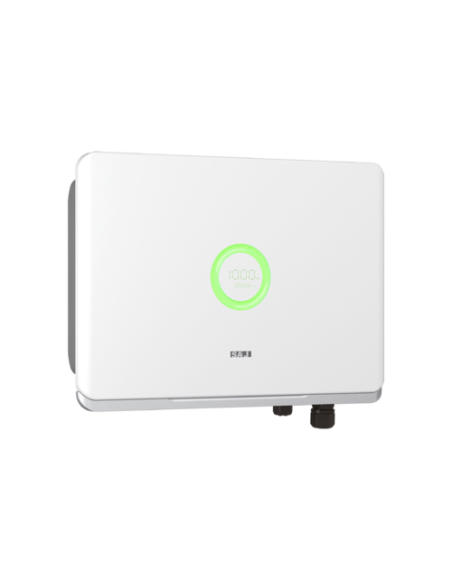

Inverter Single-phase network SAJ R6-10K-S3 | Inverter Residential Solar of 10KW with 2 MPPT

SAJ R6-10K-S3: The 10KW single-phase giant, 2 MPPT 16A and maximum conversion efficiency

When a home has a high electricity consumption (air stopermia, air conditioning, electric vehicle load) but has a single-phase rush, it is essential to have a high capacity team that centralizes production without losing efficiency. The inverter networking SAJ R6-10K-S3 of 10KW single-phase It is positioned as the absolute reference of the range, offering maximum power allowed in residential systems of a single phase under a high-tech structure and industrial reliability.

Latest generation photovoltaic optimization and high entry current

The architecture of this inverter stand out for integrating 2 independent MPPT followers, an essential feature in complex residential covers. This allows you to divide the field of Solar in two independent areas (for example, south-facing roofs and west), avoiding partial shades or different inclinations to affect general production. In addition, each MPPT admits a 16A maximum entrance current, which makes it fully compatible with the New generation solar equipped with large cells. Remember that this model is designed exclusively for direct injection to the electrical network; If your project requires storing surplus energy in physical accumulators, we suggest you review our advanced range of inverters hybrid With Intelligent Load Management.

One of the most powerful specifications of the R6-10K-S3 model is its high oversizing tolerance, as it accepts a Maximum recommended power in Solar up to 15,000wp. This allows to intelligently ovenexentify the photovoltaic field to ensure high and constant production even on days with severe cloudiness or during low radiation hours. If you are planning a complete self-consumption infrastructure, we invite you to explore the different storage technologies available in our general section of batteries of high voltage lithium.

Integrated Total SPD security and silent natural convection chassis

The SAJ R6-10K-S3 has been designed by paying a meticulous attention to the security of the installation and the home itself. Incorporate series Overvoltage protection devices (SPD) integrated both on the direct current and in the alternating current, which effectively blocks the internal components against atmospheric discharges or unforeseen disturbances of the electrical network. Its robust hermetic chassis completely dispenses with external mechanical fans, betting on a system of Natural Convection Refrigeration. This eliminates annoying mechanical noises and avoids dirt entry into the team, drastically prolonging its operational life cycle. To carry out the anchor and fixing your modules on the cover safely against strong wind racks, we advise you to use our Aluminum extruded high strength.

Technical specifications (model SAJ R6-10k-s3):

Continuous current input parameters (CC):

• Maximum recommended photovoltaic power: 15,000 WP

• Maximum supported DC tension: 600 V

• Range of working voltage of the MPPT: 90 V - 550 V

• Nominal input voltage CC: 360 V

• Starting voltage Inverter: 100 V

• Minimum operating DC voltage: 80 V

• Maximum cc input current: 16 a / 16 (For each MPPT follower)

• Maximum short circuit current by MPPT: 20 a / 20

• Number of independent MPPT followers: 2

• Number of Strings for each MPPT: 1

Alternating current output parameters (CA):

• Nominal power output: 10,000 W

• Maximum apparent output power: 11,000 VA (Overload capacity of 110% BC)

• Maximum output current CA: 50.0

• Nominal network voltage / Range: 220V, 230V, 240V / 180V - 280V

• Supported network frequency: 50 Hz / 60 Hz

• Maximum conversion efficiency: 98,8%

• Weighted European efficiency: 98,2%

Frequently Asked Questions (FAQ)

1. What advantages does the 10KW model offer when incorporating 2 MPPT 16A? Dispose of 2 independent MPPT It gives you the flexibility to guide your solar panels in two different areas of the cover (for example, a two-waters oriented to the east and west) without radiation or shadows differences penalize the installation. Also, when supporting 16th, it is fully compatible with the Modern high power solar.

2. Is it possible to add lithium batteries to store energy in this inverter SAJ R6-10k-s3? No, this model belongs to the range of inverters of pure network (direct injection). Its main function is to transform the energy produced by the and instantly inject it to domestic consumption. In order to incorporate physical batteries into the installation, a hybrid nature team is required.

3. What level of noise issues this equipment when working at its maximum power of 10KW? The team offers operation completely silent. SAJ has designed this device using a system of Natural Convection Refrigeration, completely dispensed with noisy mechanical fans that suffer wear or accumulate dirt over the years.

4. What benefits do you provide to have an AC overload capacity of 110%? The ability to deliver in a timely manner up 11000VA maximum apparent power allows the inverter Safely manage the initial demand peaks that generate certain high-consumption appliances when starting (such as heat pumps, motors or compressors), avoiding falls or unexpected blocks of the energy system.
