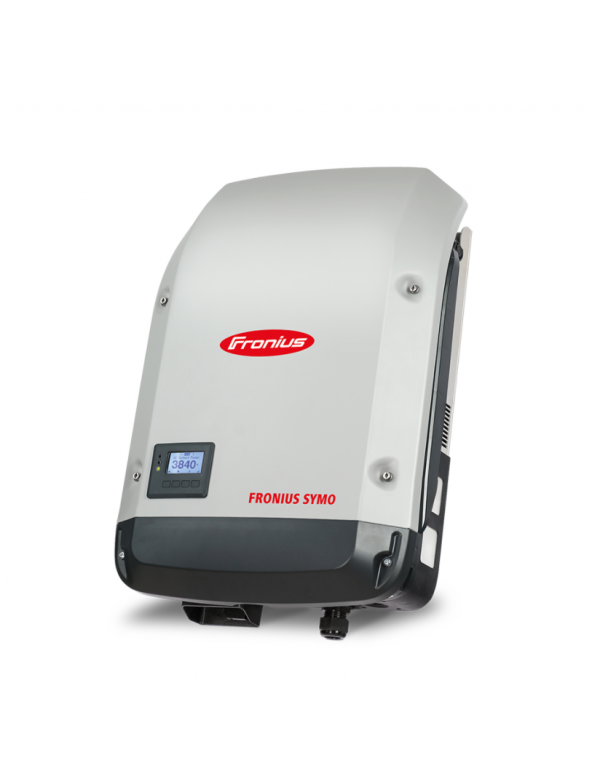

Inverter Solar Fronius Symo 4.5KW -3-M full | Inverters Three-phase solar with native connectivity

Fronius Symo 4.5kw Full: Double MPPT tracking and integrated intelligent monitoring

Energy management in a medium-sized residential three-phase supply requires a inverter High precision that distributes the generation evenly. The Fronius Symo 4.5-3-M full It meets outright with this purpose: synchronize with total stability the current current produced by your solar With the property network, maximizing direct day self-consumption and drastically reducing your electricity bills under the strict regulations of the CE certificate.

Serial comprehensive connectivity with solar.web

The great differential advantage of the inverters solar Fronius in its edition Full It is the inclusion of the Datamanager card serial within the chassis. Through your WLAN wireless antenna or Ethernet physical port, the inverter It connects directly to the Internet to dump all the analytical parameters on the platform Fronius Solar.web. This allows you to supervise from the mobile or the computer the live performance of your solar panels, Record historical consumption and receive automatic alerts without the need to acquire communication gateways or additional external components.

Flexibility Snapinverter and maximum efficiency in front of shadows

On Tienda Solar We select components that simplify the technical installation and maintenance processes. The patented architecture Snapinverter divide the inverter In a fixed wall bracket (where all cable connection) and the interchangeable power stage are conveniently performed. In case of technical assistance, the upper electronic block is removed quickly and easily without altering the general wiring. Also, when having 2 independent MPPT followers, allows designing series In covers with different orientations (as East-West structures). His algorithm Dynamic Peak Manager Performs periodic scans of the I-V curve to mitigate losses by clouds or partial shadows, always setting the optimal operating point of the system.

Technical specifications (Symo 4.5-3-M Full model):

• Nominal output power (AC): 4500 W (4.5 kW)

• Maximum input power (DC): 9000 W (Excellent margin for the oversizing solar)

• Number of MPPT followers: 2

• Start voltage (DC): 200 V

• Nominal input voltage (DC): 595 V

• Maximum input voltage (DC): 1000 V

• Maximum input current (MPPT1 / MPPT2): 16.0 A / 16.0 A

• Short circuit current (MPPT1 / MPPT2): 24.0 A / 24.0 A

• Nominal output current (AC): 6.5 A (balanced and efficient distribution in three-phase networks)

• Connection to Network: Three-phase (380V / 400V)

• Degree of environmental protection: IP65 (total sealing against dust and water for outside mounting)

• Serial connectivity: DataManager, WLAN (WiFi), Ethernet, Modbus TCP / RTU and interfaces Fronius Solar API (JSON)

• Thermal management: Intelligent forced ventilation (Active Cooling)

• Net package of the package: 20.0 kg

Frequently Asked Questions (FAQ)

1. What advantages does the "Full" version provide in this 4.5kw model? The model Full Includes the DataManager card installed with WiFi and Ethernet connectivity. Unlike LIGHT versions, it does not require buying additional accessories to monitor the plant on the Internet. If you install several inverters solar Fronius In the same network, it is enough for the first to be full to centralize the communication of all others.
2. Can I connect lithium batteries directly to this inverter of 4500W? Not directly. The range Fronius Conventional Symo encoms inverters solar of connection to pure network and does not have a specific entry for loading lithium batteries. If you are looking for a system with storage capacity, we suggest you explore our section of inverters Hybrids in the store.
3. How does Zero injection work on this computer work? To avoid pouring energy to the outer electrical network (for example, if the legalization procedures of your solar panels they are in process), the inverter It automatically decreases its production in milliseconds to cover only the actual demand. To activate this function, it requires the combined installation of a vatimeter Fronius Smart Meter.
4. Why is the Active Cooling a great advantage in this inverter solar? The system Active Cooling Use intelligent internal fans that actively dissipate the heat of the electronics. This avoids the losses of energy efficiency that suffer inverters of passive refrigeration in the hottest months of the year (derating) and substantially lengthens the useful life of internal components.
