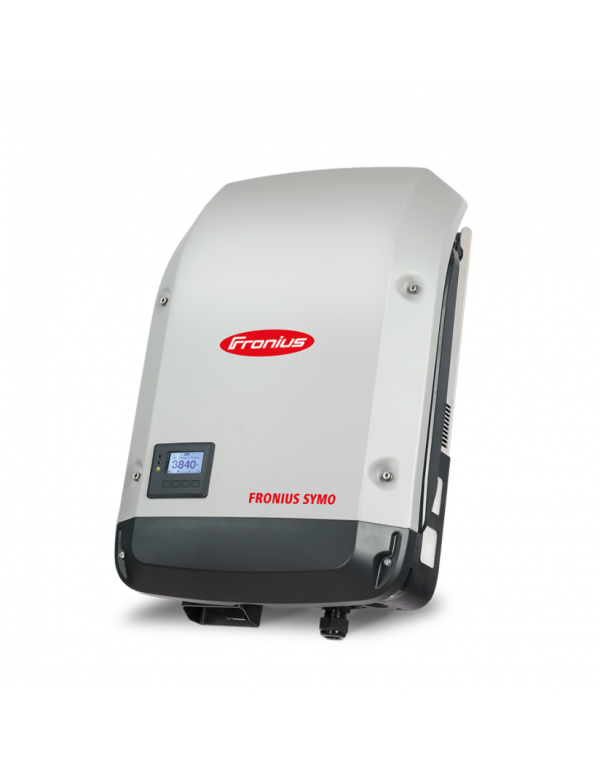

Inverter Solar Fronius Symo 3.0kw -3-M full | Inverters Three-phase solar with complete connectivity

Fronius Symo 3.0kw Full: Flexibility with double MPPT and native connectivity

The development of a photovoltaic installation in a residential three-phase network requires a inverter Agile, capable of balancing production accurately and efficiently. The Fronius Symo 3.0-3-M full it meets outright with this purpose: simply synchronize continuous energy produced by your solar With the network of your home, lowering energy dependence and cutting the electric bill under the stricst certificates.

Integrated factory intelligent monitoring

The great differential advantage of the inverters solar range Full of Fronius It is the native inclusion of the DataManager communications card. Through your WLAN wireless antenna or by Ethernet cable, the inverter It connects directly to the Internet to dump all the analytical parameters in the free portal Fronius Solar.web. This allows you to supervise from the mobile or the computer the live performance of your solar panels, Record historical consumption and receive automatic alerts without the need to acquire communication gateways or additional external components.

Snapinverter technology and maximum performance in front of shadows

On Tienda Solar We prioritize solutions that simplify both installation and operation. Patented modular design Snapinverter divide the inverter in a fixed wall bracket (where all electrical connection of the photovoltaic plates) and the power stage. In case of technical assistance, the upper electronic block is removed quickly and easily without manipulating the general wiring. Also, when having 2 MPPT Followers, allows designing series In covers with different orientations (such as two-waters west roofs). His algorithm Dynamic Peak Manager It performs periodic scans of the I-V curve to mitigate losses by clouds or partial shadows, always setting the system's ideal operating point.

Specifications techniques (model Symo 3.0-3-M full):

• Nominal output power (AC): 3000 W (3 kW)

• Maximum input power (DC): 6000 W (allows excellent oversizing room in solar)

• Number of MPPT followers: 2

• Start voltage (DC): 150 V

• Nominal input voltage (DC): 595 V

• Maximum input voltage (DC): 1000 V

• Maximum input current (MPPT1 / MPPT2): 16.0 A / 16.0 A

• Short circuit current (MPPT1 / MPPT2): 24.0 A / 24.0 A

• Nominal output current (AC): 4.3 A (balanced distribution in three-phase networks)

• Connection to Network: Three-phase (380V / 400V)

• Degree of environmental protection: IP65 (total sealing against dust and water for outside mounting)

• Serial connectivity: DataManager, WLAN (WiFi), Ethernet, Modbus TCP / RTU and interfaces Fronius Solar API (JSON)

• Refrigeration technology: Intelligent forced ventilation (Active Cooling)

• Net package of the package: 20.0 kg

Frequently Asked Questions (FAQ)

1. What advantages does the "Full" version provide in this 3.0kw model? The model Full Includes the DataManager card installed with WiFi and Ethernet connectivity. Unlike LIGHT versions, it does not require buying additional accessories to monitor the plant on the Internet. If you install several inverters solar Fronius In the same network, it is enough for the first to be full to centralize the communication of all others.
2. Can I connect lithium batteries directly to this inverter of 3000W? Not directly. The range Fronius Conventional Symo encoms inverters solar of connection to pure network and does not have a specific entry for loading lithium batteries. If you are looking for a system with storage capacity, we suggest you explore our section of inverters Hybrids in the store.
3. Do you have this model of zero network injection system? Yes, the inverter solar has the necessary technology to reduce its power and avoid pouring electricity to the network in case your solar They produce more energy than you are consuming. To activate this function, it requires the combined installation of a vatimeter Fronius Smart Meter.
4. Why is an advantage Active Cooling against passive cooling? The system Active Cooling It uses intelligent internal fans that forced dissipate the accumulated heat in the electronics of the inverter solar. This prevents high temperature efficiency losses (derating), Protects internal circuits against thermal peaks and considerably prolongs the durability of the equipment.
