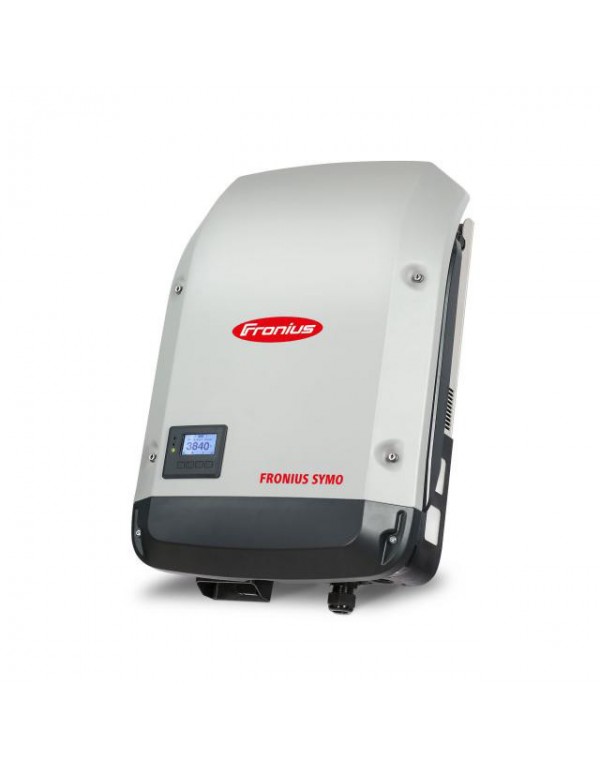

Fronius Symo 20kw Light: High Industrial Power with Smart Hardware Cost

The start-up of a large-scale three-phase solar project with a power of 20kw It requires high-end components that operate under demanding conditions without loss of performance. The inverter network Fronius Symo 20.0-3-M Light assume this role with total solvency, synchronizing the continuous current from your solar With the industrial network of the business to move the daytime consumption of the machinery and immediately collapse the costs of the energy terms of your CE certificate.

Economic advantages of the LIGHT variant in commercial plants

The great advantage of the inverters solar range Light of Fronius lies in the optimization of the initial budget of the project. When you delete the WLAN and Ethernet network interface, you do not pay for a communication hardware that is often redundant. This is especially useful in large industrial covers where multiple ride inverters In waterfall to add high powers: it is enough that one of the units is the "Full" model to act as a data center, dumping the overall performance of the solar panels to the portal Fronius Solar.web.

Snapinverter technology and double current MPPT

On Tienda Solar We select solutions that streamline technical work. Patented modular architecture Snapinverter divides the equipment physically on a fixed mural base (where the entire wiring is permanently connected permanently photovoltaic plates) and the electronic power block. If any maintenance is necessary, the upper block is removed quickly and safely without altering the wiring. Also, when having 2 Asymmetric MPPT Followers With a high input current capacity, it adapts without losses to the current currents of the current high power modules and covered with multiple orientations. Before partial shades or variable cloudiness, its software Dynamic Peak Manager It constantly scans the I-V curve to always ensure the ideal operating point of the system.

Technical specifications (Symo 20.0-3-M Light model):

• Nominal output power (AC): 20000 W (20 kW)

• Maximum input power (DC): 30000 W (Excellent margin for oversizing solar)

• Number of MPPT followers: 2 (Large capacity asymmetric entries)

• Start voltage (DC): 200 V

• Nominal input voltage (DC): 595 V

• Maximum input voltage (DC): 1000 V

• Maximum input current (MPPT1 / MPPT2): 33.0 A / 27.0 A (designed for high current intensities)

• Short circuit current (MPPT1 / MPPT2): 49.5 A / 40.5 A

• Nominal output current (AC): 28.9 A (perfectly balanced distribution at 3 phases)

• Network synchronization: Three-phase (380V / 400V)

• Degree of environmental protection: IP66 / IP65 Certification (Maximum sealing against dust and powerful water jets)

• Serial communications: Light Version (Hardware Datamanager / Factory Not Integrated WiFi / Externally Expandable)

• Thermal management: Intelligent forced ventilation (Active Cooling)

• Net package of the package: 43.4 kg

Frequently Asked Questions (FAQ)

1. What constructive difference does this model of 20kw "light" present in front of the series "Full"? The hardware in charge of the transformation of power, the integrated electrical protections and the outer chassis are identical. The only difference is commercial: the model Light It does not include factory installed the DataManager card to connect to the Internet by WiFi or Ethernet, significantly reducing its acquisition cost.
2. Does this admit inverter of 20000W the connection of lithium batteries? Not directly. The range Fronius Conventional Symo is classified within the inverters solar of connection to pure network. They do not have terminals or control software for loading lithium batteries. If your industrial project requires accumulation of energy to cover night shifts, consult with our technical team of Tienda Solar To assess the appropriate solution.
3. How does the zero injection system act in the LIGHT series? To avoid the displeasure of external power grid (for example, if the legalization procedures of your solar they are in process), the inverter It automatically decreases its production in milliseconds to strictly supply the real demand of your business. Being the LIGHT model, to perform this function requires the external installation of a compatible measuring accessory.
4. Why is Active Cooling essential in a inverter 20kw commercial? When operating continuously, transforming high currents to generate 20KW of nominal power, electronics free heat naturally. The system Active Cooling actively extracts that temperature by an intelligent forced ventilation circuit, which prevents performance losses by overheating (derating) and substantially lengthens the durability of these inverters solar.
