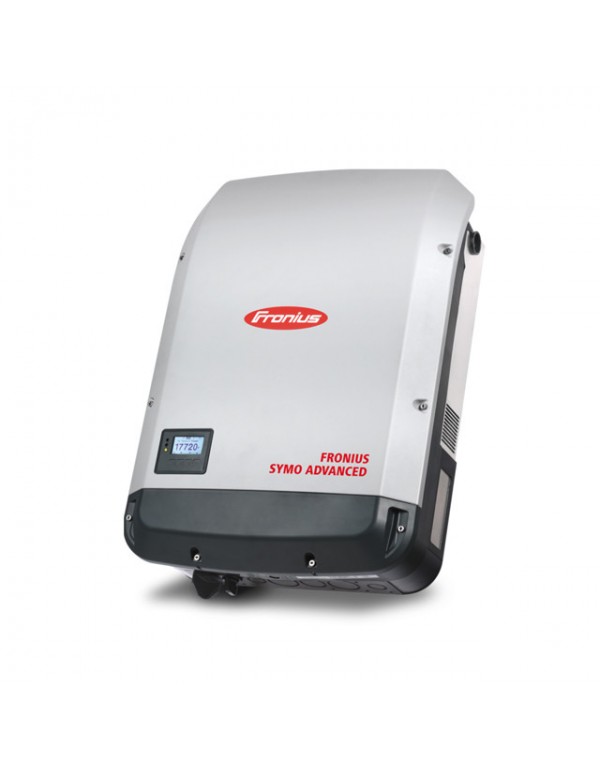

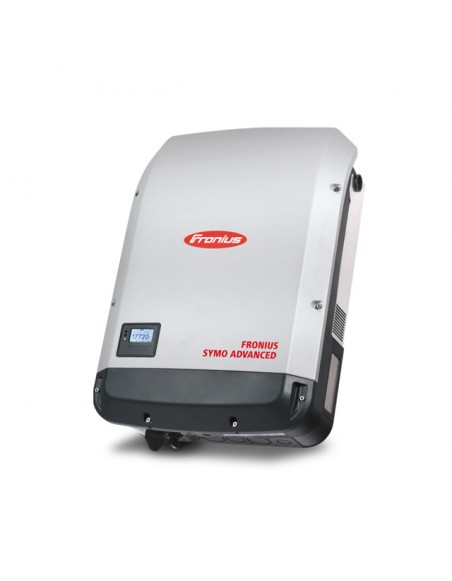

Inverter Solar Fronius Symo 10kw -3-M Light

Fronius Symo 10kw Light: High three-phase power with optimized hardware cost

The start-up of a commercial or residential photovoltaic system of 10kw It requires a robust network manager capable of assimilating high energy flows with total stability. The inverter Fronius Symo 10.0-3-M Light it meets outright with this purpose: syncamably synchronize the continuous current of the solar panels With the three-phase property of the property, protecting all its internal components against short circuits or thermal peaks under the regulations of the CE certificate.

Economic advantages of the Light series in photovoltaic systems

Unlike the variants called Full, the inverters solar line Light They do not include the internal communications card for WLAN or Factory Ethernet. This configuration significantly reduces the purchase price of the hardware, making it the ideal choice for projects where the data visualization on the mobile is not an immediate priority, or in medium environments where several units are operated in parallel and only requires a inverter Main act as communications gateway towards the portal Solar.web.

Snapinverter and Double MPPT design for complex covers

On Tienda Solar We select components that simplify technical processes. Thanks to the patented modular architecture Snapinverter, the assembly is extremely agile: the fixed mural base is installed independently receiving all the wiring of the photovoltaic plates, and the power block is coupled on it later quickly and safely. Also, when having 2 independent MPPT followers Optimized for asymmetric strings, tolerate without losses covered with different orientations or inclinations (as East-West structures). In the presence of clouds or partial shadows caused by chimneys, its intelligent algorithm Dynamic Peak Manager Performs periodic sweeps in the I-V curve to always ensure the system's ideal operating point.

Technical specifications (Symo 10.0-3-M Light model):

• Nominal output power (AC): 10000 W (10 kW)

• Maximum input power (DC): 15000 W (excellent margin for oversizing solar)

• Number of MPPT followers: 2

• Start voltage (DC): 200 V

• Nominal input voltage (DC): 595 V

• Maximum input voltage (DC): 1000 V

• Maximum input current (MPPT1 / MPPT2): 27.0 A / 16.5 A (Optimized for Asymmetric Strings)

• Short circuit current (MPPT1 / MPPT2): 40.5 A / 24.8 A

• Nominal output current (AC): 14.4 A (balanced and efficient distribution in three-phase networks)

• Connection to Network: Three-phase (380V / 400V)

• Degree of environmental protection: IP65 (total sealing against dust and water for outdoor mounting)

• Serial communications: Light Version (Datamanager / WiFi Factory / Expandable Wifi WiFi)

• Thermal management: Intelligent forced ventilation (Active Cooling)

• Net package of the package: 34.8 kg

Frequently Asked Questions (FAQ)

1. What is the real difference between this 10kw "light" model and the "full" version? Both of them inverters Solar exactly share the same power components, mechanical robustness and electrical safety. The only difference is commercial: the model Light It does not include factory installed the Datamanager card to connect to the Internet by WiFi or Ethernet, which remarkably harves its acquisition cost.

2. Does this admit inverter Fronius Symo 10000W The Battery Connection? Not directly. The range Fronius Symo standard encompasses inverters solar of connection to pure network and does not have a specific entry for loading lithium batteries. If your project requires a three-phase system with storage capacity, we suggest you explore our section of inverters hybrid Fronius Symo Hybrid.

3. How is the zero injection system configured in the LIGHT series? To avoid the displeasure of external power grid (for example, if the legalization procedures of your solar panels they are in process), the inverter It decreases instantly its production to cover only the actual demand. Being the LIGHT model, to apply this limitation requires the external installation of a compatible measuring accessory.

4. Why is Active Cooling so important in this inverter solar? By transforming high currents continuously to generate 10kw, the internal components free heat. The system Active Cooling Emphas intelligent internal fans that forced disiliates that room temperature. This avoids heat efficiency losses by heat (derating) And substantially lengthens the useful life of all electronics.
