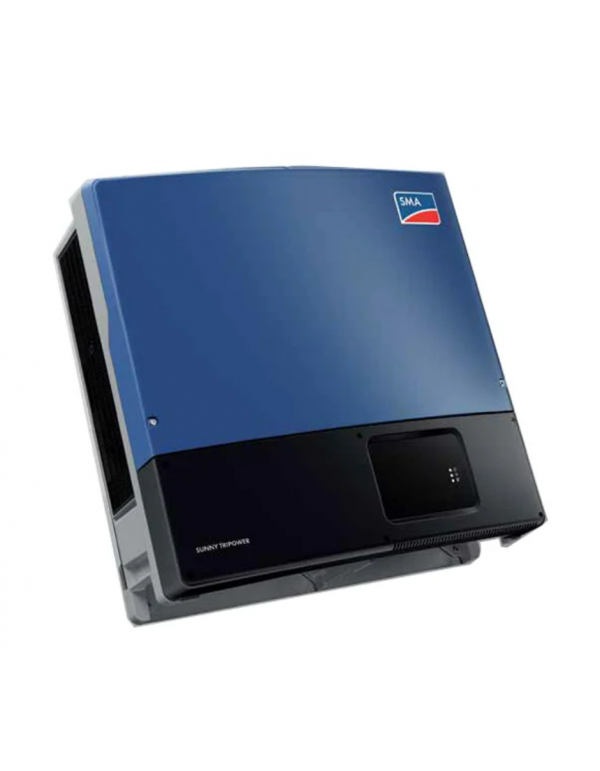

Inverter solar SMA Sunny Tripower STP15000TL-30 (No Display)
STP 15000TL-30
€2,843.38
Tax included
Inverter Three-phase solar for self-consumption or network connection SMA of 15000W AC with 2 MPPT with an efficiency of 98% and a maximum input current of 33 A per inlet with Opticool refrigeration system. The Sunny Tripower line stands out for its profitability, security, wide flexibility and new energy management functions.
The line of inverters Sunny Tripower is protected by short circuits, overloads and high temperatures, will provide trouble-free operation of its three-phase solar installation for many years. Inverter Network connection for solar installations with excellent value for money. It does not include transformer and offers IP65 protection.
Product guarantee of 5 years.
The inverters Sunny Sunny Tripower Solar stand out for the following characteristics:
- - Maximum yield of 98.4%
- - Integrable DC overvoltage discharger (Type II DPS)
- - DC input voltage up to 1000 V
- - Perfect plant design thanks to the concept of multistring
- - Innovative network management functions thanks to Integrated Plant Control
- - Supply of reactive power 24 hours a day (q on demand 24/7)
|
Model
|
Sunny Tripower 15000tl
|
|
Entrance (CC)
|
|
|
Max power. Ad
|
15330 W
|
|
Voltage Max. Entrance
|
1000v
|
|
Range Voltage MPP
|
240 V to 800 V / 600 V
|
|
Input voltage min / start
|
150 V / 188 V
|
|
Max current. input / input B
|
33A / 33A
|
|
Number of independent entries MPP Input / Strings by entry MPP
|
2 / A: 3; B: 3
|
|
OUTPUT (AC)
|
|
|
Power (at 230 V, 50Hz)
|
15000w |
Max. Apparent power AC
15000 VA
Nominal voltage AC
3 / no / PE; 220 V / 380 V
3 / no / PE; 230 V / 400 V
3 / no / PE; 240 V / 415 V
AC tension range
180V to 280V
AC / RANGO Network Frequency
50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Network assigned network / network voltage
50 Hz / 230V
Max current Output / current output current
29 A / 21.7 A
Assigned power power factor / adjustable lag factor
1/0 Inductive A or capacitive
THD
≤ 3%
Injection phase / connection
3/3
Eficienciamax. Efficiency
98.4% / 98%
Protection elements
Internal disconnection point
●
Earthing monitoring / network
● / ●
CC overvoltage discharger: Type II DPS
○
Reverse polarization protection in DC / Short circuit capacity AC / Galvanic isolation
● / ● / -
Residual-polle-sensitive monitoring unit
●
Protection class (IEC 62109-1) / Overvoltage category (IEC 62109-1)
I / AC: III; DC: II
Datosgenerales
Dimensions (width / high / long)
661 mm / 682 mm / 264 mm (26.0 / 26.9 / 10.4 inches)
Weight
61 kg (134.48 lbs)
Operating temperature range
-25 ° C to + 60 ° C (-13 ° F to + 140 ° F)
Emission, typically
51 dB (A)
Self-consumption (night)
1 W
Topology
Transformer
Type of cooling
Opticool
Degree of protection (based on IEC 60529)
Ip65
Climate category (based on IEC 60721-3-4)
4k4h
Max value. allowed for relative humidity (without condensing)
100%
Teams
Connection / Connection
Sunclix / spring connection edge
Screen
○
Interface: RS485, Speedwire / WebConnect
○ / ●
Data interface: SMA Modbus / SunSpec Modbus
● / ●
Multifunction Relay / Power Control Module
○ / ○
Optitrack Global Peak / Integrated Plant Control / Q On Demand 24/7
● / ● / ●
Compatible with isolated networks / with SMA Fuel Save Controller
● / ●
Warranty: 5/10 / 15 years
● / ○ / ○
Certificates and Approvals
ANRE 30, AS 4777, BDEW 2008, C10 / 11: 2012, CE, CEI 0-16, CEI 0-21, EN 50438: 2013 *, G59 / 3, IEC 60068-2-X, IEC 61727, IEC 62109-1 / 2, IEC 62116, NBR 16149, NEN EN 50438, NRS 097-2-1, PPC, RD 1699/413, RD 661/2007, Res. N ° 7: 2013, SI4777, Tor D4, TR 3.2.2, UTE C15-712-1, VDE 0126-1-1, VDe-AR-N 4105, VFR 2014
Reference
STP 15000TL-30
- Power (kW)
- 15 - 19.9
- Phase Type
- Three-phase
- Max Current Input (A)
- 20+
