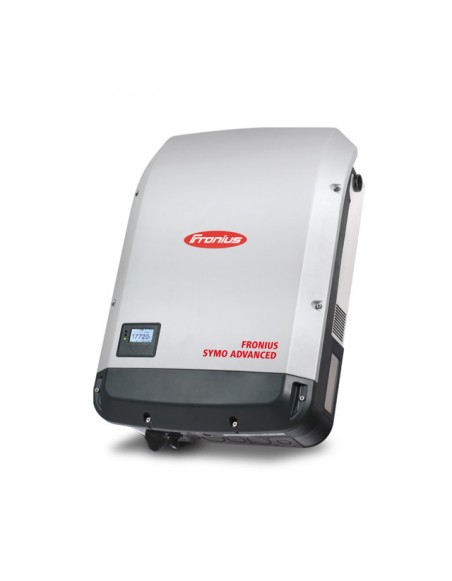

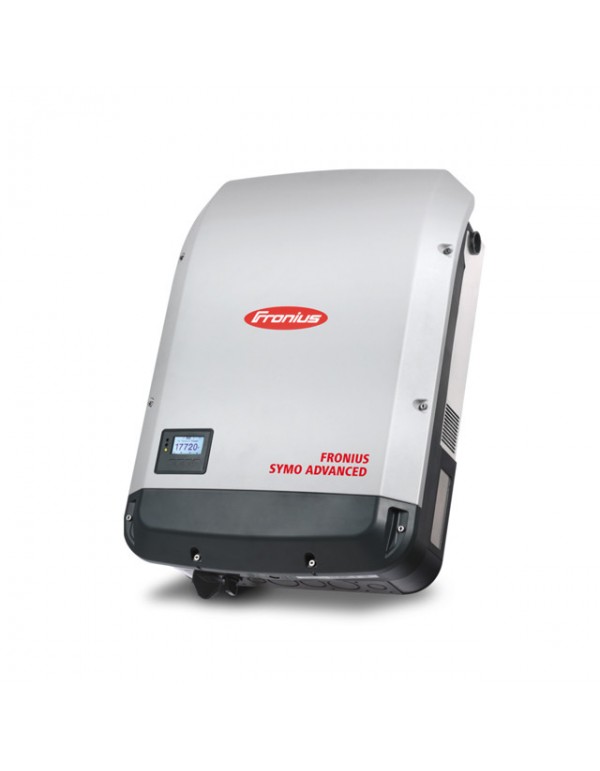

Inverter Solar Fronius Symo 10kw -3-M Full | Inverters Three-phase solar for large consumption

Fronius Symo 10kw Full: Power and advanced connectivity for demanding projects

Give the jump to a three-phase photovoltaic installation of 10kw It requires an electronic brain of maximum reliability. The inverter network Fronius Symo 10.0-3-M Full It manages high-volume energy flows, synchronizing the direct current generated on the roof with the distribution network to drastically and immediately reduce the fixed electricity costs of any residential business or property.

Native data management with Fronius Solarweb

Unlike the most basic models that require external communication gateways, the inverters solar in its edition Full They integrate everything necessary for digital monitoring. When linking by WiFi or Ethernet cable with the property router, the equipment continuously sends performance metrics to the free portal Fronius Solar.web. This allows to visualize the production of the solar panels and consumption patterns from your smartphone, optimizing the guidelines for use of appliances or machinery.

Design Snapinverter and efficiency before shaded

On Tienda Solar We highlight the value of modular architecture Snapinverter. The inverter It is divided into a fixed wall mounting base (where all wiring is performed photovoltaic plates) and the upper power block. This separation causes maintenance or technical replacement tasks to be carried out in record time. Also, if your cover presents obstacles such as chimneys or trees, the integrated algorithm Dynamic Peak Manager It makes constant scans of the I-V curve to locate the ideal work point of the MPPT, avoiding energy losses associated with partial shadows.

Technical specifications (Symo 10.0-3-M Full model):

• Nominal output power (AC): 10000 W

• Maximum input power (DC): 15000 W (allows an excellent level of oversizing in solar)

• Number of MPPT followers: 2 (Asymmetric entrance)

• Start voltage (DC): 200 V

• Nominal input voltage (DC): 595 V

• Maximum input voltage (DC): 1000 V

• Maximum input current (MPPT1 / MPPT2): 27.0 A / 16.5 A (optimized for high currents)

• Short circuit current (MPPT1 / MPPT2): 40.5 A / 24.8 A

• Nominal output current (AC): 14.4 a

• Connection to Network: Three-phase (380V / 400V)

• Degree of protection: IP65 (suitable for assembly to the weather)

• Serial communications: Integrated Datamanager, WiFi, Ethernet, Modbus TCP / RTU SunSpec Y Fronius Solar API

• Refrigeration technology: Smart forced ventilation (Active Cooling)

• Team weight: 34.8 kg

Frequently Asked Questions (FAQ)

1. What advantages does the entry current of this 10KW model offer? The Fronius Symo 10kw has a reinforced main MPPT entrance that supports up 27a. This difference from the lowest powers of the range and makes it fully compatible with solar Modern large format and raised currents.
2. Can I connect lithium batteries directly to this equipment? Not directly. The conventional Symo series is a range of inverters solar Pure network connection without dedicated storage entry. If your intention is to add lithium batteries In a three-phase network, we recommend you explore the hybrid series Fronius In our catalog.
3. Is it mandatory to configure the zero injection system? It is not mandatory, but very useful. If you are waiting for the permissions of legalization of your solar panels or local regulations prohibit export energy, the inverter It regulates its production in real time to supply only your internal consumption, guaranteeing a null discharge.
4. Why is Active Cooling so important in a inverter of 10kw? By managing 10000W of power, the internal components free heat. The system Active Cooling Forcedly extracts that hot air through regulated internal fans. This prevents high temperature efficiency losses and prolongs the lifespan of all electronics of the inverter solar.
