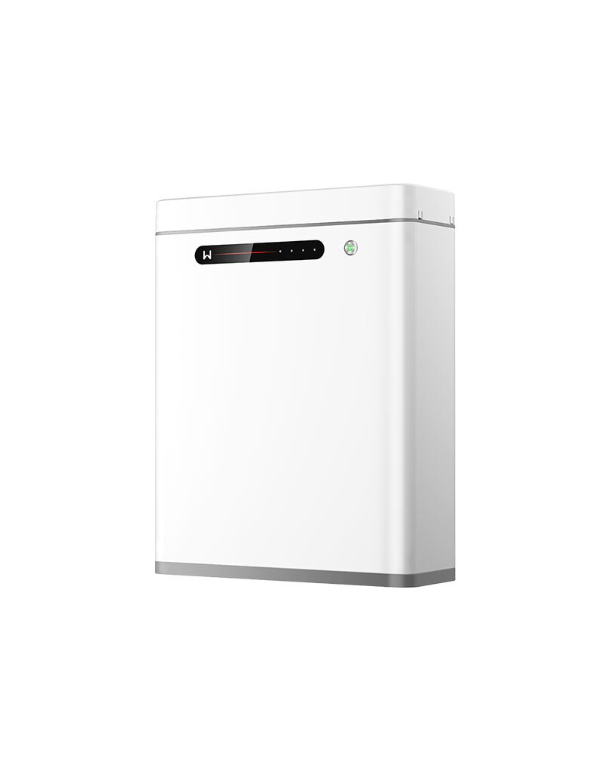

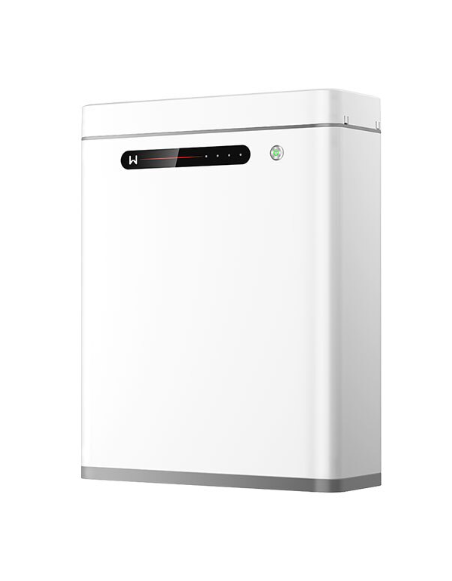

Lithium battery GoodWe Lynx U G3 5.12KWh 48V

With a nominal capacity of 5.12 kWh and a useful energy of 5 kWh, this low-voltage battery (51.2v) is equipped with lifepo₄ cells, recognized by thermal stability, safety and long life. Its life cycle exceeds 6000 cycles at 90% depth of discharge, which guarantees years of constant performance.

Featured technical characteristics:

Nominal voltage: 51.2v

Maximum load current: 90A

Maximum discharge current: 100A

Continuous loading / unloading: 4.95 kW

Full cycle efficiency: ≥96%

Operating temperature range: -20 ° C to 55 ° C (with optional heating)

IP65 protection: ideal for interiors and outdoor

Weight: 50 kg

Dimensions: 460 × 580 × 160 mm

Assembly: on wall or floor

Certifications: VDE2510-50, IEC62619, IEC62040, UN38.3, ROHS

Scalability and compatibility:

You can connect up to 30 units in parallel, reaching a total capacity of 150 kWh, which makes it a flexible solution for both single-family homes and for more demanding facilities. In addition, it is fully compatible with inverters hybrid GoodWe, which facilitates its integration into new or existing solar systems.

Frequently Asked Questions (FAQ)

What type of battery is the Lynx or G3?

It is a LFP lithium battery (lifepo₄), known for its safety, stability and long life.

Can I install it outdoors?

Yes, thanks to its IP65 protection, it is suitable for installation both indoors and outdoor.

Is it compatible with others inverters?

Is optimized for inverters hybrid GoodWe. For other models, it is recommended to verify compatibility with the manufacturer.

How many batteries can I connect?

Up to 30 units in parallel, reaching a total capacity of 150 kWh.

Does it require maintenance?

No, it is a battery-free maintenance with a lifespan greater than 10 years under normal conditions.

What happens if there is a light cut?

If it is connected to a hybrid system with backUp, You can supply power during blackouts.
