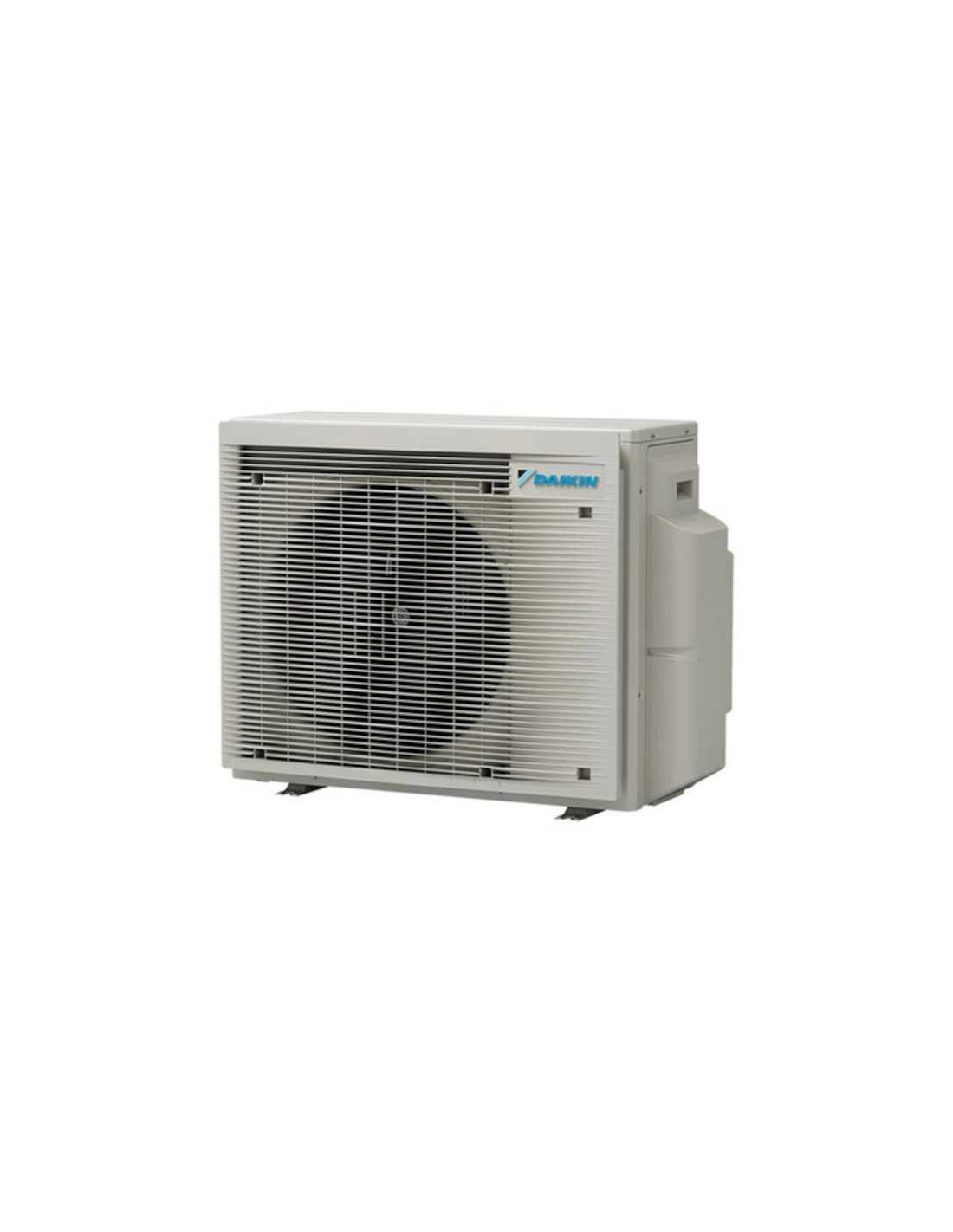

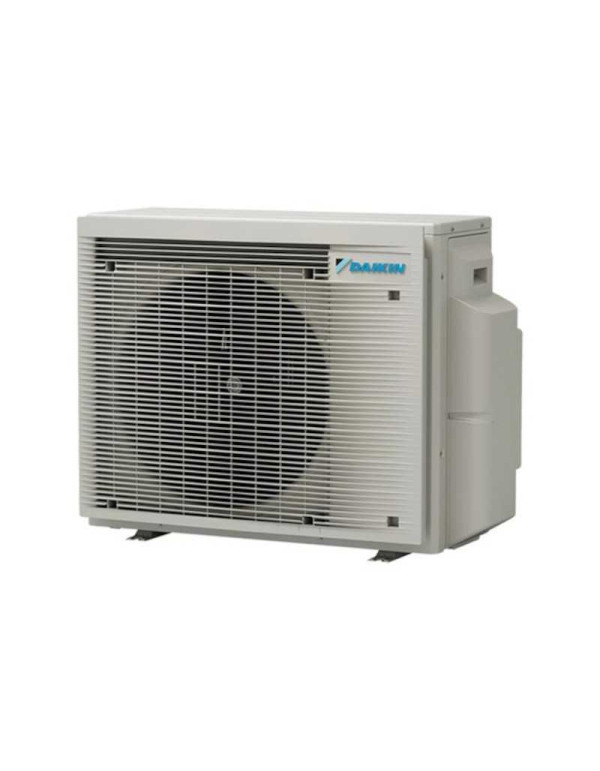

Outdoor unit Daikin Sensira Multi 3MXF52A9

Air conditioning up to 3 stays with a single exterior equipment

3MXF52A9 represents the next step inside the Multi Sensira range, allowing air conditioning 3 independent stays (For example, two bedrooms and a lounge) with a single outdoor unit, further reducing the façade impact on installing individual equipment or even 2x1 systems. Your combination example (2 units of class 25 and 1 class 35) Allows you to adapt the power of each stay at its real size, avoiding oversizing the smallest rooms.

Despite managing 3 indoor units, it maintains a Seer from 7.6, slightly lower than the 2MXF50A model (7,88) but greater than 2MXF40A (7.35), demonstrating that efficiency is maintained at very competitive levels even when distributing the load between three different stays. Complement this system with your solar It is especially interesting in homes where several rooms are climated simultaneously, given the greater added consumption of the whole.

Greater installation scope for more complex projects

3MXF52A9 admits a Maximum tubing length of 50 meters, SENSIOUSIAN higher than 30 meters from the 2x1 models, distributed among the 3 connection lines (each between 3 and 25 meters). This greater available length facilitates projects where the rooms to be climated are further away from each other or the optimal location for the outdoor unit, typical in housing of greater surface or several plants.

Detailed technical characteristics

Performance:

• Nominal capacity Refrigeration: 5.200w
• Nominal capacity Heating: 6.800w
• Nominal consumption Refrigeration: 1.240w
• Nominal consumption Heating: 1.690w
• SEER / SCOP Middle: 7.6 / 4,26
• Energy label (refrigeration / heating): A ++ / A +
• Refrigeration design load: 5,2kw
• Loading design Heating (-10 ° C): 5kw
• Combination example: 2 Units Class 25 + 1 unit Class 35

Mechanical data:

• Air flow (high / medium / silent): 42/42/24 m³ / min
• Connection of pipe (liquid): 6.35mm x 3
• Pipe connection (gas): 9.5mm x 1, 12.7mm x 2
• Coolant: R-32, 1.8kg (1,22 TCO2EQ, PCA 675)
• Dimensions (X an X FO): 734 x 973 x 385mm
• Weight: 57kg
• Acoustic power level: 59dba

Installation:

• Maximum tubing length (total): 50m
• Maximum level difference: 15m
• Min-max length per unit indoor: 3 ~ 25m
• Level difference between units: 7,5m
• Preload to: 30m
• Additional refrigerant load: 0.02kg / m (for pipes greater than 30m)

Frequently Asked Questions (FAQ)

1. How many internal units can I connect to 3MXF52A9?
Until 3 interior units wall, with a typical example combination of two class 25 units and a class 35.

2. Is it more efficient than 2x1 models?
Maintains a Seer from 7.6, greater than 2MXF40A (7,35) although slightly lower than 2MXF50A (7,88), a remarkable performance considering that it manages a third additional indoor unit.

3. How maximum distance does it admits to the interior units?
Admits a total tubing length of up 50 meters, distributed among the 3 lines (each of between 3 and 25 meters), higher than that of the 2x1 models.

4. What interior units are compatible?
It is compatible with the interior units of the SENSIRA range, such as the models Ctxf25c / f or Ctxf35c / f, combinable according to the needs of each stay.

5. Can I feed it with solar energy from my photovoltaic installation?
Yes, being a standard electrical equipment, you can feed on your energy solar, especially profitable given the highest added consumption of air conditioning 3 rooms. Consult more technical content in the Blog Tienda Solar.
