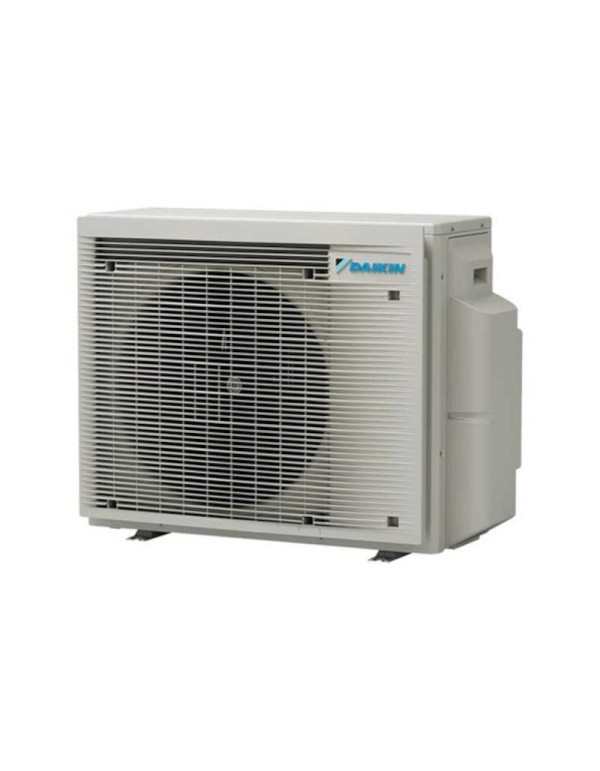

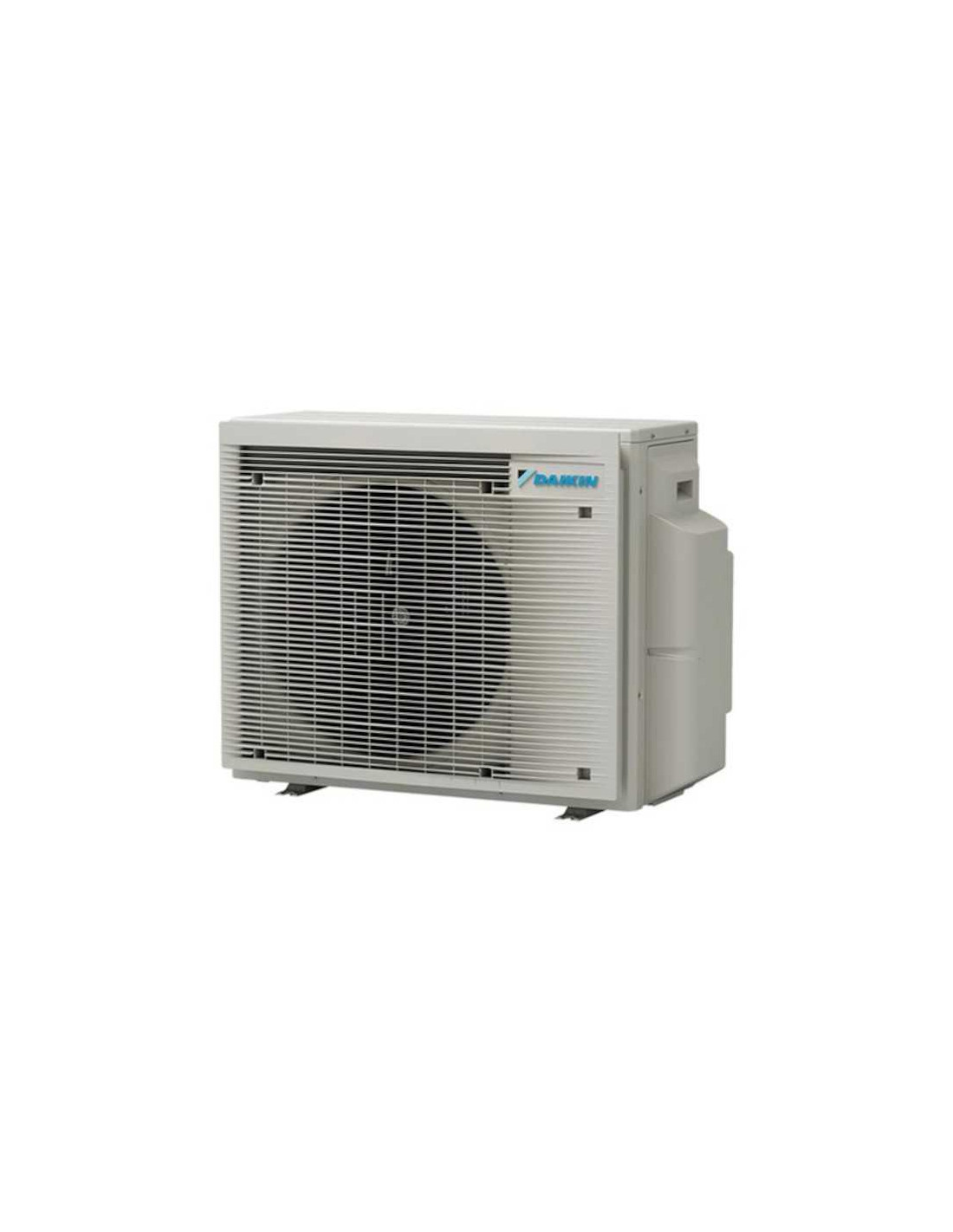

Outdoor unit Daikin Sensira Multi 2MXF50A
Outdoor unit Daikin Sensira Multi 2MXF50A

Outdoor unit Daikin Sensira Multi 2MXF50A

2MXF50A
€1,226.94
Tax included

The outdoor unit Daikin Sensira Multi 2MXF50A It is the condenser module of the highest range of the range Multi Split 2x1, able to feed up 2 interior units wall simultaneously with technology Inverter and heat pump. Reaches a Nominal capacity in 5,000W refrigeration and in 5,600W heating, with a Seer of 7,88 and a SCOP of 4.32, the highest efficiency of the entire multi sensira series, with Energy label A ++ cold and A + in heat. Use the refrigerant A-32 (1,15kg), with connections 6.4mm in liquid and 9.5mm / 12.7mm in gas, admitting an example combination of 1 class 35 unit and another class 25. Dimensions of 550 x 852 x 330mm, a weight of 41kg, 60dba of acoustic power and up 30 meters of total pipe Between both interior units connected.



The most efficient outdoor unit of the multi sensira range

The 2MXF50A stands out within the series by offering the Seer highest of the entire multi-range Sensira range (7,88), surpassing even the lower power model 2MXF40A (Seer 7,35), thanks to a more efficient management of the Inverter compressor when working with higher power loads. This makes it the most recommended option when seeking to maximize energy savings in a two-room system, without giving up higher available power.

Its example combination (1 class 35 unit and another class 25) It allows to air condition two different sizes, such as a living room and a bedroom, each with the proper power to its real surface, avoiding the oversized that would mean installing two identical units of larger size. Feed this system with the energy of your solar It is especially profitable given its greater absolute consumption with respect to the 2MXF40A.

Extended gas connection for greater power

Unlike 2MXF40A, which uses the same gas connection diameter in both lines (9.5mm x2), the 2MXF50A incorporates a Extended connection of 12.7mm In one of its two lines, reflection of the higher power that can deliver towards the upper class indoor unit in the recommended combination.

Same installation flexibility than the rest of the range

Despite its highest power, the 2MXF50A maintains exactly the same installation dimensions as the 2MXF40A: 30 meters of total pipe, 15 meters of maximum level difference and 7.5 meters between interior units, Facilitating the replacement or the size of projects without changing the usual installation parameters.

Detailed technical characteristics

Performance:

  • Nominal capacity Refrigeration: 5.000w
  • Nominal capacity Heating: 5.600w
  • Nominal consumption Refrigeration: 1.246w
  • Nominal consumption Heating: 1.372w
  • SEER / SCOP Middle: 7,88 / 4,32
  • Energy label (refrigeration / heating): A ++ / A +
  • Refrigeration design load: 5kw
  • Loading design Heating (-10 ° C): 4,2kw
  • Combination example: 1 unit Class 35 + 1 unit Class 25

Mechanical data:

  • Air flow (high / medium / silent): 37/34/20 m³ / min
  • Connection of pipe (liquid): 6.4mm x 2
  • Pipe connection (gas): 9.5mm x 1, 12.7mm x 1
  • Coolant: R-32, 1,15kg (0.78 TCO2EQ, PCA 675)
  • Dimensions (X an X FO): 550 x 852 x 330mm
  • Weight: 41kg
  • Acoustic power level: 60dba

Installation:

  • Maximum tubing length (total): 30m
  • Maximum level difference: 15m
  • Min-max length per unit indoor: 3 ~ 20m
  • Level difference between units: 7,5m
  • Preload to: 20m
  • Additional refrigerant load: 0.02kg / m (for pipes greater than 20m)

Frequently Asked Questions (FAQ)

1. How many interior units can I connect to 2MXF50A?
Until 2 interior units wallpaper, with a typical example combination of a class 35 unit and another class 25.

2. How is 2MXF40A difference?
It offers greater power (5,000w in front of 4,000W cold) and one Upper efficiency (Seer 7.88 compared to 7,35), being the most efficient outdoor unit of the entire multi-sensira range.

3. Why do the two gas connections have different diameters?
Because it is designed to be combined with interior units of different power (class 35 and class 25), so one of the lines requires a higher pipe section (12.7mm).

4. How maximum distance does it admits to the interior units?
Admits a total tubing length of up 30 meters, with the same installation dimensions that the rest of the multi-sensira range.

5. Can I feed it with solar energy from my photovoltaic installation?
Yes, being a standard single-phase electrical equipment, you can feed on the energy of your solar, optimizing savings given its greatest absolute consumption. Consult more technical content in the Blog Tienda Solar.
