FOX ESS BRACKET BATTERY BATTERY BATTERY BATTERY...

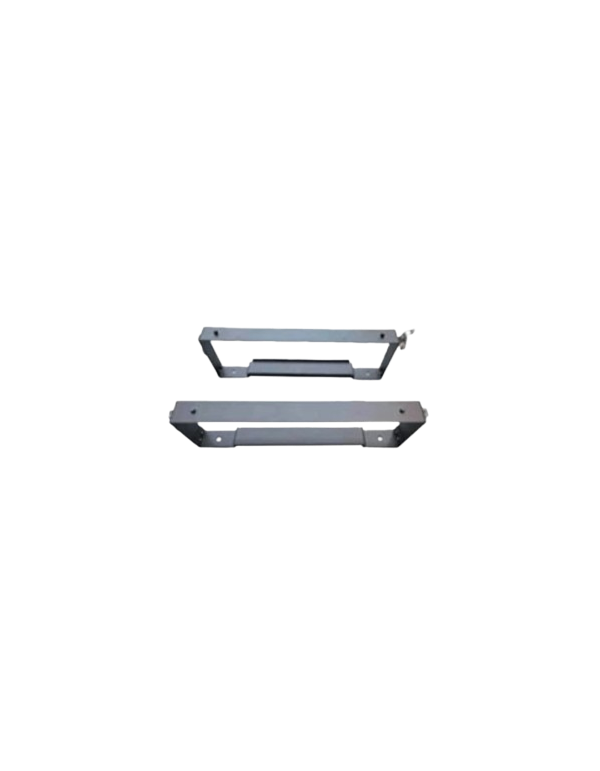

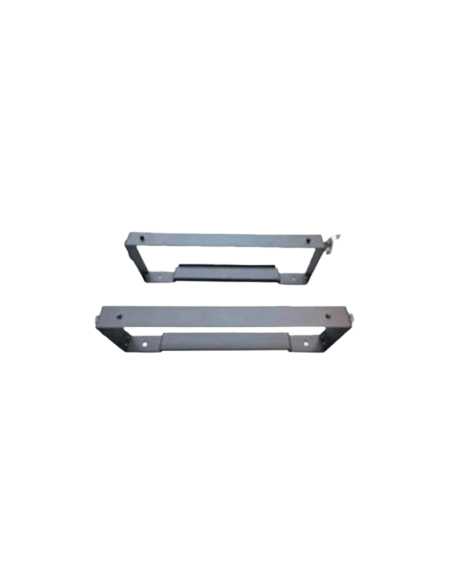

FOX ESS BRACKET BATTERY BATTERY BATTERY BATTERY MIRA HV25

FOX ESS BRACKET BATTERY BATTERY BATTERY BATTERY MIRA HV25

MIRAHV25BRACKET
€43.52
Tax included

The Fix ESS Bracketing supports For Battery Mira HV25 are indispensable structural components designed to ensure mechanical stability and correct installation in vertical of high voltage storage modules. Manufactured with high strength metal materials, these brackets allow a secure anchor directly on the wall or support structures, maintaining the perimeter separation required by the manufacturer to optimize the cooling by natural ventilation and ensure a correct flow Thermal between the lifepo4 prismatic cells. This original fixing kit facilitates a symmetric and modular mounting type Plug and play, speeding up the workmanship time of the installer by allowing the overlapping of up to 8 serial battery modules under the control of the Mira-BMS smart module, ensuring the structural integrity of the accumulator bank against vibrations or accidental movements.



Fox ESS Bracket: Structural Safety and Thermal Optimization for Systems Mira HV25

The installation of a high-voltage accumulation bank for the own consumption Photovoltaic not only requires the correct electrical connection of its components, but also a robust mechanical design that preserves the physical integrity of the system along its more than 6000 life cycles. Original supports Fox ESS Bracket For the battery, Mira HV25 professional solve the structural anchor of these modules, which present an individual weight of 26 kg. When using the original manufacturer's hardware, it is ensured that the mechanical load is distributed evenly over the wall anchor points, mitigating any risk of expiration or misalignment in configurations that make up several modules in series.

Natural ventilation and safety spacing according to factory standards

One of the critical factors that determines durability and photovoltaic performance of lithium cells is the management of its operating temperature (0-55 ° C in load and -10-55 ° C in download). FOX ESS Bracketing supports have been designed respectedly the physical tolerances of the module Mira HV25 (480 x 122 x 420 mm). Its geometry ensures optimal separation with respect to the mounting surface, which favors the cooling method by natural ventilation specified in the manufacturer's technical sheet. This avoids the accumulation of residual heat bags between the stacked blocks, improving the overall efficiency of the installation and protecting the system of premature degradations by thermal stress.

Featured technical characteristics:

  • Absolute compatibility: Designed exclusively for the Battery Slave Module Fox ESS Mira HV25 of 2.45KWh and the main controller Mira-BMS.
  • Mechanical function: Ensures firm wall fixation or auxiliary structures of the storage system components.
  • Optimization of space: It allows the stack and the clean and tidy vertical alignment of up to a maximum of 8 modules in series compact.
  • Respect for thermal design: It facilitates the ideal perimeter separation for the correct functioning of the natural ventilation method.
  • Mechanical security: Efficiently supports the 26 kg net weight corresponding to each battery unit coupled.
  • Agility in the assembly: Simplified anchoring system that drastically reduces the installation time and labor of the technician in the field.
  • Premium durability: Metallic structure treated against corrosion and fatigue of materials for an indoor lifespan comparable to that of the battery.

Frequently asked questions (FAQ):

1. How many brackets or brackets do I need to install my Fox ESS battery system?

Each support kit is dimensioned to anchor and secure the corresponding blocks of the installation. A fixing set is usually required to keep aligned and firm modules Mira HV25 and the Mira-BMS controller that make up the series accumulation tower.

2. Can universal supports be used instead of the original Fox ESS brackets?

It is not recommended at all. The original brackets are die-cut to match exactly 480 mm width chassis clamping points HV25. Using generic supports Commits the stability of 26 kg by module and could cancel the battery guarantee.

3. Are these supports to improve the temperature and operation of the battery?

Yes. The supports guarantee a controlled physical distance between the wall and the lithium modules, allowing the cooling system by natural ventilation to act effectively dissipating the heat generated during the intensive charging and unloading cycles.

4. Can I install the brackets on an external wall exposed to the weather?

The manufacturer specifies that the Batteries Mira HV25 and the Mira-BMS controller have an IP21 degree of protection, being destined exclusively for indoor locations (such as garages or technical rooms). Therefore, the supports must be installed in indoor spaces protected from the rain.

5. What additional tools and fittings are required to fix the supports to the wall?

The kit includes unions and plates for direct coupling to the battery chassis of 26 kg. The installer must provide the appropriate metric tacos and screws according to the material of the support wall (concrete, solid brick or reinforced plaster) to guarantee the resistance of the structure.
