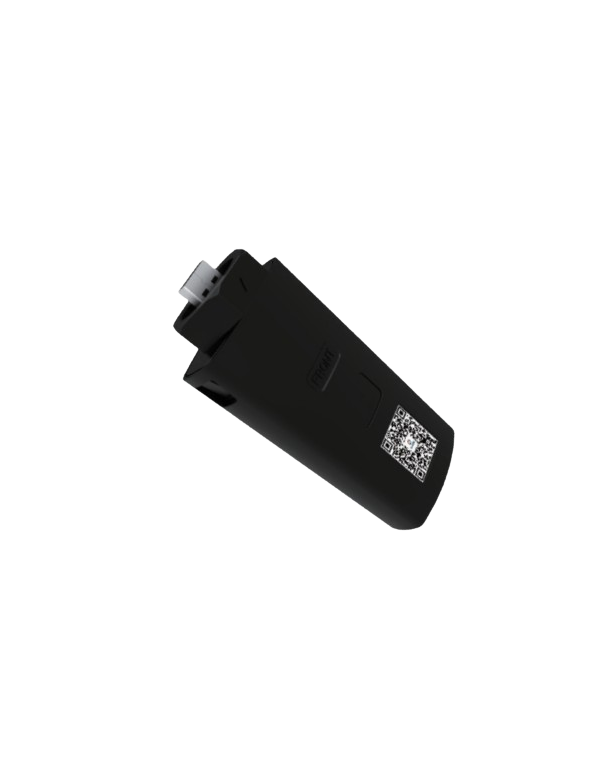

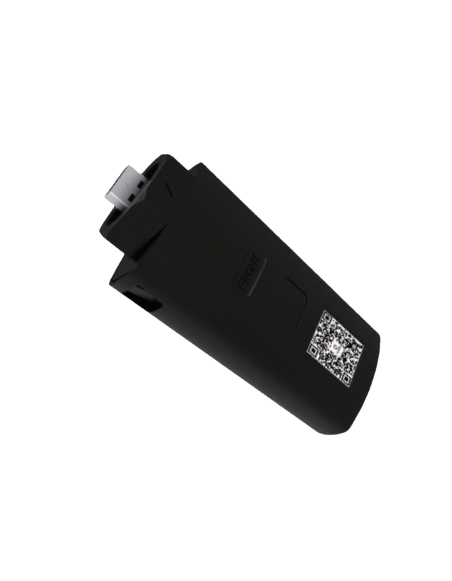

Fox ESS SMART 4G Datalogger Monitoring Module ESS SMART 4G DATATARGGER USB

FOX ESS SMART 4G: High stability cellular connectivity, Plug & Play installation and plant supervision isolated

Guaranteeing the constant transmission of operating data is a critical factor to ensure long-term profitability on any solar plant. The data recorder Fox ESS SMART 4G it has been developed to solve communication problems in those homes, rustic farms or industrial warehouses that lack a broadband Internet connection per router or whose local wireless signal is unstable. By using the infrastructure of 4G LTE mobile cellular networks, this device provides an independent and high-power channel to export all production metrics directly to manufacturer's servers. You can find more details about the compatibilities of this device in the official technical file entitled Single-Phase-F-Series-Fox.pdf.

Uninterrupted supervision 24/7 and cloud synchronization

The technological heart of this module is connected directly with the advanced platform Fox ESS Cloud. Through an intuitive mobile application or from its official web portal, both installation owners and installers are the ability to view photovoltaic performance in real time, consult the historical self-consumption records and receive instant notifications before any System alert.

This continuous monitoring 24 hours a day is vital to optimize maintenance routines and ensure that the components of the plant, such as the inverters network or storage systems with lithium batteries, Operate within your optimal ranges. The device internally incorporates a large pCB type antenna and a solidly mounted SIM card socket that ensures optimum signal reception even in environments with complex covers.

Compact design resistant to the weather and installation without configuration

Faithful to the simplicity philosophy of the brand, the Fox ESS SMART 4G has a type USB connector that allows an immediate start-up. Simply attach the skewer directly into the dedicated port of the inverter for the datalogger to start receiving power (range from 7 to 12V DC) and blinking, eliminating the need to perform auxiliary wiring or complex network configurations on the site.

Mechanically, its housing is made of high quality technical plastic materials that have classification of UL94V-0 fire resistance and maximum immunity against ultraviolet rays (F1). Thanks to its degree of protection IP65 against dust and humidity, this accessory can operate with total peace of mind in inverters installed to the weather under severe weather conditions. By integrating this type of intelligent monitoring, you protect the investment made in your solar and in the structures for solar of your installation.

Technical characteristics:

• Commercial model: SMART 4G (version for the European Union).
• Type of connection: USB port to live type.
• Supported radio frequencies (FDD): Bands B1, B3, B5, B7, B8 and B20.
• Supported radio frequencies (TDD): Bands B38, B40 and B41.
• Supported GSM frequencies: Bands B3 and B8.
• Input voltage required: From 7 to 12 V DC.
• Typical energy consumption: 1 W.
• Internal communication interface: RS485 (speed of 9600 BPS).
• Type of antenna: Integrated internal antenna in PCB.
• Slot for SIM card: Integrated and fixed internally on PCB.
• Degree of environmental protection: IP65 (suitable for exterior mounts).
• Classification of fire resistance: Ul94v-0.
• UV immunity: Certification F1 versus solar degradation.
• Range of operating temperature: From -20 to +60 degrees.
• Supported relative humidity: From 0 to 95% (without condensation).
• Maximum operating altitude: Less than or equal to 4000 meters.
• Physical dimensions: 110 mm long x 48 mm wide x 27 mm thick.
• Net weight: 50 grams.

Frequently Asked Questions section (FAQ)

1. When should you choose the Fox ESS SMART 4G module instead of a conventional WiFi antenna?

This module must be selected in isolated installations, rural areas or industrial locations where there is no nearby Wi-Fi router or the Internet signal is unstable. When working with 4G mobile networks, it guarantees data transmission autonomously.

2. How is the physical installation of this datalogger performed in the inverter?

The installation is completely "Plug and Play". Only you must connect the USB type A port of the device in the lower slot intended for monitoring in your inverter Fox ESS. The inverter will recognize the module and provide you with the necessary power to work.

3. What degree of protection has the Fox ESS SMART 4G if the inverter is it mounted outside the house?

The chassis has an IP65 certified protection degree, which means that it is totally sealed in front of dust and water jets or intense rains. In addition, its technical plastic has UV protection F1 to prevent the Sun from the exterior degrade.

4. Is it necessary to hire a line or put a special SIM card within the device?

Yes, the device requires an active SIM card with a mobile data plan to communicate with the Fox ESS Cloud cloud. The Technical Sheet indicates that it is prepared with internal support for compatible global operators such as Vodafone to ensure a great coverage.

5. What parameters of the photovoltaic installation can be controlled from the mobile with this equipment?

It allows to supervise in real time the power generated by the solar, the battery charge status (if any), the housing consumption flows and the full history of alerts or technical failures to ensure optimal photovoltaic performance.
