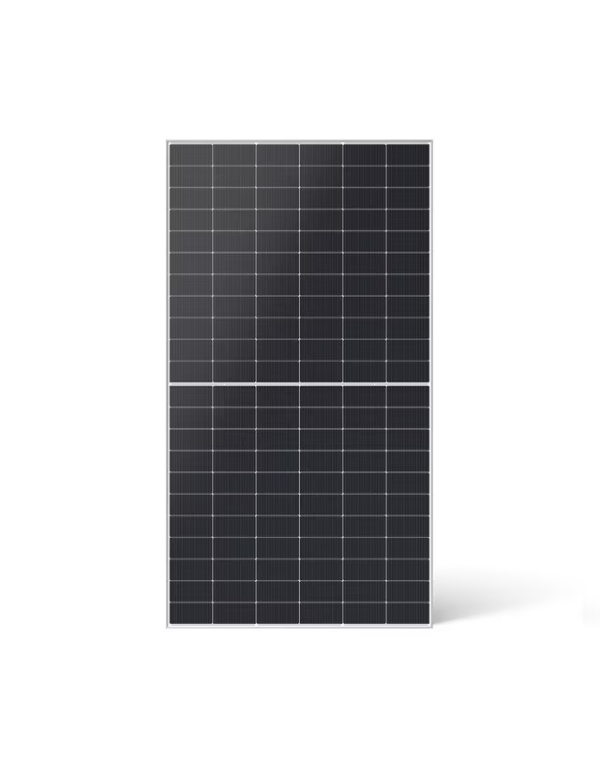

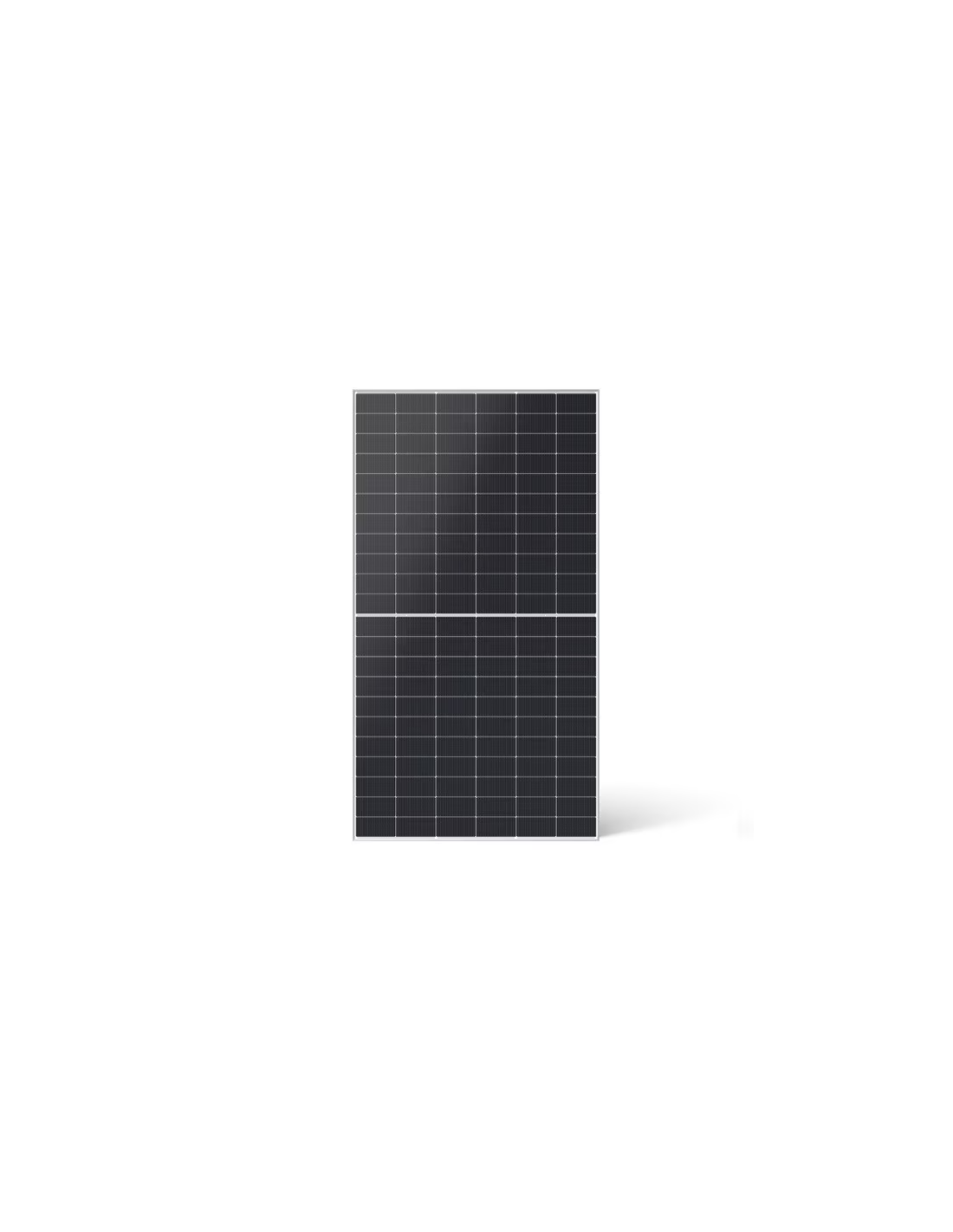

Solar panel JA Solar 720W JAM66D46-720 / LB Bifacial

Benefits of the solar panel JA Solar Jam66d46-720 / lbs

The module JA Solar Jam66d46-720 / lbs Highlights in the large-scale market due to its insurmountable energy efficiency and mechanical durability. By incorporating silicon wafers No-type, this model naturally eliminates the problems associated with light-induced degradation (Lid), ensuring an optimum return on investment and a lower level of energy (Lcoe). Is the ideal component to connect large inverters solar and optimize the economic performance of the plant.

Its factor Bifiality of up to 80% (± 10%) It allows to capture diffuse radiation and reflected in the back, adding up to a 25% extra power soil. Also, it has an excellent Temperature coefficient of -0.30% / ° C, minimizing extreme heat power losses. Its design of double glass Protects cells against corrosive environments, humidity and effect PID, making it suitable to ride on solar On land of high climatic demand.

Detailed technical characteristics

• Maximum nominal power (PMAX): 720w under standard conditions of STC measurement.
• General efficiency of the module: Certified performance 23,2%.
• Voltage at maximum power point (VMP): Tension of working regulated in 40.15 V.
• Current in point of maximum power (imp): Nominal current intensity of 17.94.
• Open circuit voltage (VOC): Maximum vacuum voltage measured in 48,32 V.
• Short circuit current (ISC): Security current intensity 19.12.
• Physical structure of protection: High transmission semi-working double glass with tight encapsulation.
• High security connection box: Sealing protection Ip68 With integrated bypass diodes.
• Structural physical dimensions: Industrial format chassis 2384 mm x 1303 mm with a thickness of 33 mm.
• Net weight of the component: Sturdy weight 38.3 kg Adapted to support extreme climate pressures.

Frequently Asked Questions (FAQ)

1. What real benefits does this module provide to be bifacial and double glass?

Being a module bifacial, produces electricity clean as much on its front and back face, taking advantage of the light reflected by the soil. The double glass design (Dual Glass) replaces the traditional posterior plastic sheet by tempered glass, completely blocking the moisture entry, reducing microfisses by mechanical torsion and eliminating degradation by induced potential (PID).

2. Is this 720W module compatible with inverters Standard residential?

Due to its high short circuit current 19.12, this solar panel is mainly designed for commercial and industrial facilities. It is not usually compatible with inverters Conventional residential low current. For this type of large-scale projects, it is recommended to connect it to inverters networking High power compatible with entry currents greater than 18 A.

3. What type of guarantee does it offer JA Solar for the jam66d46-720 / lb model?

JA Solar It offers a linear guarantee of power 30 years directly supported by the stability of your cells No-type. The module guarantees a degradation lower than 1% during the first year and a maximum wear strictly limited to 0.4% annually from the second year, retaining at least the 87.4% of its original capacity at the end of the three decades.

4. Can they be monitored individually if I use microinverters?

Yes, it is completely viable in commercial systems where the topology of the roof requires mitigating individual shadows or controlling each panel in an isolated manner. You should always verify that the microinverters selected support the high nominal power of 720w and the continuous current ranges of this large format module.

5. What maintenance or assembly considerations requires this panel of 38.3 kg?

For their dimensions of 2384 mm x 1303 mm and his weight of 38.3 kgrequires mechanical or manual manipulation by two professional installers. It must be anchored about solar reinforced capable of holding certified mechanical loads of 5400 PA. Being Bifacial, it is crucial not to obstruct the back of the module so as not to reduce the additional energy gain. If the installation has accumulation, you can combine the system optimally with lithium batteries.
