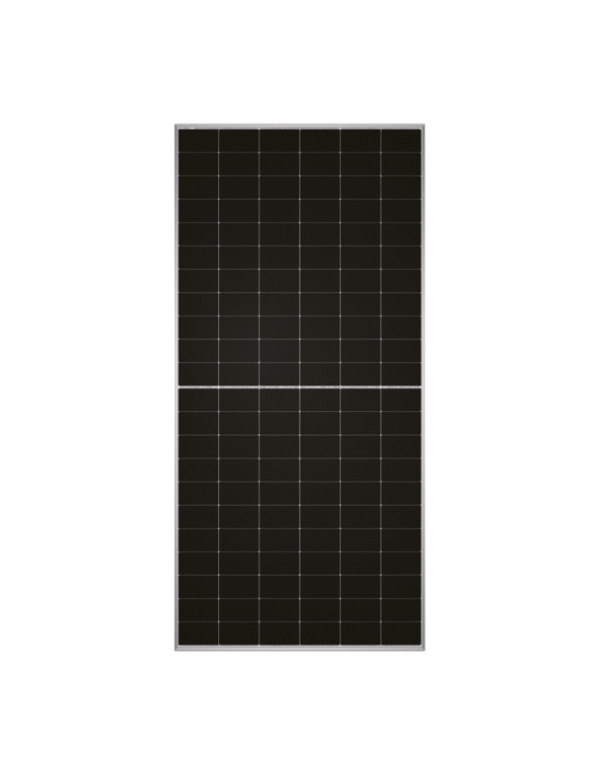

Tongwei 635W Solar Panel (TWMNH-66HD) | High efficiency N-Type solar panels

Tongwei 635W: TNC Innovation in Solar Panels

The Tongwei brand (TW Solar), recognized in the list Tier 1 Bloomberg, presents with the model of 635w A balanced solution between gross power and sophisticated technology. These solar panels They have been manufactured to lead the energy transition in large covers and solar plants.

NTNT cells and Half-Cut technology

Unlike solar panels Standard, the use of cells No-type Eliminates the effects of light-induced degradation (LID). In addition, its Media Cell design (Half-Cut) reduces resistive losses and improves the behavior of these solar panels Before partial shades, allowing the system to continue producing energy efficiently even if a part of the module is in shadow.

Bifiality and double glass for maximum durability

On Tienda Solar We highlight the "Dual-Glass" construction of this panel. By incorporating a 2.0 mm glass on both sides, these solar panels They offer superior protection against moisture and mechanical wear. Your Bifiality factor of up to 80% allows, on surfaces with good albedo, these photovoltaic plates They generate an extra significant energy, surpassing almost any single-size monofacial panel in performance.

Technical specifications (Model TWMNH-66HD635):

• Nominal power (PMAX): 635w

• Efficiency of solar panels: 23,5%

• Open circuit voltage (VOC): 46,06v

• Short circuit current (ISC): 17,21a

• Tension at maximum power (VMP): 38,70v

• Current at maximum power (imp): 16,41a

• Type of Cell: Monocrystalline N-Type (132 cells)

• Dimensions: 2382 × 1134 × 30 mm

• Weight: 32.2 kg

• Glass: Double 2.0 mm glass (semi-working)

• Power guarantee: 30 years (87.4% yield after 30 years)

Frequently Asked Questions (FAQ)

1. What advantages does N-TYPE technology offer in these solar panels? The solar panels N-TYPE, such as Tongwei 635W, offer greater conversion efficiency, a better temperature coefficient and a much lower degradation than traditional P type panels.
2. How much extra energy generate these solar plates for being bifacial? Depending on the type of soil (sand, concrete or white paint), these solar panels can increase their production between a 10% and 25% Thanks to the uptake of light by the back face.
3. What inverter Are you compatible with these solar panels? Since its maximum power current is 16,41A, it is compatible with most modern high current inverters. Consult our section of Solar investors To ensure an optimal pairing.
4. Are these solar panels suitable for coastal areas? Yes, its double-glass structure protects cells from saline corrosion and extreme moisture, which makes these photovoltaic plates In an ideal option for demanding environments.
