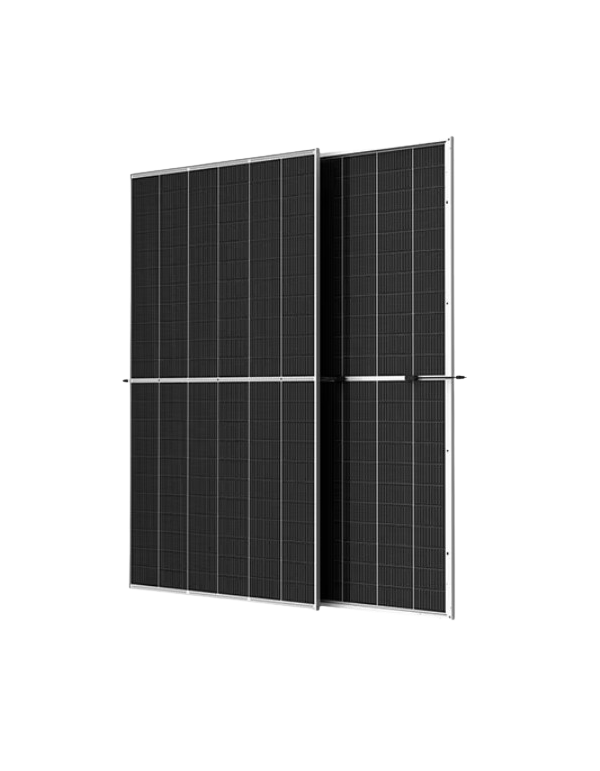

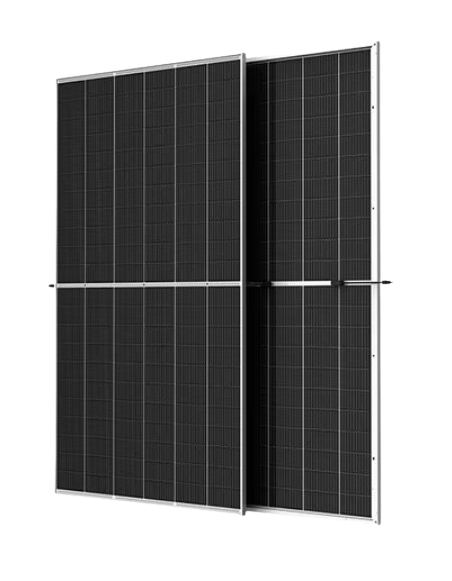

Solar Panel Trina Vertex N 725W (TSM-Neg21C.20) | High efficiency bifacial solar

Trina Vertex N 725W: Power and reliability in Solar

The Vertex N series Trina Solar Use the technological platform of 210 mm to offer one of the solar panels More competitive market. The model of 725w It has been specifically designed to maximize energy efficiency and minimize the cost of generation of electricity.

Superior Performance with N-Type I-Topcon technology

Unlike solar conventional, technology no-type of Trina Solar offers a much lower degradation over time and a temperature coefficient of -0.29% / ° C.. This means that you are photovoltaic plates They maintain a higher production in warm climates and ensure that the system yields to the maximum from the first day until after three decades of use.

Dual Bifacial Structure-Glass for demanding environments

On Tienda Solar We prioritize the robustness. These solar They have an architecture of Double 2.0 mm glass, which eliminates the need for a plastic rear sheet and increases resistance to saline corrosion, ammonia and sand. Being bifaciales, these solar take advantage of the reflection of the soil, making them the ideal choice for installations on solar followers or clear surfaces, far exceeding the generation of the solar panels Standard monofacials.

Technical specifications (model TSM-725-NEG21C.20):

• Nominal power (PMAX): 725w

• Efficiency of the solar: 23,3%

• Open circuit voltage (VOC): 47,8v

• Short circuit current (ISC): 19,35a

• Tension at maximum power (VMP): 39,9v

• Current at maximum power (imp): 18,16a

• Type of Cell: Monocrystalline N-Type I-Topcon (132 cells)

• Dimensions: 2384 × 1303 × 33 mm

• Weight: 38.3 kg

• Glass: Double glass of 2.0 mm (temperate)

• Power guarantee: 30 years (annual degradation of 0.4%)

Frequently Asked Questions (FAQ)

1. What advantages do these offer Solar compared to those of type p? The solar Type N (such as Vertex N 725W) have greater efficiency, better response in warm climates and a longer life with lower degradation, which translates into more kWh generated by each watt installed.

2. How much more can these produce Solar for being bifacial? Depending on the surface (as white gravel or reflective paint), these solar can generate between a 10% and 25% additional of energy thanks to his back face.

3. What inverter Should I use for these solar plates? Since these solar They have a maximum power current greater than 18a, it is vital to use equipment that support high input currents. You can check our selection of Inverters to Solar To find the compatible model.

4. Are these resistant Solar to hail and strong wind? Yes, its double-glass structure and anodized aluminum frame allow to withstand snow loads of up to 5400 PA and winds of 2400 PA, exceeding safety standards for photovoltaic plates.
