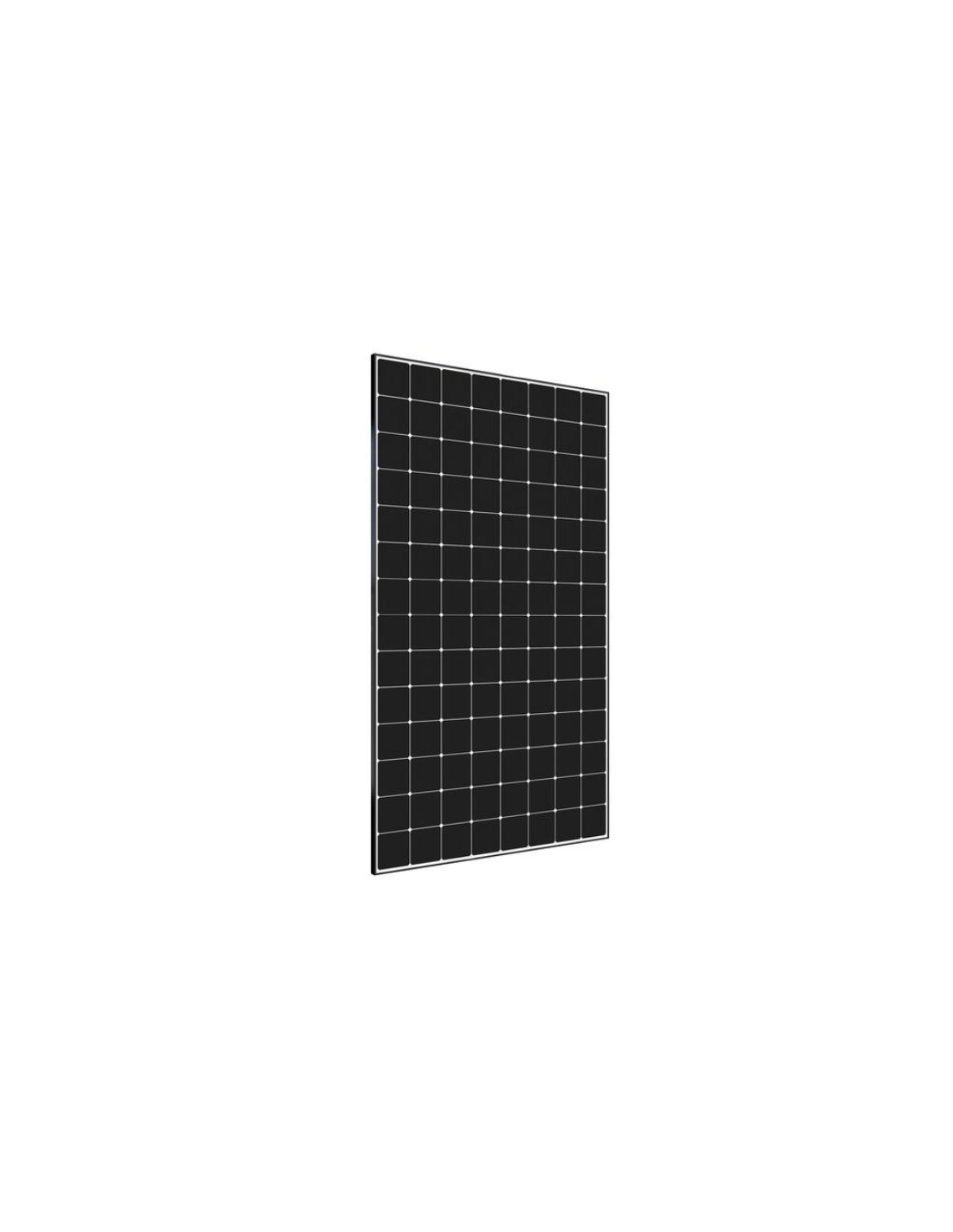

Solar panel SunPower MAXEON 6 460W
Monocrystalline photovoltaic module with Maxeon 6 cell technology with 460W of power and 21.6% efficiency. This panel incorporates state-of-the-art technology from SunPower's MAXEON series, with sustainably manufactured cells, high durability and resistance against external agents.
It is a reliable, efficient and durable solution that is well suited to today's residential needs. It is the solar panel with the best price/energy output ratio on the market. In addition, its unique 40-year energy, product and service warranty makes it a very reliable long-term module for a photovoltaic installation.
SunPower solar panels belong to the group of brands classified as Tier 1, the world's best manufacturers in the solar sector.
Price on request
The MAXEON 6 solar panels from SunPower offer many advantages and feature long-lasting technology:
- - Pioneering MAXEON series technology with high efficiency and reliability.
- - Compatibility with the world's best inverter brands, Tier 1.
- - Operability in a wide range of weather conditions, up to 2000 metres above sea level, between 4% and 100% humidity and between -40ºC and +85ºC ambient temperature.
- - Maximum mechanical load of up to 5400Pa in static (snow) and 2400Pa in dynamic (wind), which favours the resistance of the solar panel.
- - Low power-temperature coefficients, -0.29%/ºC, allowing better performance at high temperatures.
- - Estimated useful life of 35 years.
- - International certification in relation to environmental impact and quality of product, material and operation.
Datasheet:
|
Model
|
SPR-MAX6-460-COM |
|
Electrical Data
|
|
|
Nom. Power (Pnom)
|
460 W
|
|
Power Tol.
|
+5/0%
|
|
Module Efficiency
|
21.6%
|
|
Rated Voltage (Vmpp)
|
43.2 V
|
|
Rated Current (Impp)
|
10.64 A
|
|
Open-Circuit Voltage (Voc) (+/–3%)
|
52.5 V
|
|
Short-Circuit Current (Isc) (+/–3%)
|
11.54 A
|
|
Max. System Voltage
|
1500 V IEC
|
|
Maximum Series Fuse
|
20 A
|
|
Power Temp Coef
|
−0.29% / o C
|
|
Voltage Temp Coef.
|
−0.239% / o C
|
|
Current Temp Coef
|
0.057% / o C
|
|
Dimensions (HxDxW)
|
204,7x103,9x3,5 cm |
|
Operating Temp.
|
−40°C to +60°C
|
|
Solar Cells
|
72 Maxeon 6 Cells
|
|
Tempered Glass
|
High-transmission tempered anti-reflective
|
|
Junction Box
|
IP-68, Stäubli (EVO2), 3 bypass diodes
|
|
Design Load
|
Wind: 2400 Pa, 244 kg/m² front & back Snow: 5400 Pa, 550 kg/m² front
|
|
Weight
|
22.7 kg
|
|
Microinverter enclosure
|
Class II double-insulated, corrosion resistant polymeric enclosure
|
|
Frame
|
Class 2 silver anodised
|
|
Standard Tests
|
IEC 61215, IEC 61730
|
|
Quality Management Certs
|
ISO 9001:2015, ISO 14001:2015
|
|
Available Listings
|
TUV
|
|
IFLI Declare Label
|
First solar panel labeled for ingredient transparency and LBC-compliance.
|
|
Cradle to Cradle CertifiedTM Bronze
|
First solar panel line certified for material health, water stewardship, material reutilisation, renewable energy & carbon management, and social fairness.
|
|
EHS Compliance
|
RoHS, OHSAS 18001:2007, lead free, REACH SVHC-163
|
|
Green Building Certification Contribution P
|
Panels can contribute additional points toward LEED and BREEAM certifications.
|
SPR-MAX6-460-COM
Data sheet
- Power (W)
- 450 - 495
- Height (cm)
- 200 - 209.9
- Width (cm)
- 100 - 109.9
- Frame
- Black
- Short Circuit Current Isc (A)
- 11 - 11.99
