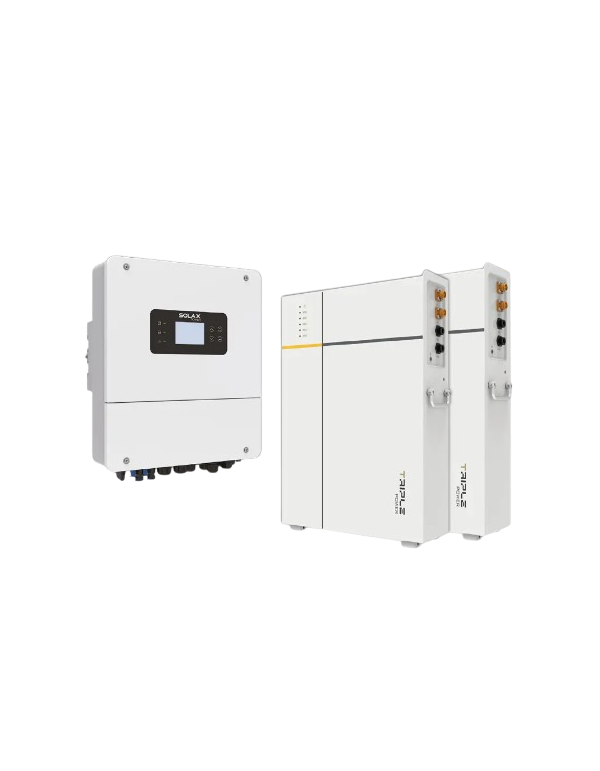

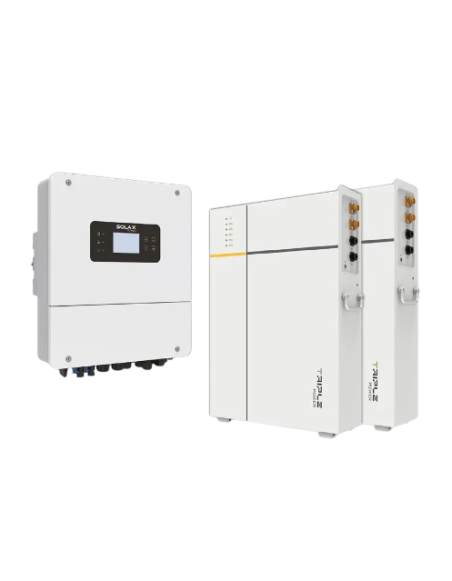

Solar Kit Solax 2x TP-LD53 (10,6KWh) + X1-HYB-6.0-LV (6KW)

Kit Solax 6KW with Triple Power Batteries 10.6KWh: Energy Independence with Ultrafast Critical Support

The transition to energy sovereignty at home requires teams that not only capture energy efficiently, but know how to manage it and store it with maximum reliability. The Self-consumption kit Solax 6kw respond to this need by combining the versatility of low voltage network electronics with extremely safe modular chemical storage. By integrating the hybrid Inverter and batteries in an optimized ecosystem from the same manufacturer, compatibility problems are eliminated and system response time is reduced to domestic consumption variations.

Hybrid Inverter SolaX X1-HYB-6.0-LV: Flexibility and unprecedented power

The heart of the kit is the hybrid Inverter of 6KW, which redefines residential mechanical capabilities by allowing an overstime of the solar field up to 200%, that is, you can connect until 12,000 WP solar. This technical characteristic is ideal to ensure high production even on cloudy days or during winter. Has 2 independent MPPT followers accept 16th input current per channel, allowing the installation of monocrystalline solar of the latest generation without suffering losses for current cut. In addition, its low boot voltage (110v) Prolong the operating window of inverter, injecting energy to the house from first time of the morning.

Triple Storage Power T-BAT-SYS-LV D53: Intelligence and LFP scalability

For surplus management, the kit includes 10.6 kwh of nominal capacity (with 9.5 kWh useful at 90% dod) by two storage modules Triple Power LD53. These cells use lithium chemistry Ferrophosphate (LFP) totally free cobalt, which ensures a lifespan superior to the 6,000 cycles and the most demanding safety standards in the sector. Batteries are governed by a real-time monitoring system assisted by artificial intelligence, capable of diagnosing internal failures and optimizing the state of charge (SOC) adaptively. In case of electric cut in the general network, the EPS function acts in less than 4 ms (level UPS), maintaining critical appliances without undesired restart. If the home requirements grow, modular design allows you to expand capacity by connecting up to 16 units in parallel to reach a maximum of 85 kWh.

Featured technical characteristics:

• Nominal power inverter: 6000 W of continuous output in AC.
• Maximum power (PV Array): Allowed 12000 WP cC installed.
• Storage capacity of the kit: 10.6 kwh nominal9.5 kwh usable 90% DOD).
• MPPT number: 2 independent trackers entrance 16A / 16A.
• MPPT voltage range: Broad spectrum of 80 V at 520 V boot 110 V.
• Maximum loading / battery discharge current: Until A.m for fast energy transfers.
• Switching time EPS (Back-up): Smaller 4 ms (Mode UPS residential).
• POWER PICO IN EPS MODE (EMERGENCY): Tolerate 12000 goes for 10 seconds for engine starts.
• Life and battery cycles: > 6000 cycles to 90% depth of discharge.
• Environmental protection: The whole set has a degree of protection Ip65 outdoor.
• Integrated security: Includes surge downloaders SPD Type II in AC and DC and temperature detection in battery terminals.

Frequently asked questions (FAQ):

1. What appliances can work for a blackout with this kit?

Thanks to the EPS output with a nominal power of 6KW and peaks up 12,000 goes for 10 seconds, the kit can withstand demanding inductive loads such as refrigerators, water pumps or lighting. By changing in less than 4 ms, Computers or routers will not suffer blackouts or data losses.

2. Is it possible to install more battery modules in the future if my consumption increases?

Yes, the system stands out for its flexibility. The modular design of the T-BAT-SYS-LV D53 range allows you to add more modules in a simple way, being able to install up to 16 units in parallel to expand the storage of the house until 85 kWh of capacity.

3. Why is it mentioned that this inverter admits a 200% oversizing in ?

Means that the SolaX X1-HYB-6.0-LV can manage a solar field up 12,000 WP at its entrance of cc. This allows to ovenex the installation with monocrystalline solar to ensure that, at times of low radiation (winter or cloudy days), the inverter continue producing the 6kw nominal alternates and carrying the batteries simultaneously.

4. Does the kit require a forced ventilation cabinet or continuous maintenance?

No. Both the inverter 6KW as Triple Power batteries have systems natural Convection Refrigeration high efficiency (without annoying mechanical fans). This guarantees a silent operation below the conventional noise levels and eliminates maintenance by wear of moving parts.

5. How does this kit perform the zero pouring control to the electrical network?

The inverter includes native compatibility with smart measuring vatimeters or toroidal tongs (CT), achieving an ultra-fast response time of solo 0.3 seconds. The system constantly measures energy flows and adjusts photovoltaic production or battery charge in real time to avoid injection to the network if so configured.
