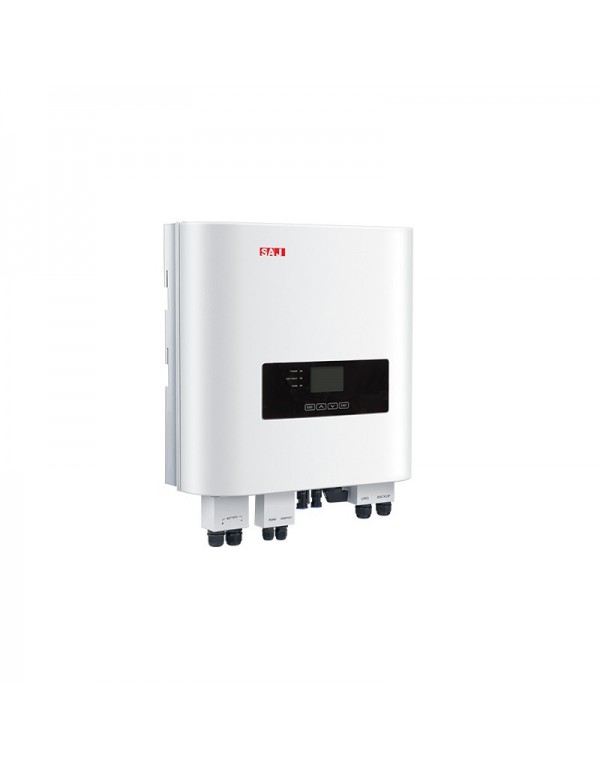

Inverter solar hybrid SAJ H1-6k-s2
Inverter solar hybrid SAJ H1-6k-s2

Inverter solar hybrid SAJ H1-6k-s2

SAJ H1 6K-S2
€1,058.75
Tax included

The inverters H1-3 ~ 6K-S2 energy storage are used in residential photovoltaic energy storage systems, with peak cutting and filling vallections to maximize the use of photovoltaic energy generation while achieving the Objective to save on residential electricity bills. In addition, different work modes can be configured according to the different needs of the client. And can provide uninterrupted power for important loading devices with a backup power supply.



The SAJ H1 6KW 2MPTPT 48V is a hybrid Inverter with 2 MPPT to connect 1 string per each, with a maximum input current of 12.5a / 12.5a, with a working voltage by MPPT between 90 to 550V. This efficient inverter, allows easy installation in both residential and industrial zones, without transformer and support for wall fixation.

In addition, various protections such as short circuit, overload, DC over revolt, overfire. Among its features, it has LCD screen and communicates by Wi-Fi, GPRS and Ethernet.

Model

SAJ H1 6KW 2MPTPT 48V

Entrance (DC)



Max. PV power by array (WP)



9000



Max. DC voltage (V)

600

Nominal operating voltage DC (V)

360

Max. Input Intensity by MPPT

12.5 / 12.5

Max. Short circuit intensity by MPPT

15/15

Range of Tension MPPT (V)

90-550

Operating start voltage (V)

120

Number of Followers MPPT

2

Strings per follower MPPT

1

Departure (AC)



Nominal AC (VA) power

6000



Max. Power AC (VA)

6000

Nominal network voltage (AC tension range) (V)

220, 230, 240

Nominal Network Frequency / Range (Hz)

50/60

Network Range (V)

180/280

Max. Intensity AC

27,3

Displacement of the power factor

0.8 Leading - 0.8 Lagging

THDI, power ratio (%)

EFFICIENCY



Euro Efficiency (%)

97

Efficiency Max. (%)

97,6

PROTECTIONS



Ground protection

YES

Reverse polarity protection

YES

DC switch

YES

Environmental limits



Degree of proaection (based on IEC60529)

Ip65

Operating temperature range (ºC)

-30; +60

Max. Operation altitude (m)

Humidity (%)

0-100 (Non-Condensation)

Storage temperature (ºC)

-30; +60

Typical noise emission (DB)

Dimensions and weight



Dimensions (WXHXD) (mm)

470 * 470 * 190

Weight (kg)

23

Ventilation type

Natural

Type

Non-isolated

Communications interface

RS485, WiFi / Ethernet / GPRS (Optional), SD Card (optional)

LCD DISPLAY

Yes

Standard Guarantee (Years)

5/10/15/20/25

Power (kW)
6 - 9.9
Phase Type
Single phase
Max Current Input (A)
12 - 12.99
Compatibility list
Dyness BX51100
Dyness Power Box
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
SAJ B1 / AS1-3KS
