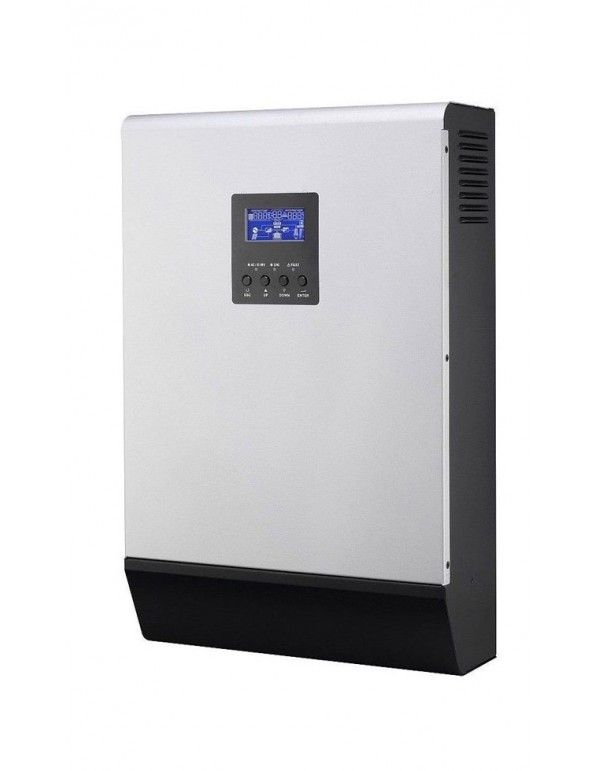

Inverter Axpert MKS 5K-48V Solar Charger
Inverter Axpert MKS 5K-48V Solar Charger

Inverter Axpert MKS 5K-48V Solar Charger

020021 [S]
€617.10
Tax included

Inverter Solar charger for single-phase 5000kVA isolated 48V to connect solar batteries of the corresponding voltage

The Axpert MKS 5K has a single MPPT (maximum power tracking point) and provides 90% yield. The maximum current of solar regulator input for this product is 80A

This type of inverter Solar charger like the Axpert VM 5000W A 48V integrates the MPPT loading controller and can be configured Solar solar of both 60 and 72 cells. This model unlike the Axpert VM of the same power does have the start-up feature of generators for hybrid solar installations

The inverter Solar offers a guarantee of 2 years of product and CE certificate



The inverter solar Axpert MKS 5000-48V highlights also for its price for the following characteristics:

  • - Inverter solar of high efficiency sine wave isolated
  • - 0.8 output power factor for the KP series (in this case Real power of 4KW)
  • - MPPT loading regulator integrated in the inverter solar
  • - Wide range of input voltage selection of the inverter solar (170-280V)
  • - Wide range of selection of entry current of the inverter solar for battery charge up to 140A
  • - Configurable AC / Solar Entrance through the LCD screen
  • - In this case the AXPERT MKS 5000-48V has self-maintenance for diesel generator
  • - Overvoltage and short circuit protections in the inverter solar
  • - Option for coupling remote control of the inverter charger

The inverter- Axpert MKS 5KP Charger is a very economical option with a longer input current than the Axpert VM 5000W-48 and for demanding customers who want to own a quality, reliable and without problems in the operation of its solar installation.  For any additional questions, consult with us in [email protected]

Technical data below:

Model

Axpert MKS 5KP-48

Nominal power

5000va / 4000w

Entrance voltage

230 V / 170V to 280 V

Assigned network frequency / frequency range

50 Hz to 60Hz

Output voltage AC

230VAC + 7-5%

Maximum power peak transient

10000va

Efficiency peak

93%

Waveform

Pure-stenoidal

Battery tension

48vdc

Load floating tension

54vdc

Overload protection

60vdc

Maximum power Solar PV

4000w

MPTT range in operating voltage

60-115vdc

Maximum tension of circuit open by String

145vdc

Maximum solar current

80a

Maximum AC current

60a



Power (kW)
3 - 5.9
Phase Type
Single phase
Max Current Input (A)
14 - 14.99
Compatibility list
Dyness BX51100
Dyness Power Box
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
Turbo Energy (Slim)
