Inverter Axpert Solar Charger MKS 3K-24V Plus
Inverter Axpert Solar Charger MKS 3K-24V Plus

Inverter Axpert Solar Charger MKS 3K-24V Plus

AXMKS3K24P
€465.85
Tax included

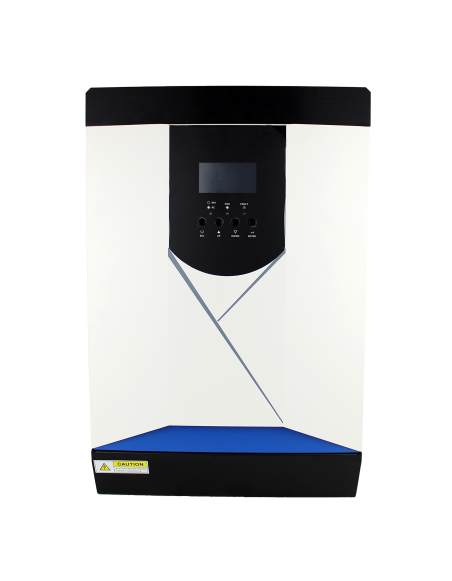

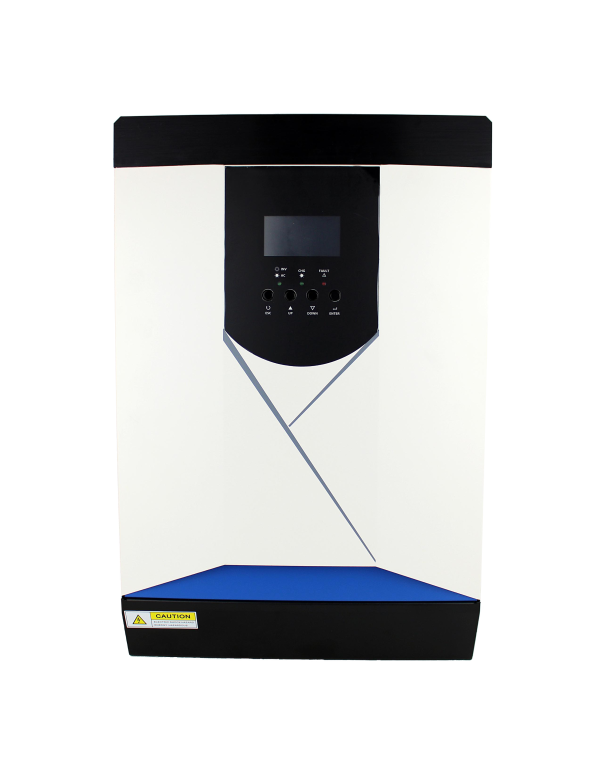

Inverter Solar charger for 3000W isolated installations. Inverter Solar to 24v single-phase so we can connect the corresponding tension solar batteries. The Axpert MKS 3K has a single MPPT (maximum power tracking point) and provides a yield of 93.0%. The maximum current of solar regulator input is 60A

This type of inverter Solar at 24V integrates the MPPT loading regulator and can be configured with solar panels whether of 60 or 72 cells and has the start-up feature for hybrid solar installations.

The AXPERT model integrates tensions assigned in ranges from 60 V up to 115 V and network operation of up to 30 A. The Axpert MKS of 3KW (KVA) offers a guarantee of 2 years of product and CE certificate.



The inverter Solar Axpert MKS 3K-24V stands out also for its price for the following characteristics:

  • - Inverter Isolated pure sine wave wave of great efficiency
  • - Output power factor of 1 which involve 3KW of real power
  • - MPPT loading regulator integrated in the inverter solar
  • - Wide range of input voltage selection of the inverter Solar (90-280V)
  • - Wide range of selection of entry current of the inverter Solar for battery charge up to 90A
  • - Configurable AC / Solar Entrance through the LCD screen
  • - It has auto-land while the AC part is recovered or starts again
  • - Overvoltage and short circuit protections in the inverter solar
  • - Option for coupling remote control of the inverter charger

The inverter- Axpert Farger is a very economical option for demanding customers who want to own a reliable and trouble-free quality product in the operation of its installation.  For any questions, consult with us in [email protected]

Technical data of inverter solar:

Model

Axpert MKS 3K-24 Plus

Nominal power

3000va / 3000w

Entrance voltage

230 V / from 90V to 280 V

Network assigned frequency

50 Hz to 60Hz

Output voltage AC

230VAC + 7-5%

Maximum power peak transient

6000va

Efficiency peak

93%

Waveform

Pure-stenoidal

Battery tension

24vdc

Load floating tension

27vdc

Overload protection

31vdc

Maximum power PV soak input

1500w

MPTT range in operating voltage

60-115vdc

Maximum tension of circuit open by String

145vdc

Maximum solar current

60a

Maximum AC current

20A to 30A



Power (kW)
3 - 5.9
Phase Type
Single phase
Max Current Input (A)
10-
