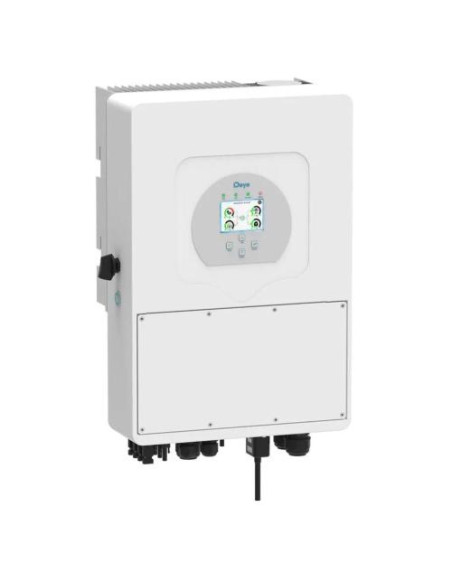

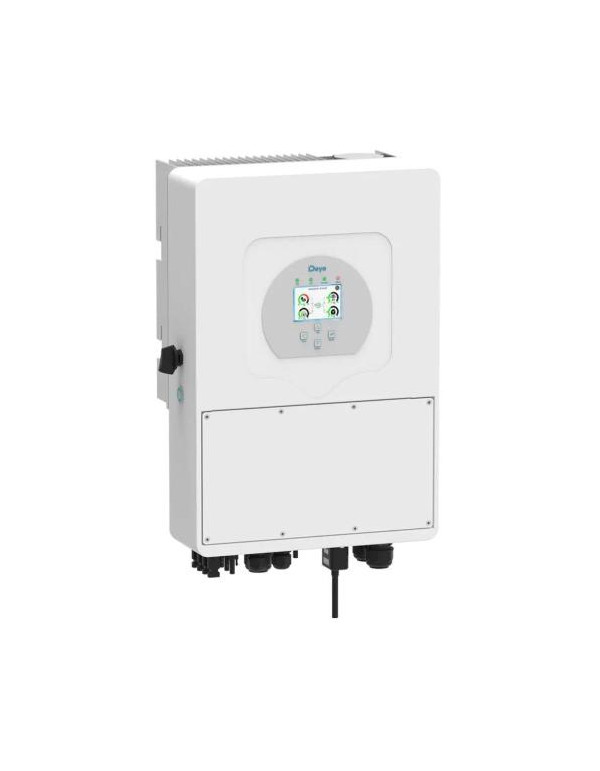

Hybrid Inverter Three-phase Deye 10kw SUN-10K-SG01HP3-EU-AM2 High Voltage

Benefits Hybrid Inverter Three-phase Deye 10kw SUN-10k-sg01hp3-EU-am2

The inverter Deye SUN-10k-sg01hp3-EU-am2 Elevate energy efficiency standards thanks to its infrastructure based on High voltage technology (160V - 700V). When working in higher voltage ranges, the current intensity required to transfer the same power reduce the losses by Joule effect, minimizing the heating of the drivers and allowing the use of thinner wiring lines and Economic

Your impressive transfer capacity up 50A in loading and unloading It allows you to perform ultra-fast loading cycles in the lithium batteries High voltage more advanced market. When you connect this equipment with your solar panels mounted solar on Tienda SolarGet a robust self-consumption solution, highly efficient and prepared to accelerate the amortization of your investment.

100% departure decompensated by phase and AC Cupling capacity

In most of the homes or three-phase industries, consumptions are not equitably distributed among the three lines. The function of 100% output unbalanced by phase of the Deye 10kw HV Solve this inefficiency by delivering powers adjusted independently to each phase. If a line requires 100% of the nominal power while the others do not demand energy, the inverter It will direct the solar power or batteries directly to that phase, avoiding consuming from the electrical network or pouring power uselessly.

In addition, the converter has a coupling function in alternating current (AC Coupling), which allows to integrate it into existing solar installations that have Inverters Networking or Inverters solar traditional. In this way, it is possible to modernize a previous photovoltaic system by adding high voltage storage without replacing the equipment that was already operational.

Uninterrupted backrest (Backup), Diesel generator and scalability

To guarantee the continuity of the supply before blackouts in the public network, the inverter automatically switches to the output of backup in milliseconds, feeding the priority consumption with the energy produced by the and accumulators. Also incorporates an independent entrance port with dry contact dedicated to Diesel generators or generator sets, Activating the automatic start of the motor when the batteries reach their download limit threshold.

If the consumption needs of your project increase, the team supports the Parallelization of up to 10 units, which allows building energy microoredes up to 100 kW of nominal power Under a unified control. To learn more purchase guides, equipment analysis and articles developed by photovoltaic engineers, we invite you to explore the Blog Tienda Solar.

Detailed technical characteristics

• Product model: SUN-10k-sg01hp3-EU-am2

• Type of product: Hybrid Inverter High-voltage three-phase (HV)

• Nominal output power AC: 10,000 W (10 kW)

• Maximum input power DC (FV): 13,000 WP

• High voltage battery voltage range: 160 V to 700 V

• Maximum loading / unloading current: 50 a

• Number of independent MPPT followers: 2 MPPT Followers

• Maximum PV input current: 26 a + 13 a

• Phase management: 100% output unbalanced by phase

• Degree of protection of the chassis: Ip65 (Full protection against dust and water)

• Smart time programming: Up to 6 configurable periods loading and unloading

• Communication protocols: Rs485, Rs232, Can and option of Wi-Fi / GPRS / LAN

• Parallelization support: Allows Connect up to 10 units in parallel (100 kW total)

Frequently Asked Questions (FAQ)

1. What main benefits contributes "high voltage" technology in this inverter of 10kw?

When operating with tension ranges up 700v, the current intensity necessary to transmit the same power is reduced. This minimizes the thermal heating of the lines, improves the overall system efficiency and allows you to use smaller section wiring without suffering energy losses.

2. How does the 100% unbalanced output work if the phases of my home consume very unequally?

Unlike inverters conventional three-phase that distribute the power symmetric mandatory, the Deye 10kw HV can send up to the 100% of its nominal power At a single phase if it is required, avoiding importing energy from the commercial network when the solar field or batteries have coverage capacity.

3. What happens with the installation if a failure or blackout occurs in the mains?

The inverter switch to backup mode (Off-grid / Backup) in milliseconds, guaranteeing the uninterrupted supply to the critical consumption connected through the energy generated by the solar panels and that stored in the lithium batteries.

4. Is this compatible inverter Deye with any high-voltage lithium battery mark?

It is compatible with the main HV brands HV in the market (as Pylontech or Dyness) Thanks to its bus communication protocol Can, which was self-admitted intelligently to the management system (BMS) of the accumulators.

5. Is the remote monitoring module and how it is configured?

The equipment supports Wi-Fi, GPRS and LAN connectivity modules. On Tienda Solar The Wi-Fi dongle that is connected to the lower port of the equipment is included, allowing to monitor the performance, the battery charge and the consumption in real time from any device. For other storage needs or installation typologies, you can also check our sections of Microinverters, Gel batteries and Inverters AGM.
