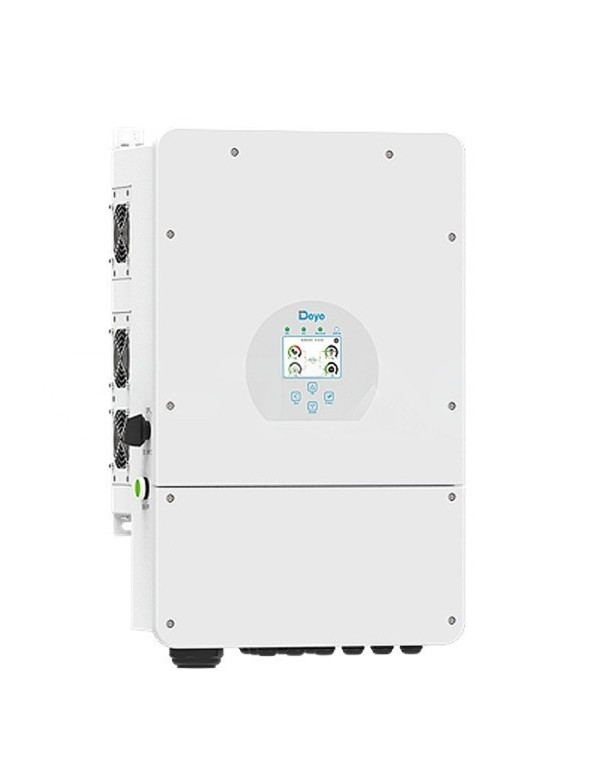

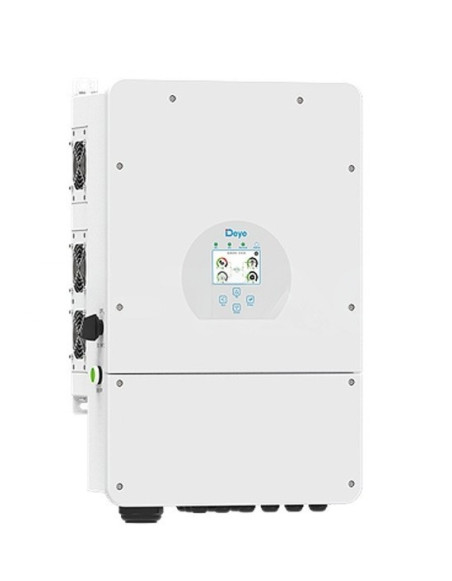

Hybrid Inverter Monophasasic Deye 10kw SUN-10ksg02lp1-EU

Benefits Hybrid Inverter Single-phase Deye 10kw SUN-10ksg02lp1-EU

The inverter Deye SUN-10ksg02LP1-EU 10 kW resolves the demands of single-phase consumption in properties with high electrical requirements. Your technical architecture allows you to manage simultaneously the energy produced by your solar, the accumulated in low voltage batteries, commercial network and an auxiliary generator group, guaranteeing a continuous flow of power and drastically reducing the light invoice.

Its performance excels with a maximum conversion efficiency of 97.6%, taking full advantage of the irradiation captured by the solar modules. By not depending exclusively on the flow of the public network, this equipment minimizes the costs of access tolls by adjusting the injection through its 6 configurable periods of loading and unloading, which allow you to program the night load when the electric rates are smaller.

Load capacity of 220A and tolerance to boot peaks

Unlike other low voltage converters in the sector, this team offers a massive current loading and unloading 220 A. This transfer speed is suitable for squeezing the performance of massive banks of lithium batteries 48V, allowing quickly storing the photovoltaic surpluses generated at the central hours of the day.

In situations where loading of loads with high streams of InRush (such as water pumps, air conditioning compressors or inductive machinery), the inverter is able to deliver a pOWER PICO DE 15,000 W for 10 seconds. This dynamic response prevents interruptions in the supply without the need to oversize the contracted power of the network.

Zero interruptions (function UPS) and scalability up to 160 kW

The continuity of the service is fully insured by its dedicated distress output with type technology UPS (Uninterrupted feeding system). In case of a sudden drop in the public network, the equipment automatically switches to an isolated mode in milliseconds, ensuring that critical housing devices remain operational without perceiving electrical interruption.

For projects with expansion projections, the Deye SUN-10ksg02lp1-EU allow to connect up to 16 units in parallel, reaching a cumulative power of 160 kW. On Tienda Solar we supply this equipment configured to operate in both mass monophase schemes and to create combined three-phase networks. You can discover connection schemes, examples of real and comparative installations detailed by visiting the Blog Tienda Solar.

Detailed technical characteristics

• Product model: SUN-10ksg02lp1-EU

• Type of equipment: Hybrid Inverter Single-phase low voltage (48V)

• Nominal output power AC: 10,000 W (10 kW)

• POWER PICO OF SALE (MODE Backup): 15,000 W (for 10 seconds)

• Maximum loading / unloading current: 220 to

• Supported battery voltage range: 40 V to 60 V

• Typology of compatible accumulators: Lithium (LifePO4) and Lead-Acid / Gel / AGM

• Maximum conversion efficiency: 97.6% (Euro efficiency: 97.0%)

• Degree of protection of the chassis: Ip65 (Suitable for outdoor mounting)

• Weight and physical dimensions: 35.6 kg | 420 × 670 × 233 mm

• User interface: Color touch screen

• Integrated communication ports: Can, RS485 and RS232

• Connectivity accessories: Wi-Fi monitoring module included

• Parallelization capacity: Up to 16 units (Single-phase or three-phase)

• Commercial guarantee: Up to 10 years of official guarantee (Subject to manufacturer's conditions)

Frequently Asked Questions (FAQ)

1. With what types of low voltage accumulators is compatible Deye 10kw single-phase?

It is fully compatible with 48V accumulators for both technology lithium batteries (Pylontech, , Dyness, V-TAC, Deye) as with banks of Gel batteries or Inverters AGM, communicating directly via CAN or RS485 bus with the BMS.

2. Can you install the inverter in exterior walls exposed to rain?

Yes, your metallic envelope has iP65 certification, which guarantees sealing against rainwater and dust entry. It is advisable to place it under a small visor or technical shadow to protect the touch screen and avoid prolonged direct solar radiation.

3. What happens with the consumption of housing if the company's power supply fails?

The equipment instantly activates its backup function (Backup / Off-grid), supplying your 10,000 W nominal through batteries and photovoltaic modules, with tolerance to withstand punctual peaks of up to 15 kW.

4. Is it possible to expand the photovoltaic installation without replacing this equipment in the future?

That's right. The architecture Deye allows coupling in parallel up to 16 units of the same model, which enables the progressive expansion of the system until you reach 160 kW of total power, and even configure three-phase outputs coupled.

5. What tools include the system to supervise energy production daily?

The team is delivered with the Wi-Fi data logger. This device transmits in real time production, battery bank status and consumption to the platform in the cloud, accessible from mobile application or web browser. For projects without batteries seeking to dump directly to the network, we also have options in Inverters Networking, modular solutions with Microinverters or full kits coupled with structures for solar.
