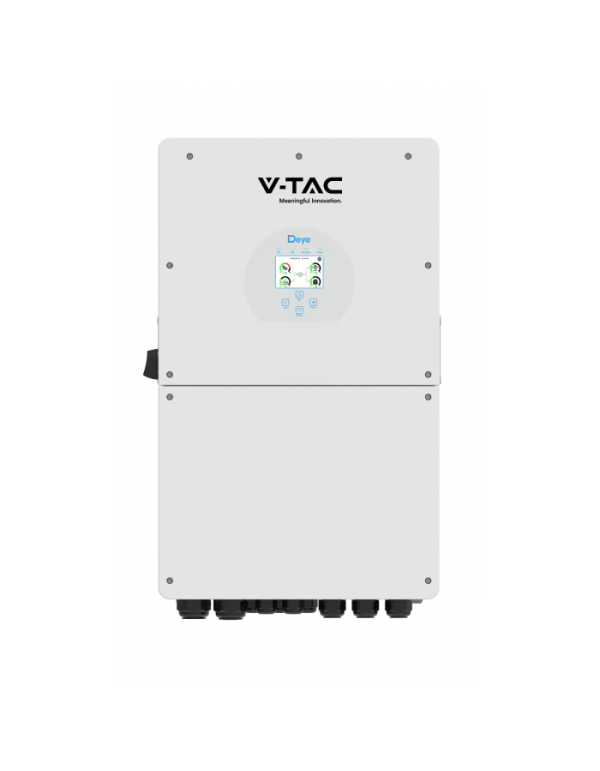

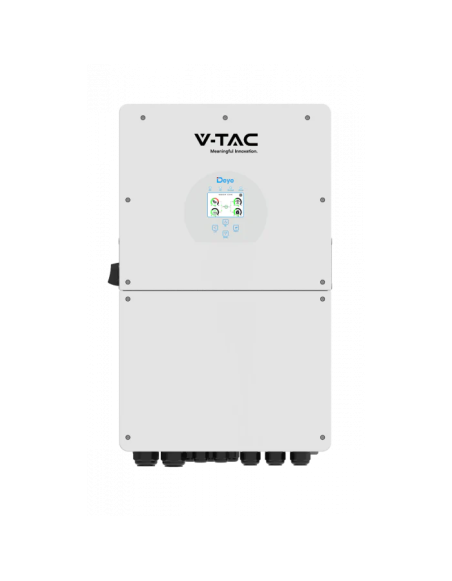

Hybrid Inverter Single-phase Deye 16kw SUN-16K-SG01LP1-EU ON / OFF GRID

Benefits Hybrid Inverter Single-phase Deye 16kw SUN-16k-sg01lp1-EU

The inverter DEYE SUN-16k-sg01lp1-EU it allows to manage large energy consumption in single-phase electrical networks. Delivery 16,000 W of Nominal power output AC and admits an oversion of up 20.800 WP of maximum photovoltaic power. Its power electronics reaches a maximum efficiency of 97.6% and one mPPT efficiency greater than 99%, optimizing the performance of the installation under various solar radiation conditions.

Your accumulation bus in low voltage 48V (operating range of 40V to 60V) work with lithium batteries or lead-acid, reaching a maximum loading and download of 290A. This capacity allows you to transfer energy towards lithium batteries at high speed. Combined solar panels set by structures for solar suitable, this converter available in Tienda Solar it facilitates the management of electricity demand in large-scale housing and infrastructures.

Triple MPPT, Support of Critical Charges and Diesel Generator

For the optimization of the solar field in roofs with multiple inclinations, the inverter incorporates 3 independent MPPT followers with 2 MPPT (Distribution 2 + 2 + 2) entries. Can manage short circuit currents 44a + 44a + 44a and one maximum operation current PV of 26A by MPPT, admitting the connection of high-power photovoltaic modules.

In isolated mode (Off-grid), it has a capacity of power peaks up 2 times the nominal power for 10 seconds (32,000 W) for starting motors and inductances. Your control platform is compatible with the function of Accurate to be coupled to existing facilities with Inverters Networking, it admits direct integration of diesel generators for support recharge and allows you to program up 6 daily periods of charge and battery unloading.

Parallel scalability, IP65 protection and monitoring

The model SUN-16k-sg01lp1-EU admits interconnection in parallel of up to 16 units, allowing to create high capacity single-phase systems in complex industrial or residential projects. Your cabinet watertight with degree of protection IP65 and intelligent air cooling system guarantee continuous operation between -40 ° C and + 60 ° C.

Includes integrated protections such as disconnection by reverse polarity cc, , protection against AC short circuits, , isolation monitoring, , earth Fault Detection, , rCD module and type II surge downloaders in CC and CA. To consult connection schemes, installation guides and technical manuals developed by photovoltaic professionals, visit the Blog Tienda Solar.

Detailed technical characteristics

• Team model: DEYE SUN-16k-sg01lp1-EU
• Nominal output power AC: 16,000 W
• Maximum apparent power AC: 17,600 VA
• Maximum input photovoltaic power (PMAX): 20.800 WP
• Nominal battery voltage: 48 V (Functional range of 40 V to 60 V)
• Maximum loading / battery discharge: 290
• Type of compatible battery: Lithium or lead-acid batteries (automatic adaptation BMS)
• Number of MPPT / Strings by MPPT: 3 MPPT / 2 + 2 + 2 Strings
• Maximum PV input current per MPPT: 26 a / 26 a / 26 a
• Maximum short circuit current by MPPT: 44 A / 44 A / 44 A
• Maximum input voltage CC: 500 V
• System start voltage: 125 V
• MPPT voltage range: 150 V at 425 V
• Nominal voltage of PV input: 370 V
• Maximum efficiency / European efficiency: 97.60% / 96.50%
• Efficiency of the MPPT follower: > 99.00%
• Power peak in isolated mode (OFF-GRID): 2 times the nominal power for 10 seconds
• Continuous step of AC current (network to load): 100 a
• Degree of protection of the chassis: Ip65
• Dimensions of the equipment (wide x high x deep x): 464 x 763 x 282 mm
• Net weight of the team: 52 kg
• Parallelization capacity: Up to 16 units in parallel
• User interface: LCD touch screen in integrated color
• Communication interfaces: RS485, RS232 and Can
• Monitoring options: Wi-Fi module included / compatible with GPRS, Bluetooth, 4G, LAN
• Overvoltage protections: Type II overvoltage dischargers (CC) and Type II (CA)

Frequently Asked Questions (FAQ)

1. Can this inverter Deye of 16kW Feed a completely isolated installation of the electrical network?

Yes, the inverter it has topology on / off grid and can feed consumption directly from the solar and the batteries. It offers a power peak up 32,000 W for 10 seconds for inductive starts and integrate entry for control diesel generators support.

2. What compatibility does it offer with 48V accumulation banks?

It is integrated natively by CAN or RS485 communication with lithium batteries of brands Pylontech, , Dyness or V-TAC, in addition to being compatible with Gel batteries or Inverters AGM lead-acid. Your loading / unloading capacity reaches 290a.

3. Can you connect several inverters in parallel if greater power is required?

Yes, it admits the configuration of up 16 units in parallel, allowing the power to be climbed in mass self-consumption facilities or small single-phase industries.

4. Does it allow supervising the photovoltaic plant at a distance?

On Tienda Solar we supply the equipment with its corresponding communication module. The inverter it has ports RS485, RS232 and Can, offering link options via Wi-Fi, 4G, Bluetooth, GPRS or LAN for system visualization on the monitoring platform.

5. What other technological or power alternatives exist in the catalog?

If the project requires other topologies or powers, you can consult our offer of Inverters solar, modular solutions through Microinverters, or solutions for network coupled projects with inverters hybrid of various configurations.
