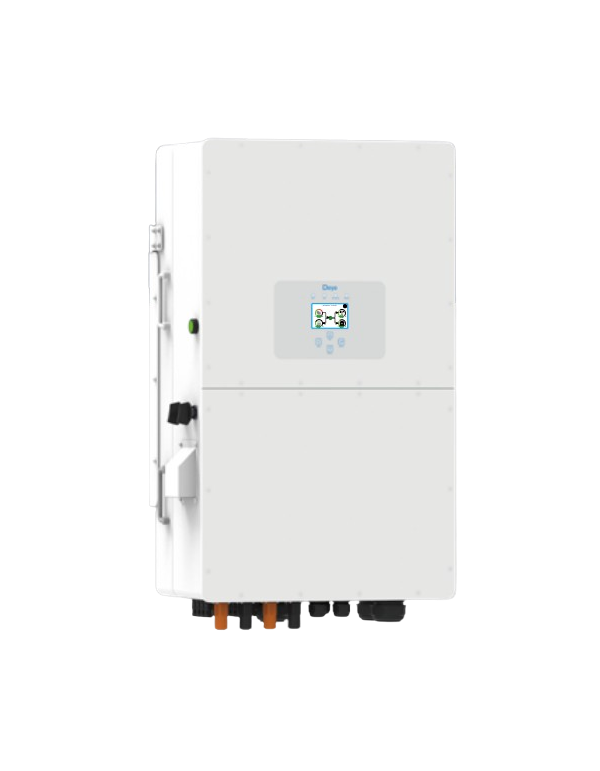

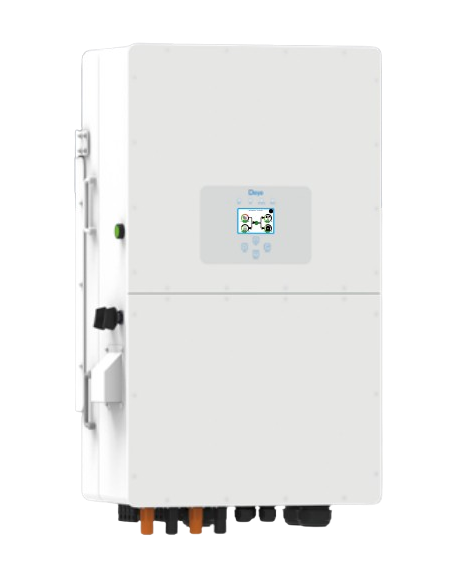

Hybrid Inverter Three-phase deye 30kw | SUN-30K-SG01HP3-EU-BM3 | High voltage

Benefits Hybrid Inverter Three-phase deye 30kw SUN-30k-sg01hp3-EU-bm3

The inverter commercial DEYE SUN-30k-sg01hp3-EU-bm3 sets a higher standard in three-phase photovoltaic storage when operating in ranges of high battery voltage (160V to 800V). The main technical advantage of working at high voltages is the drastic reduction of the necessary amperage to transfer energy, which decreases the joule losses due to overheating in the wiring and allows to use drivers of lower section. Its advanced electronic conversion topology guarantees a maximum efficiency of 97.6% and one mPPT efficiency greater than 99%, ensuring a comprehensive use of the solar field against conventional converters.

When integrating it next to a field of solar panels mounted structures for solar industriales, this team facilitates intelligent surplus management and demand peak cut (peak Shaving). Available in the specialized catalog of Tienda Solar, this inverter it is the ideal piece to guarantee financial return in industrial and commercial plants.

Triple MPPT, unbalanced output by phase and function UPS backup

To squeeze production in industrial covers with different inclinations or different orientations, the inverter has 3 independent MPPT followers accept 2 Entries by MPPT (2 + 2 + 2). This distribution prevents partial shading over a roof section reduced photovoltaic performance from the rest of chains.

Also, the team manages 100% unbalanced outputs per phase, supplying asymmetric consumption for each three-phase line independently without forcing energy purchases to the public network. Inserting interruptions of the electrical network, its backup function UPS supply a power peak in isolated mode up to 45,000W for 10 seconds, ensuring the starting current required by critical machinery and inductive motors without production stops.

Scalability up to 300KW, IP65 protection and continuous diagnosis

The electronic architecture of the series SUN-30k-sg01hp3-EU-bm3 supports the interconnection in parallel up to 10 units, which allows to build industrial micro-companies up 300 kW of nominal power both in connected mode and island (off-grid). His robust chassis has degree of protection IP65 to resist inmade in high demand environments, and integrate protections against Type II overvoltages in DC and Type II in AC, in addition to Dedicated Port to manage the automatic integration of diesel generators.

To review connection schemes, installation manuals and specialized guides developed by experts in photovoltaic engineering, we invite you to visit the Blog Tienda Solar.

Detailed technical characteristics

• Pattern inverter: SUN-30k-sg01hp3-EU-bm3
• Nominal output power AC: 30,000 W
• Maximum apparent power AC: 33,000 VA
• Maximum input photovoltaic power (PMAX): 45,500 WP
• Power peak in isolated mode (OFF-GRID): 1.5 times the nominal power (45,000 W for 10 seconds)
• Battery voltage range: 160 V to 800 V (High Voltage)
• Maximum loading / battery discharge: 100 A (50A + 50A in two tickets)
• Number of followers MPPT / Strings: 3 Followers MPPT (2 entries by MPPT: 2 + 2 + 2)
• MPPT voltage range: 150 V to 850 V
• Max input tension DC: 1,000 V
• Maximum conversion efficiency: 97,60%
• Efficiency of the MPPT follower: > 99%
• Degree of sealing of the envelope: Ip65 (Apt for aperture)
• Sound emission level: ≤65 dB (Intelligent air cooling)
• Physical dimensions (wide × high × deep): 527 × 894 × 294 mm
• Net weight of the team: 80 kg
• Parallel capacity: Up to 10 units in parallel (300 kW)
• Level of protection against overvoltages: Type II (DC) and Type II (BC) integrated
• Communication interfaces: RS485, RS232, Can / Monitoring options: Wi-Fi, LAN, 4G, GPRS, Bluetooth
• Commercial guarantee: 10 years of official manufacturer

Frequently Asked Questions (FAQ)

1. What high voltage batteries can I connect to inverter Deye 30kw?

It is compatible with lithium batteries high voltage operating within the range of 160V to 800V bus CAN or Rs485, like the series Deye BOS-G Pylontech Force H1 / H2.

2. Is it possible to integrate a backup diesel generator into the installation?

Yes, the inverter it has a specific entry that allows connecting a diesel generator set. The team manages the start of the generator to charge the batteries or supply consumption if the solar generation and the public network are insufficient.

3. How does the 100% unbalanced output acts before shooting single-phase consumption?

Thanks to asymmetric management by phase, the inverter inject the required power independently in each of the three-phase lines. This prevents decompensation and avoids buying additional energy to the network in the phases with the highest load.

4. Can the equipment be installed outdoors and how it is monitored?

Yes, your envelope has iP65 protection to resist assembly in the weather. Through the connectivity accessories of Tienda Solar (Wi-Fi, LAN or 4G), you can supervise production, consumption and battery status from any mobile device.

5. Where can I consult other types of inverters if I require solutions for isolated or lower housing?

In our catalog you can explore a wide range of Inverters solar, , Inverters Networking, modular formats with Microinverters, as well as solutions for isolated installations compatible with Gel batteries or Inverters AGM.
