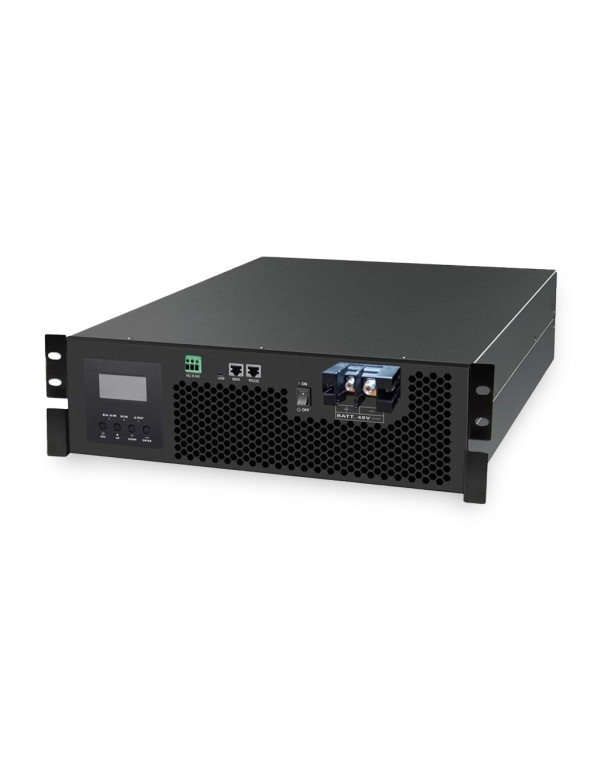

Solar Inverter Voltronic Axpert King Rack 5kW - 48V
Solar Inverter Voltronic Axpert King Rack 5kW - 48V

Inverter Solar Voltronic Axpert King Rack 5KW - 48V

KNG-RACK-5KW
€770.00
Tax included

Inverter Solar Voltronic Axpert King Rack 5KW - 48V

This inverter Solar version Rack is a perfect option for those facilities that do not have much space, as it is perfectly installable in rack cabinets along with batteries.

It is equipped with a 140A charger, a solar charger of 80A for MPPT and a 60th AC charger. It has a removable LCD control module that allows monitoring the inverter remotely.

Can be installed up to 9 inverters in parallel.

It is compatible with RS485 communication batteries such as Pylontech, Dyness, etc.

It has a 3 year warranty.



Main features:

  • Without transfer time to protect critical mission loads, such as servers and ATMs.
  • Removable LCD control module with multiple communication options.
  • Bluetooth integrated for mobile monitoring (available an Android application).
  • Compatibility with the USB function on-the-go.
  • Communication port reserved for the BMS (RS485, CAN-BUS or RS232).
  • Configurable timer for the use of AC / PV output and prioritization option.
  • Operation option in parallel with up to 9 units.

Technical characteristics:

  • Nominal power: 5000VA / 5000W
  • Units in parallel: up to 9 inverters
  • AC: 230 Vac Entrance
  • Output AC: 230 VAC
  • Efficiency: 93%
  • Voltage Battery: 48 V
  • Flotation voltage: 54 V
  • Maximum MPPT voltage: 145 VDC
  • Maximum Power MPPT: 4000 W
  • Range Voltage MPPT: 60-115 VDC
  • Dimensions: 466 x 438 x 130 mm
  • Weight: 15 kg
  • Communication: USB / RS485
Power (kW)
3 - 5.9
Inverter Type
Hybrid
