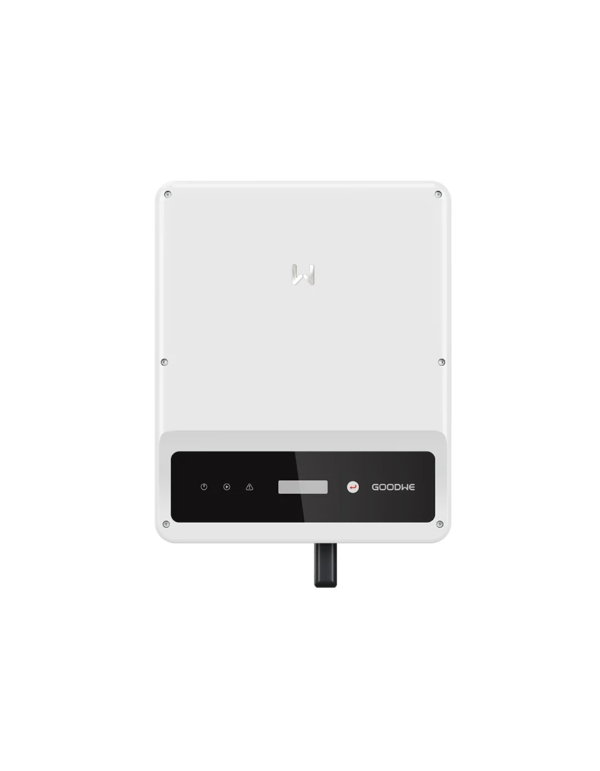

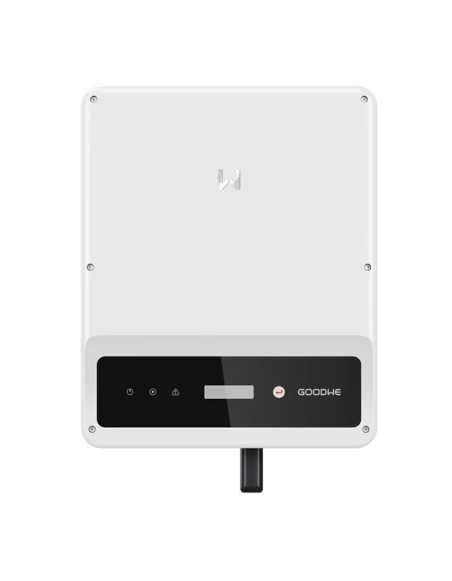

Solar Inverter GoodWe GW12K-SDT-20 12kW three phase
Solar Inverter GoodWe GW12K-SDT-20 12kW three phase

Inverter solar GoodWe GW12K-SDT-20 12KW three-phase

GW12KSDT
€1,140.00
Tax included

Inverter solar GoodWe GW12K-SDT-20 12KW three-phase

The ST G2 series GoodWe It is a perfect option for small residential and commercial network systems of three-phase network. Thanks to its maximum permissible current of 30A, they admit High-power

In addition, adding the homekit 3000 provides the possibility of supervising the load consumption 24 hours a day. GoodWe Not only does it provide efficiency and reliability, but also gives security in your teams. Thanks to the AFCI option, the inverter solar GoodWe GW SDT is able to send alarms and cut the circuit in case of an electric arc.

This inverter Solar has 2 MPPT, and 2 Strings can be connected by MPPT (4 in total). The maximum input current by MPPT is 30a.

Communication can be by WiFi, RS485 or LAN or 4G (optional).

It has a maximum efficiency of 98.4%.

It has a 5 year warranty.



Main features:

  • Optional AFCI function.
  • Intelligent energy management.
  • High efficiency: 98.4%.
  • Compact and lightweight design: Easy installation and maintenance.
  • Residential or commercial application.
  • Suitable for three-phase network connection systems

Technical characteristics:

  • Model: Inverter solar GoodWe GW12K-SDT-20 12KW three-phase
  • Max. PV input voltage: 1100 V
  • Range operating MPPT: 140 - 950 V
  • Nominal voltage: 620 V
  • Max. Entry current by MPPT: 30 A
  • Max. Short circuit current by MPPT: 37.5 A
  • Number of MPPT: 2
  • Strings by MPPT: 2
  • Apparent nominal power: 12000 VA
  • Max. Efficiency / European efficiency: 98.4 / 97.8%
  • Communication: WiFi, RS485 or LAN or 4G (optional)
  • Weight: 23.5 kg
  • Dimensions: 415 x 511 x 198 mm
  • Protection: IP65
  • Warranty. 5 years
Power (kW)
10 - 14.9
Max Current Input (A)
20+
MPPT
2
Inverter Type
Not hybrid
