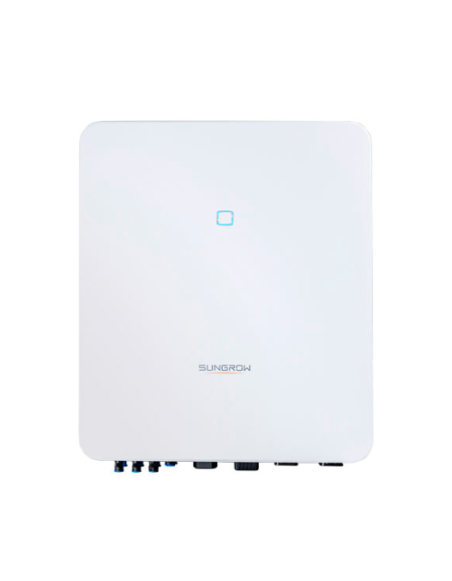

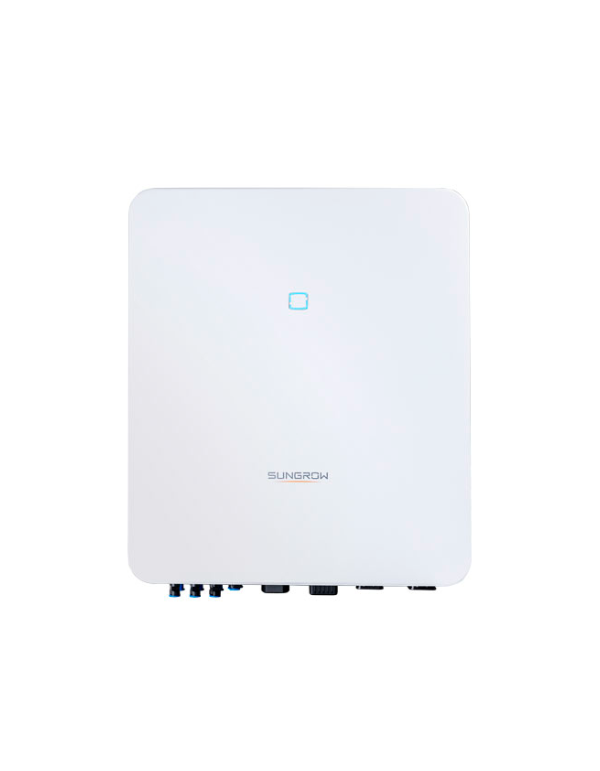

Sungrow SH5.0RT V20 Solar Hybrid Inverter
Sungrow SH5.0RT V20 Solar Hybrid Inverter

Inverter Solar Hybrid Sungrow SH5.0RT V20

SH5.0RT
€1,927.60
Tax included

Inverter Solar Hybrid Sungrow SH5.0RT V20 Three-phase 2 MPPT 5KW

The inverter Sun Sun Solar Solar is an ideal team for three-phase residential facilities, thanks to its compact and elegant design. It has the function backup, in addition to being compatible with lithium batteries from the main brands of the market with voltage from 150 to 600V. It has IP65 protection, which makes it resistant to dust and other external contaminants and allows you to install it to the weather. In addition, it has a signaling LED and AC PLUG & PLUY connector either for network or a generator.

This inverter Solar has 2 MPPT to connect photovoltaic (compatible with High power or bifacial) with voltage range between 150 and 950V. Also, you have the possibility to monitor 24 hours solar production as well as visualize the I-V curves remotely.

It is a high performance, safe, reliable and easy-to-install team.

It has a 10-year warranty.



The inverters of Série Sungrow SHRT have the following benefits:

  • It has a wide voltage range of 150 to 600 V for solar batteries.
  • Ideal to renovate and build new facilities.
  • Includes an intelligent PID recovery function which allows reducing the loss of production of the Solar by PID.
  • Real-time information (data update every 10 seconds).
  • Live monitoring 24/7 on an integrated screen and online.
  • Diagnosis and scanning of the IV curve online.
  • Simple installation
  • The configuration is Plug and Play which allows the equipment running quickly and without complications.
  • Compact and lightweight.
  • It has a smooth transition to mode backup To avoid the loss of electricity supply
  • Rapidity in loading and downloading allows you to obtain higher percentage of self-consumption and reduce the consumption of the electricity network
  • Includes EMS with advanced customization.
  • The IsolarCloud platform allows connection to the system, device monitoring, task management, failure management and parameter configuration remotely.

Technical characteristics:

  • Model: Inverter Solar Hybrid Sungrow SH5.0RT V20
  • Maximum power PV: 7500 WP
  • Maximum Tension PV: 1000 V
  • MPPT voltage range: 150 - 950 V
  • MPPT number: 2
  • Strings by MPPT: 1/1
  • Maximum input current: 25A (12,5A / 12,5A)
  • Short circuit current: 32A (16A / 16A)
  • Nominal AC output power: 5000 VA
  • Nominal AC tension: 220/380; 230/400; 240/415 VAC
  • Maximum efficiency / European efficiency: 98/97.2%
  • Range Voltage Battery: 150-600V
  • Current loading / unloading: 30A / 30A
  • Dimensions: 460 * 540 * 170 mm
  • Weight: 27kg
  • Degree of protection: IP65
Power (kW)
3 - 5.9
Battery Voltage (V)
+ 48
Phase Type
Three-phase
MPPT
2
Inverter Type
Hybrid
