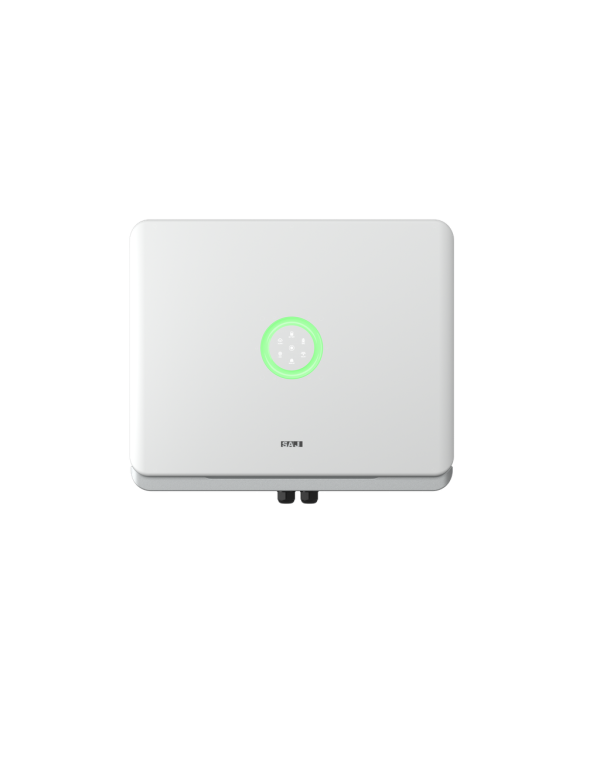

Hybrid inverter SAJ H2-10K-T2
Hybrid inverter SAJ H2-10K-T2 22
Hybrid inverter SAJ H2-10K-T2
Hybrid inverter SAJ H2-10K-T2 22

Inverter solar hybrid SAJ H2-10k-t2

SAJ H2-10K-T2
€1,581.33 €1,860.39 -15%
Tax included

Consult availability

The inverters solar SAJ H2 energy storage use in residential photovoltaic energy storage systems, with peak cutting and filling vallections to maximize the use of photovoltaic energy generation.

The inverter three-phase solar SAJ H2 of 10 kW has 2 MPpt's with a maximum current of 15A for each of them. The inverter SAJ H2 of 10KW supports up to a maximum of 10kWp of solar panel power.

This inverter It allows you to save on residential electricity bills in three-phase installations with solar battery incorporation. In addition, different work modes can be configured according to the different needs of the client. Also these inverters They can provide uninterrupted power for important loading devices with a backup power supply.



The SAJ H2 10KW 2MPTPT 48V is a hybrid Inverter with 2 MPPT to connect 1 string per each, with a maximum input current of 15A / 15A, with a working voltage by MPPT between 180 to 900V. This efficient inverter, allows easy installation in both residential and industrial zones, without transformer and support for wall fixation.

In addition, various protections such as short circuit, overload, DC over revolt, overfire. Among its features, it has LCD screen and communicates by Wi-Fi, GPRS and Ethernet.

  • - Easy configuration for intelligent work modes
  • - Compatible with high intensity modules (up to 15a)
  • - Supports 100% unbalance in three-phase line
  • - Supports Load and quick download of the battery

Model

SAJ H2 10KW 2MPTPT 48V

Entrance (DC)



Max. PV power by array (WP)



15000



Max. DC voltage (V)

1000

Nominal operating voltage DC (V)

600

Max. Input Intensity by MPPT

15/15

Max. Short circuit intensity by MPPT

18/18

Range of Tension MPPT (V)

180-900

Operating start voltage (V)

180

Number of Followers MPPT

2

Strings per follower MPPT

1

Departure (AC)



Nominal AC (VA) power

10000



Max. Power AC (VA)

11000

Nominal network voltage (AC tension range) (V)

220, 230, 240

Nominal Network Frequency / Range (Hz)

50/60

Network Range (V)

380/400

Max. Intensity AC

16.7

Displacement of the power factor

0.8 Leading - 0.8 Lagging

THDI, power ratio (%)

EFFICIENCY



Euro Efficiency (%)

97.6

Efficiency Max. (%)

98

PROTECTIONS



Ground protection

YES

Reverse polarity protection

YES

DC switch

YES

Environmental limits



Degree of proaection (based on IEC60529)

Ip65

Operating temperature range (ºC)

-40; +60

Max. Operation altitude (M)

Humidity (%)

0-100 (Non-Condensation)

Storage temperature (ºC)

-30; +60

Typical noise emission (DB)

Dimensions and weight



Dimensions (WXHXD) (mm)

433 * 549 * 207

Weight (kg)

25

Ventilation type

Natural

Type

Transformer

Communications interface

CAN / RS485 / DRM / RS232

LCD DISPLAY

LED + App

Standard Guarantee (Years)

5/10/15/20
Power (kW)
10 - 14.9
Short Circuit Current Isc (A)
17 - 17.99
Phase Type
Three-phase
Max Current Input (A)
15 - 15.99
