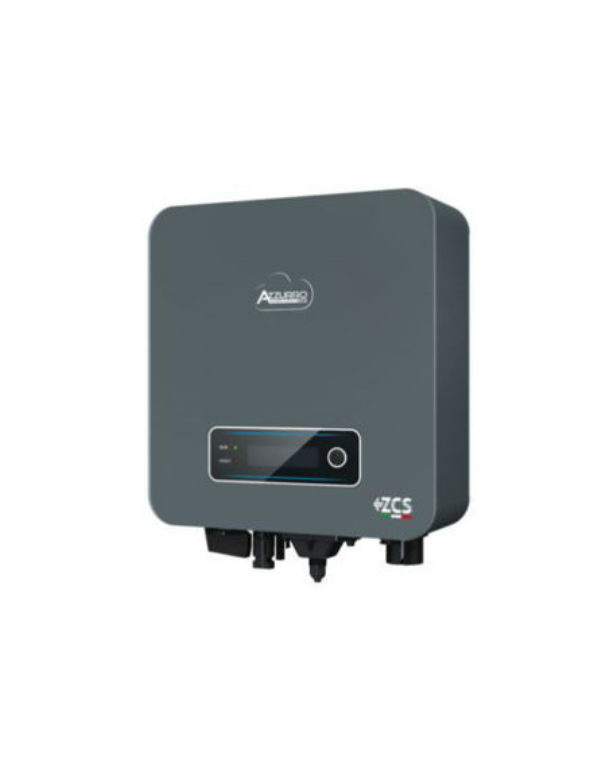

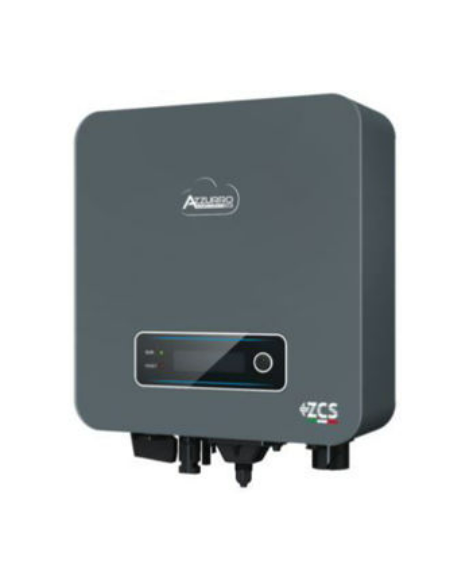

Inverter Solar ZCS Azzurro 3000TL-V3 | Inverter 3KW single-phase Lite

Inverter ZCS Azzurro 3000TL-V3: Optimal and compact performance for residential self-consumption

Taking the jump towards solar energy in homes with simple covers requires components that eliminate technical complexities and ensure a rapid investment return. The inverter solar ZCS Azzurro 3000W it responds accurately to these facilities, becoming the technological heart in charge of transforming the energy of your solar plates into electricity ready for the consumption of your appliances in real time.

Lite design with smart zero injection

The serie TL-V3 Lite it focuses its engineering efforts to maximize efficiency and simplify installation on roofs with a single shadow-free orientation. By integrating an advanced MPPT tracker, the inverter squeeze each ray of sun stabilizing the production of the string of , admitting a typical entry power in a continuous current of up to 3300W.

On Tienda Solar we know how important it is to adapt to current network regulations. Therefore, the ZCS Azzurro 3000TL-V3 is prepared to activate the function of zero or limited injection to the commercial network. To make use of this intelligent advantage, it is only necessary to attach a compatible external vattimeter and the ZST-ACC-TR power measuring, allowing you to control whether you export energy or if you intend exclusively to the instantaneous consumption of your home.

Advanced Security, Touch Screen and Free Monitoring

Reliability and housing protection are fundamental pillars on this 3KW equipment. It has a robust integrated security package that incorporates anti-island protection, residual current monitoring (RCMU) and a ground insulation failure detector. In addition, to perform maintenance tasks comfortably and 100% safe, it includes a factory drinking switch in continuous current in the lower area of the chassis.

The daily interaction with the equipment is extremely intuitive thanks to its frontal LCD touch screen, designed to visualize the operating parameters without using external devices. Additionally, using its WiFi connection and its optional compatibility with 4G or Ethernet modules, the inverter it connects directly to the mobile application and the official website of Azzurro ZCS. From there, you can review historical generation, power flows and the performance of your photovoltaic plates from anywhere. Its ultralight housing has IP65 protection certification, allowing a quick-type assembly type and PLAY both inside the house and the weather.

Technical specifications (3000tl-v3 model):

Input parameters (DC current):

• Typical recommended CC power: 3300 W

• Number of MPPT followers: 1

• Maximum voltage of entry in CC: 550 V

• Nominal input voltage in CC: 360 V

• Nominal input current by MPPT: A.m

• Maximum input current by MPPT: 15 a

Output parameters (AC current):

• Nominal AC power: 3000 W

• Maximum output power: 3000 VA

• Maximum output current CA: 14.5

• Type of connection to the electrical network: Monophasic (line / neutral / land)

• Compatible output voltages: 220 V, 230 V, 240 V

Efficiency and general physical data:

• Maximum efficiency Inverter: 97,7%

• Serial protections: Anti-Isla System, RCMU leak monitoring, Ground Fault protection and integrated CC cutting switch

• Standard Communications: RS-485 connection

• Optional communications: Datalogger WiFi, 4G Modem or Ethernet Network Card

• Degree of protection of the envelope: IP65 (suitable for outdoor and interior mounting)

• Dimensions of the team: 321 x 260 x 131 mm

• Standard warranty: 5 years of factory

Frequently Asked Questions (FAQ)

1. For what kind of housing is the inverter 3KW Azzurro ZCS? It is especially recommended for single-family homes, floors with cover space or small shops that have concentrated daytime consumption and whose roofs allow us to guide all the solar to the same direction (for example, south orientation) to make the most of its only MPPT.
2. What happens if my roof has two different orientations? When having a single MPPT, if you connect with cross-orientations (like east and west) in the same string, the panel with less radiation will limit the performance of others. If your cover requires two different orientations, we advise you to review the 5000tlm-v3 model of the Azzurro range, which incorporates two independent MPPT to manage double covers.
3. Is it mandatory to buy the zero pouring kit to work the inverter? No, it is not mandatory. The inverter will work perfectly from the first day injecting all the energy left over to the electrical network if you have a surplus compensation contract. The vatimeter and the ZST-ACC-TA clamp are only necessary if you want to limit or completely prohibit the export of energy to the street.
4. How is the wireless connection done to see the data on your mobile? The equipment allows you to attach a WiFi module in its communication port quickly. Once connected, you can scan the inverter through the official AZZURRO ZCS app to match it with your home's Internet network and start registering your savings data on the cloud portal.
