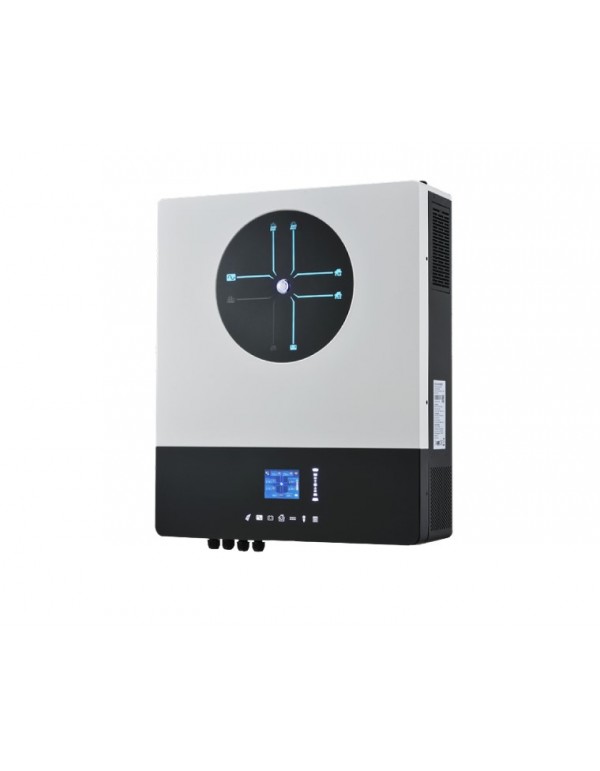

Inverter Solar Hybrid Axpert Ultra | 11kw | 48v

[OFF1307]
€1,143.45
Tax included

It is a inverter multifunction that combines functions of inverter, Solar charger and battery charger to offer an uninterrupted power bracket in a single package. The complete LCD screen offers operations by using the user-configurable buttons and easily accessible, such as the battery charge current, the AC loading priority or solar and the acceptable input voltage according to the different applications.



The inverters family solar Inverter Solar Hybrid Axpert Ultra | 11kw | 48V are characterized by the following:

  • - Two outputs for intelligent load management
  • - Two independent AC power supplies connected and switched automatically
  • - Integrated current transformer sensor for self-consumption applications
  • - Supports BTS experimental detection (battery temperature sensor)
  • - Blinking indicators of built-in power status
  • - 2.8 "color LCD screen integrated with sliding operation
  • - Integrated Wi-Fi mobile monitoring and OTA firmware update
  • - Supports the USB function on-the-go
  • - Supports Optional GFCI, fast shutdown, AFCI detections
  • - Parallel operation with 6 units

Technical sheet:

Model

Axpert Ultra | 11kw | 48v

Nominal power

11000 VA / 11000 W

Parallel capacity

Yes, 6 units

Entrance



Voltage

230 a. C.

Selectable voltage range

170-280 VAC (for personal computers)

90- 280 VAC (for appliances)

Frequency range

50 Hz / 60 Hz

Exit



AC voltage regulation (Batt. Mode)

230 VAC +/- 5%

The power emerges

22000 VA

Efficiency (peak)

93%

Transfer time

10 ms (for personal computers); 20 ms (for appliances)

Wave

Pure sinusoidal wave

DC Voltage

12 VCC +/- 5%, 100W

Drums



Battery voltage

48 VCC

Floating load voltage

54 VCC

Overload protection

63 VCC

Solar charger and AC charger



Solar charger type

11000 (5500 W x 2)

Maximum power of the photovoltaic matrix

90 - 450 Vdc

MPPT Range @ Operating Voltage

500 VCC

Maximum Voltage of open matrix open circuit

27A x 2

Solar load current maxmum

                             150 a

Maximum AC load current

150 a

Maximum load current

150 a

Physical



Dimension, d x w x h (mm)

145 x 438 x 553.6

Net weight (kgs)

18.4

Communication interface

USB / rs232 / rs485 / WiFi / dry-contact

Operating environment



Humidity

5% to 95% relative humidity

Operating temperature

-10 ° C to 50 ° C

Storage temperature

-10 ° C at 60 ° C

Standard



Compliance security

EC

Power (kW)
10 - 14.9
Phase Type
Single phase
Max Current Input (A)
15 - 15.99
Compatibility list
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
Turbo Energy (Slim)
