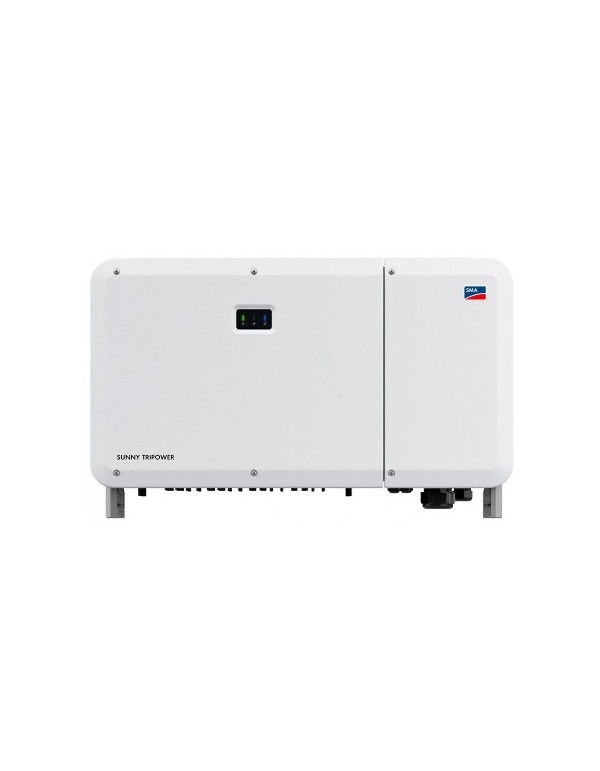

Inverter Solar SMA Sunny Tripower Core2 110kw
SMA-ST-CORE2-110
€5,203.00
Tax included
Inverter Three-phase solar for self-consumption network of network SMA of 110000W AC with 12 MPPT with an efficiency of 98.6% and a maximum input current of 26 a per inlet with convection cooling. The Sunny Tripower line stands out for its variety of configurations, its wide range of MPPT voltage and its lightweight and compact structure.
Resistant to short circuits, overloads and high temperatures, will provide trouble-free operation of its three-phase solar installation for many years. Inverter Network connection for solar installations with excellent value for money. It does not include transformer and offers IP65 protection.
Product guarantee of 5 years.
The inverters Sunny Sunny Tripower Solar stand out for the following characteristics:
- - Compact design inverter to occupy less space
- - Perfect for large facilities arranged on the roof that can reach the range of MW in open field
- - Maximized performance using technology SMA Shadefix
- - Energy management using ennex technology
- - Use of excess energy by dynamic limitation of active power
Technical data:
|
Model
|
Sunny Tripower Core2
|
|
Entrance (CC)
|
|
|
Maximum power. Ad
|
165 kW
|
|
Maximum voltage Entrance
|
1100v
|
|
Range of Voltage MPP
|
500 - 800 V
|
|
Minimum / initial input voltage
|
200 V / 250 V
|
|
Maximum current input
|
26 a
|
|
Max. CC short circuit current
|
At
|
|
Number of independent MPP entries / chains per input MPP
|
12/2 |
Departure (CA)
Power
110 kW
Max. apparent power
110 kva
Nominal AC voltage
400 V
AC voltage range
320 - 460 V
Frequency / AC power range
50 Hz / 45 Hz - 55 Hz
Nominal network frequency
50hz
Max output current
At
Power phases / connection phase
3/3
Efficiency Max. / European efficiency
98.6% / 98.4%
Protection class (IEC 61140)
III / II / II
SPD
CC Type II / CA Type II
General data
Dimensions (W x H X D)
1117 x 682 x 363 mm
Weight
93.5 kg
- Power (kW)
- + 30
- Phase Type
- Three-phase
- Max Current Input (A)
- 20+
