Inverter Solar Growatt Max 100ktl3-x lv
Growatt MAX [I]
€5,180.00
Tax included
Delivery time of approximately 6 days
Inverter Solar connection network Growatt of 100ktl three-phase.

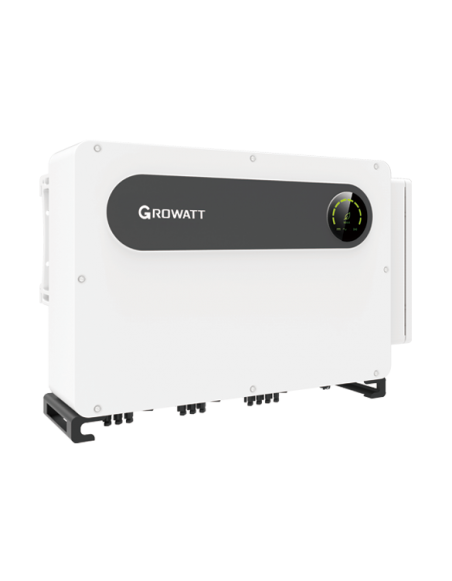

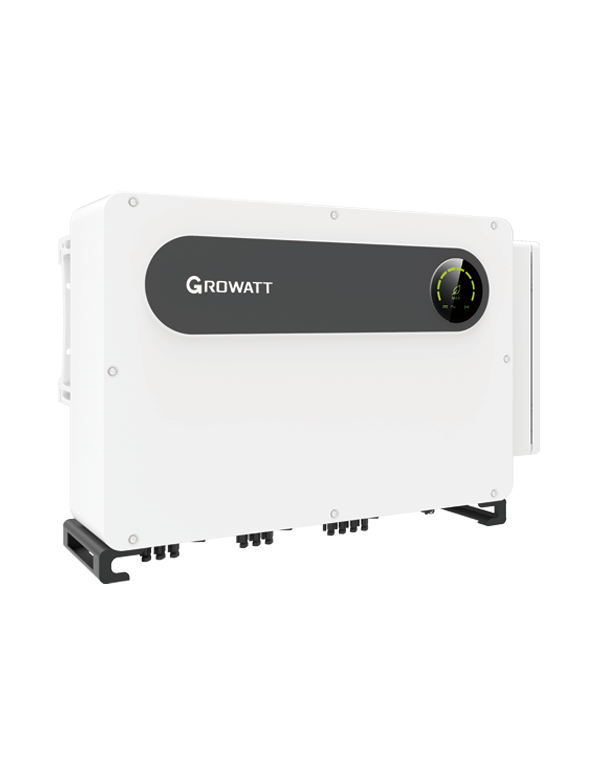

The inverter three-phase Growatt Max 100ktl3-x lv is a great inverter Three-phase connected to a network that can deliver up to 100000W power and integrates 10 MPPT load regulators. Be a inverter Three-phase, is prepared to work connected to three-phase networks with 3 phases and neutral. Has one of the highest efficiencies that exist in inverters, with 98.8%, thanks to which we will obtain the best performance of our photovoltaic installation.
With an 180V-1000V MPPT voltage range, the inverter You can start working first in the morning and turn off at the late afternoon, perform a longer time and thus generate more solar energy.
General characteristics of the inverter:
- -Altos yields. Multi MPPT design, up to 10 MPPT, compatible with high power modules, CC / CA ratio of up to 1.5
- -Following and reliability optional: AFCI protection (arc failure circuit switch) SPD (Overvoltage protection device) of Type II on the Spees of DC and IP Protection Bug 66
- - optimal electricity, compatible with cables (CA) of AI and CU, connection of CC 2 in 1, communication with programmable automaton (PLC) optional
Technical sheet
|
Model |
Max 100ktl3-x lv |
|
Maximum ticket power (W) |
100.000w |
|
Nominal input voltage (V) |
32A MPPT |
|
Start voltage (V) |
195 V |
|
Maximum input voltage (V) |
32A in MPPT |
|
Maximum input current (A) |
32 a |
|
Short-circuit current (A) |
At |
|
Maximum output power (W) |
158,8a |
|
Nominal exit voltage (V) |
230v / 400v (340-440vac) |
|
Departure frequency (Hz) |
50/60 Hz (45 ~ 55Hz / 55-65 Hz) |
|
Temperature operating range (ºC) |
-30 ° C - + 60 ° C |
|
Max output current (A) |
158.8a |
|
Protections |
Integrated |
|
Weight package (kg) |
84kg |
- Power (kW)
- + 30
- Phase Type
- Three-phase
- Max Current Input (A)
- 20+
