List of products by brand Growatt
Growatt is a manufacturer of inverters and energy storage solutions of Chinese origin founded in 2011 in the city of Shenzhen. It has more than 650 professional R+D engineers and despite its relatively recent foundation is one of the 10 main manufacturers of solar inverters in the world competing with major brands such as SMA, Power Electronics, Huawei or SunGrow. Today (2021) Growatt has become the world's largest supplier of residential investors.
Growatt solar inverters are technically sophisticated, robust, quality components and all at very competitive prices. Growatt products have been subjected to a rigorous five-step quality control system in order to guarantee an excellent degree of reliability, quality and pass a series of very strict standards.
In addition, Growatt has an efficient, competent local technical support service that has earned it a good reputation in the solar inverter market. These are the main reasons that have made GoodWe become one of the first brands in such a short time. GoodWe has more than 43 own offices around the world that assure its customers an efficient service and quality which translates into a higher performance of the plant and a first level after-sales service.
Growatt designs and manufactures string solar inverters with powers from 0.75kW to 125kW. With these powers, the solutions offered by Growatt can cover small residential installations (up to 15kW) and medium-sized industrial commercial installations (from 15kW to 100kW).
For residential and commercial applications, Growatt highlights the solar inverter lines of the single-phase MIC-X and MIN-X/XH series and the MOD-X/XH series for three-phase solar installations. The single-phase line Growatt MIC-X has an MPPT (maximum power point tracking), the single-phase line of Growatt MIN-X/XH and three-phase MOD-X/XH have two MPPT.
Remember that the number of MPPTs allows us to mount panels with different orientations or inclinations in each branch, without affecting the overall performance, each tracker seeking the maximum power available at each moment of the photovoltaic field connected to it.
Within Growatt's single-phase solar inverters, the MIC-X series is specially designed for residential solar installations and stands out for its small size (the same as that of a sheet of paper), its low weight (6.2kg) and its silent operation. This small solar inverter (between 0.75kW to 3.3kW) can be connected up to 30% more power from solar panels, thus optimizing its nominal AC power, reaching efficiencies of up to 97.6%. With LAN, 4G, Link or Wifi connection, the production of this solar inverter can be monitored from anywhere and at all times.
The MIN-X/XH Series also designed for small single-phase and commercial residential solar installations goes a little further than its MIC-X alternative. The solar inverters of the MIN-X/XH series (with powers between 2.5 and 6 kW) are specially prepared for the use of batteries, it also offers more nominal power than its alternative. And, unlike its alternative, it has two MPPT followers instead of one. These characteristics make it especially interesting in locations with low radiation and with an extra need to oversize the self-consumption solar installation with more solar panels. The MIN-X/XH series supports all types of communication in order to monitor the installation from anywhere and at all times.
The three-phase Growatt MOD-X/XH series is a great proposition at a very competitive price. With powers ranging between 3kW and 15kW these inverters with 2 MPPT's make them very dynamic, efficient and flexible before any design of solar installation for self-consumption. One of the great advantages of having 2 MPPT's is the possibility of mounting solar panels on different roofs with different orientations without losing inverter efficiency. The MOD XH series between 3 and 10kW support the use of batteries. These solar inverters are lightweight, small and can be installed indoors and outdoors while always maintaining their maximum efficiency of 98.6%. Without a doubt a great option available with one of the best brands on the market.
Within its product lines for self-consumption with isolated storage, that is, self-consumption with off-grid batteries, the Growatt SPF ES, SPF HVM/DVM-G2 and SPF HVM lines stand out. With solar inverter powers of between 3 and 12 kW, they allow storage in 48V batteries, whether lithium, lead or gel (consult accepted models). Additionally it has 2 MPPT trackers, which makes the configuration possibilities multiple. Considering, in addition, that it allows us to connect up to 6 units in parallel and that the inverter allows remote monitoring of the installation, it becomes an optimal solution, both technical and economic, for almost any self-consumption installation with isolated storage.
Growatt is a recent brand in the sector that through its quality products and offering cheap solar inverters has been able to lead the installation of residential solar energy globally. For residential and commercial self-consumption solar installations it is undoubtedly a very competitive and interesting option.
From Tienda-Solar we are aware of these qualities and it is for this reason that we have incorporated their products (mainly solar grid-connected inverters) in our catalog. For more information see https://tienda-solar.es/es/1924-inversores-solares

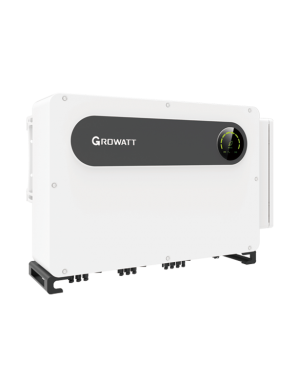

Inverter Growatt MAX 100KTL3-X LV Three-phase
Delivery time of approximately 6 days
Inverter Growatt MAX 100KTL3-X LV Three-phase
The Growatt MAX 100KTL3-X LV three-phase inverter is a large three-phase grid connected inverter that can deliver up to 100000W of power and integrates 10 MPPT charge controllers. Being a three-phase inverter, it is prepared to work connected to three-phase grids with 3 phases and neutral. It has one of the highest efficiencies that exist in inverters, with 98.8%, thanks to which, we will get the best performance of our photovoltaic installation.
With an MPPT voltage range of 180V-1000V, the inverter can start working earlier in the morning and shut down later in the afternoon, realize longer running time and thus generate more solar power.
Hybrid Solar Inverter Growatt SPH 6000TL-XH- 48V single phase
This inverter provides up to SPH 6000TL-XH- 48V of output power. Max. 98.4% efficiency. They are also compatible with lithium batteries so they can be installed together. 5 years warranty with the possibility of extension to 10 years, subject to manufacturer\'s conditions.
Regarding the Growatt SPH 6000TL-48V inverter, it should be noted that it has numerous electrical protection systems that make it one of the safest domestic inverters for solar consumption at home. Its main features include polarity inversion, anti-islanding protection, over current, short-circuit and over voltage protection, excessive temperature rise, among others. This inverter is guaranteed for 5 years and can be extended up to 10 years.
Hybrid Solar Inverter Growatt SPH 5000TL-XH- 48V single phase
This inverter provides up to SPH 5000TL-XH- 48V of output power. Max. 98.4% efficiency. They are also compatible with lithium batteries so they can be installed together. 5 years warranty with the possibility of extension to 10 years, subject to manufacturer\'s conditions.
Regarding the Growatt SPH 5000TL-48V inverter, it should be noted that it has numerous electrical protection systems that make it one of the safest domestic inverters for solar consumption at home. Its main features include polarity inversion, anti-islanding protection, over current, short-circuit and over voltage protection, excessive temperature rise, among others. This inverter is guaranteed for 5 years and can be extended up to 10 years.
Hybrid Solar Inverter Growatt SPH 4600TL-XH- 48V single phase
This inverter provides up to SPH 46000TL-XH- 48V of output power. Max. 98.4% efficiency. They are also compatible with lithium batteries so they can be installed together. 5 years warranty with the possibility of extension to 10 years, subject to manufacturer\'s conditions.
Regarding the Growatt SPH 4600TL-48V inverter, it should be noted that it has numerous electrical protection systems that make it one of the safest domestic inverters for solar consumption at home. Its main features include polarity inversion, anti-islanding protection, over current, short-circuit and over voltage protection, excessive temperature rise, among others. This inverter is guaranteed for 5 years and can be extended up to 10 years.
Hybrid Solar Inverter Growatt SPH 3000TL-XH- 48V single phase
This inverter provides up to SPH 3000TL-XH- 48V of output power. Max. 98.4% efficiency. They are also compatible with lithium batteries so they can be installed together. 5 years warranty with the possibility of extension to 10 years, subject to manufacturer\'s conditions.
Regarding the Growatt SPH 3000TL-48V inverter, it should be noted that it has numerous electrical protection systems that make it one of the safest domestic inverters for solar consumption at home. Its main features include polarity inversion, anti-islanding protection, over current, short-circuit and over voltage protection, excessive temperature rise, among others. This inverter is guaranteed for 5 years and can be extended up to 10 years.
Hybrid Solar Inverter Growatt MIN 6000TL-XH- single phase
This inverter provides up to 6000W of output power. Max. 98.4% efficiency. They are also compatible with lithium batteries so they can be installed together. 5 years warranty with the possibility of extension to 10 years, subject to manufacturer\'s conditions.
Regarding the Growatt MIN 6000TL-XH inverter, it should be noted that it has numerous electrical protection systems that make it one of the safest domestic inverters for solar consumption at home. Its main features include polarity inversion, anti-islanding protection, over current, short-circuit and over voltage protection, excessive temperature rise, among others. This inverter is guaranteed for 5 years and can be extended up to 10 years.
Hybrid Solar Inverter Growatt MIN 5000TL-XH- single phase
This inverter provides up to 5000W of output power. Max. 98.4% efficiency. They are also compatible with lithium batteries so they can be installed together. 5 years warranty with the possibility of extension to 10 years, subject to manufacturer\'s conditions.
Regarding the Growatt MIN 5000TL-XH inverter, it should be noted that it has numerous electrical protection systems that make it one of the safest domestic inverters for solar consumption at home. Its main features include polarity inversion, anti-islanding protection, over current, short-circuit and over voltage protection, excessive temperature rise, among others. This inverter is guaranteed for 5 years and can be extended up to 10 years.
Hybrid Solar Inverter Growatt MIN 4200TL-XH- single phase
This inverter provides up to 4200W of output power. Max. 98.4% efficiency. They are also compatible with lithium batteries so they can be installed together. 5 years warranty with the possibility of extension to 10 years, subject to manufacturer\'s conditions.
Regarding the Growatt MIN 4200TL-XH inverter, it should be noted that it has numerous electrical protection systems that make it one of the safest domestic inverters for solar consumption at home. Its main features include polarity inversion, anti-islanding protection, over current, short-circuit and over voltage protection, excessive temperature rise, among others. This inverter is guaranteed for 5 years and can be extended up to 10 years.
Hybrid Solar Inverter Growatt MIN 3000TL-XH- single phase
This inverter provides up to 3000W of output power. Max. 98.4% efficiency. They are also compatible with lithium batteries so they can be installed together. 5 years warranty with the possibility of extension to 10 years, subject to manufacturer\'s conditions.
Regarding the Growatt MIN 3000TL-XH inverter, it should be noted that it has numerous electrical protection systems that make it one of the safest domestic inverters for solar consumption at home. Its main features include polarity inversion, anti-islanding protection, over current, short-circuit and over voltage protection, excessive temperature rise, among others. This inverter is guaranteed for 5 years and can be extended up to 10 years.
